Array electronic TC-Pro481 Series User Manual

Multifunctional lcd digital counter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Ver:3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC-Pro481 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Array electronic TC-Pro481 Series

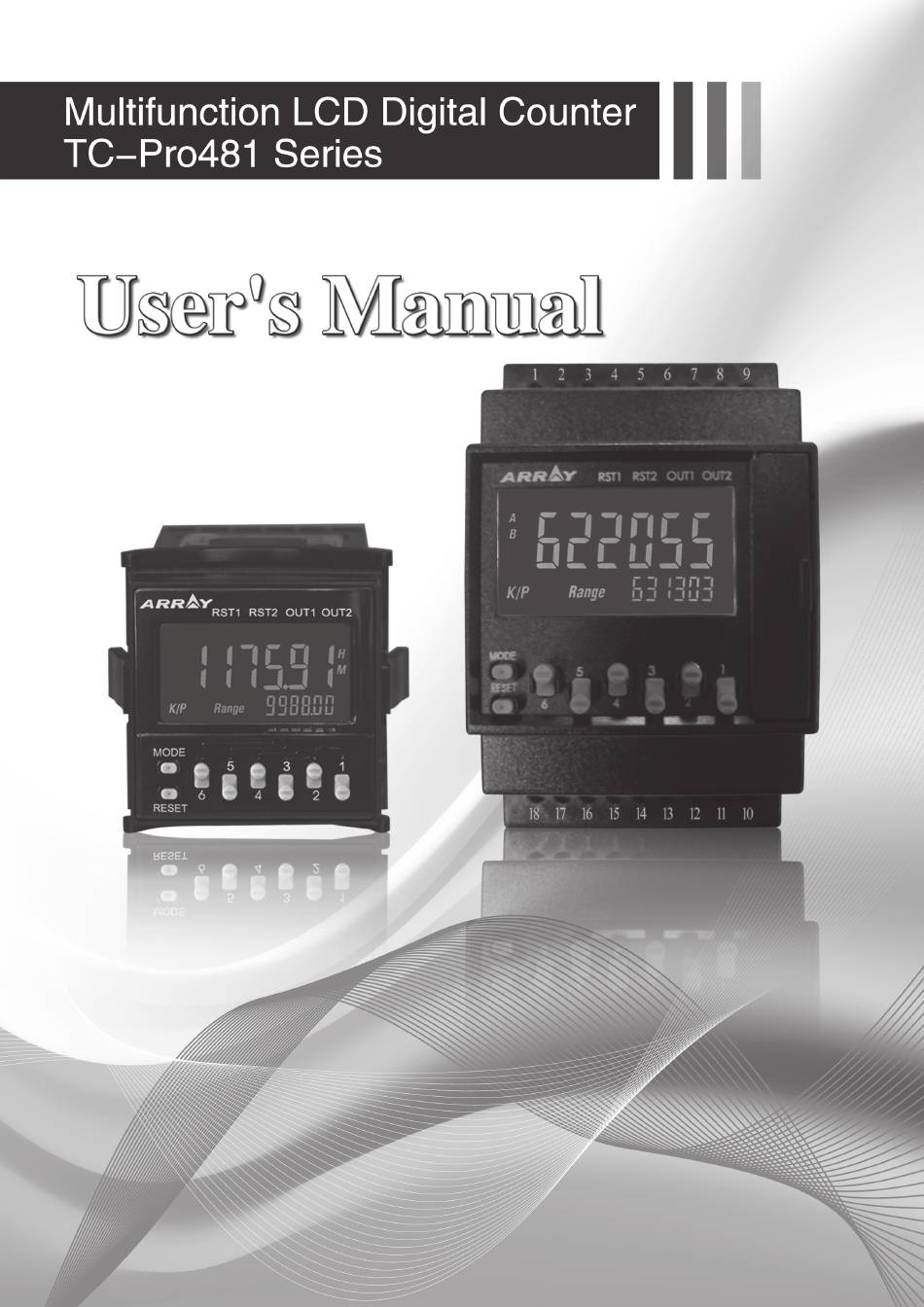

  • Page 1 Ver:3.0...

  • Page 2: Table Of Contents

    Multifunction LCD Digital Counter Multifunction LCD Digital Counter TC-Pro481××× Highly visible display with backlit negative transmissive LCD ■ Visual alert when output status changes ■ PNP/NPN switchable DC-voltage input ■ Finger-safe terminals(screw terminal block models) ■ Three-language instruction manual ■ Applied to connect PC/HMI ■...

  • Page 3: Model Number Structure

    Multifunction LCD Digital Counter Model Number Structure List of Models ■ Model Output type Supply voltage Standard Communication 100~40 VAC TC-Pro481SRA (-D) TC-Pro481CRA (-D) Contact output 4 VDC/4 VAC TC-Pro481SRD (-D) TC-Pro481CRD (-D) 100~40 VAC TC-Pro481STA (-D) TC-Pro481CTA (-D) Transistor output 4 VDC/4 VAC TC-Pro481STD (-D) TC-Pro481CTD (-D)

  • Page 4: Specifications

    Multifunction LCD Digital Counter Specifications Ratings ■ Item TC-Pro481□□□-□ Classification Digital counter Supported -stage counter, 2-stage counter, total counter, batch counter, dual counter, and tachometer configurations (selectable) Rated supply voltage 00~240VAC (50/60Hz), 24VAC (50/60Hz),24VDC (permissible ripple:20% (p-p) max.) Operating voltage 85% to 0% rated supply voltage (24VDC;...
  • Page 5 Multifunction LCD Digital Counter Characteristics ■ Item TC-Pro481□□□-□ Mechanical: 0,000,000 operations min. Life expectancy Electrical: 00,000 operations min. (5 A at 250 VAC, resistance load) (EMI) EN6326 Emission Enclosure: EN550 Emission AC mains: EN550 (EMS) EN6326 Immunity ESD: EN6000-4-2 Immunity RF-interference: EN6000-4-3 Immunity Conducted Disturbance: EN6000-4-6...

  • Page 6: Nomenclature

    Multifunction LCD Digital Counter Nomenclature Reset Indicator The Fourth Setting Key Control Output Indicator The Fifth Setting Key Present Value (character height: 9 mm) The Sixth Setting Key Set Value (character height: 4 mm) Reset Key (resets present value and output) The First Setting Key Mode Key (changes modes and setting items) The Second Setting Key...
  • Page 7 Multifunction LCD Digital Counter Block Diagram ■ Output circuit Basic isolation Display circuit Input circuit Internal control circuit Key switch circuit Basic isolation Power supply circuit I/O Functions (Counter) ■ In general (except for dual counter mode) Reads counting signals Increment, decrement, command, individual, and quadrature inputs accepted.
  • Page 8 Multifunction LCD Digital Counter I/O Functions (Tachometer) ■ CP, CP2 Reads counting signals. (CP2 input is not used) Inputs Holds the measurement value and outputs. (CP2 input is not used) RESET, RESET2 The reset indicator is lit during hold. Outputs signals according to the specified output mode when a set value Outputs OUT, OUT2 is reached.

  • Page 9: Operating Procedures

    Multifunction LCD Digital Counter Operating Procedures 1-stage/2-stage/Total/Batch/Dual Counter/Tachometer Selection Mode ■ Power ON Note: when the mode is changed to 1-stage/2-stage/total/ batch/dual counter/tachometer selection mode, counter will be reset. See note See note 3s min. 3s min. 1-stage counter setting mode (See Run Mode on page 10) 2-stage counter setting mode (See Run Mode on page 10)
  • Page 10 Multifunction LCD Digital Counter Communication Format Function Selection Mode ■ Power ON Note: Counter will reset when changing into the communication format setting mode during operation See note See note 3s min 3s min Set the transmision speed with Transmission Speed Transmission speed:1200,2400,4800,9600,14400,19200,28800,38400,57600bps Set the parity check with...
  • Page 11 Multifunction LCD Digital Counter Key Protection Setting Mode ■ Power ON Note: the forecast setting value is not changed if the mode is switched to K/P setting mode and returned to Run Mode during operation. See note See note 3s min. 3s min.

  • Page 12: Counter Function

    Multifunction LCD Digital Counter Counter Function Setting for Counter Function ■ Power ON (See note 3) when using as a dual counter: Dual counter calculating mode See note 1 See note 2 Note: Displayed for output modes other than K-2, 3s min.
  • Page 13 Multifunction LCD Digital Counter Explanation of functions ■ Input mode (cntm) Input signal width (iflt) Set increment mode(UP)、decrement mode Set Reset input signal width (20ms/ms) for reset/ (DOWN)、or increment/ decrement mode (UP/ reset and total reset/reset2 inputs together. If DOWN A、UP/DOWN B、UP/DOWN C) as the contacts are used for input signals, set the counting input mode.
  • Page 14 Multifunction LCD Digital Counter Operation in Run Mode ■ Set values for each digit as required with the keys. 1-stage Counter Present value: Shows present count value Present value Set value(Set value 1,2): Set the set value. When the present Set value value reaches the set value, signals are output according the specified...
  • Page 15 Multifunction LCD Digital Counter Input Modes and Present Value (Counter) ■ UP (increment) Mode DOWN (decrement) mode Note: UP / DOWN A command input mode If the configuration selection is set to dual count, CP and CP2 input will operate in the same way as the count input (CP) of UP (increment) mode.
  • Page 16 Multifunction LCD Digital Counter Input/Output Mode Setting(Counter) ■ Operation for -stage models is the same as that for (the one-shot output time can be set in the range 0.001to 999.999s) OUT2. Self-holding One-shot One-shot output When using a 2-stage model as a -stage counter, or output dual counter, total and preset counter, OUT and OUT2 turn ON and OFF simultaneously.
  • Page 17 Multifunction LCD Digital Counter Output mode Operation after DOWN UP/DOWN A, B, C count completion The present value display continues to increase/decrease. OUT self-holding output turns OFF a f t e r t h e O U T 2 o n e - s h o t o u t p u t t i m e .
  • Page 18 Multifunction LCD Digital Counter (the one-shot output time can be set in the range 0.001to 999.999s) Self-holding One-shot One-shot output output Output mode Operation after count UP/DOWN A, B, C completion The display continues to increase/ decrease until the overflow or underflow value is reached.
  • Page 19 Multifunction LCD Digital Counter Total Operation ■ TC-Pro48 has a total counter, separate from the -stage present counter, for counting the total accumulated value. the total counter continues to ◆ count the total accumulated value when the present value is reset using reset/reset  input (reset key).
  • Page 20 Multifunction LCD Digital Counter Operation (Dual Counter) ■ Using the dual counter allows the count from 2 inputs to be added or subtracted and the result displayed. It is possible to specify a set value for which output turns ON when the set value matches the added or subtracted result.

  • Page 21: Tachometer Function

    Multifunction LCD Digital Counter Tachometer Function Power ON For details on operation in run mode, refer to page 22. Note: 1. If the mode is switched to the tachometer function setting mode during operation, operation will continue. 2. Changes made to settings in function setting mode are enabled for the first time when the mode is changed to run mode.
  • Page 22 Multifunction LCD Digital Counter Explanation of Tachometer Functions ■ Tachometer output mode (totm) Average processing (aug) Set the output method for control output based on Flickering display and output chattering can be the OUT/OUT2 set value. Upper and lower limit prevented using average processing (simple (HI-LO), area (AREA), upper (HI-HI),and lower limit averaging).
  • Page 23 Multifunction LCD Digital Counter Operation in Run Mode ■ Set values for each digit as required with the keys. Measurement value Displays the currently measured value. OUT1/OUT2 set value Set OUT1 set value and OUT2 set value. The measurement value is compared to OUT1 set value and OUT2 set value and Measurement output is made according to the selected...
  • Page 24 Multifunction LCD Digital Counter Output Mode Settings (Tachometer) ■ (upper-limit) OUT2 set value Measurement value Upper and (Lower-limit) OUT1 set value lower limit (HI-LO) ON condition for OUT1: measurement value≤OUT1 set value ON condition for OUT2: measurement value≥OUT2 set value OUT2 set value Measurement value OUT1 set value...

  • Page 25: Dimensions

    Multifunction LCD Digital Counter Dimensions Note: all units are in millimeters unless otherwise indicated. Dimensions without Flush Mounting Adapter Note: M3 terminal screw (effective length: 8mm) Dimensions with Flush Mounting Adapter Panel Cutouts > > > Note: The mounting panel thickness should be .5 mm. To allow easier operability, it is recommended that adapters are mounted so that the gap between sides with hooks is at least 20mm.
  • Page 26 Multifunction LCD Digital Counter Dimensions Note: all units are in millimeters unless otherwise indicated. Dimensions without DIN Track Mounting Adapter Note: M3 terminal screw (effective length: 8mm) Dimensions without DIN Track Mounting Adapter (with communication)
  • Page 27 Multifunction LCD Digital Counter Installation & Accessories Cable: CAB - 090A□□□(order separately) Cable: CAB - 090B□□□(order separately) Waterproof Packing Flush Mounting Adapter End Plate CABC-44 Mounting Track PR-43 BK-6 0F-A (order separately) ADP-09040 apdater changing 4 into 9 PIN Panel Protective Cover Communication Protective Cover (special between 232, 485 and 422, SVF-A...

  • Page 28: Input Connections

    Multifunction LCD Digital Counter Input Connections Signal, Reset, and Gate Input No-voltage Input Signal Levels Short-circuit level Transistor ON Residual voltage: 3V max. Impedance when ON: 1KΩ min. No-contact (the leakage current is 5 to 20 mA input Internal circuit when the impedance is 0 Ω...
  • Page 29 Multifunction LCD Digital Counter Two-wire Sensor Leakage current: 1.5 mA max. Gate CP1 Switching capacity: 5 mA min. Reset 2 External voltage + Residual voltage: 3 VDC max. Reset 1 Operating voltage: 10 VDC Internal circuit Signal CP2 External voltage - Voltage inputs (PNP inputs) No-contact Input (NPN Transistor) (Connection to NPN open collector output sensor) External voltage +...

  • Page 30: Safety Precautions

    Multifunction LCD Digital Counter Safety Precautions Input and Output Caution When connecting relay and transformer as an √ Do not use the product where corrosive or external signal input device, it is necessary to pay volatile gases are present, or there may attention to the following points to prevent the short occasionally be a risk of explosion.
  • Page 31 Multifunction LCD Digital Counter Transistor Output Operation environment The transistor output of TC-Pro is insulated from the √ Use the product within the rating specified for internal circuitry by a photocoupler, so the transistor submerging in water and exposure to oil. output can be used as both NPN and PNP output.

  • Page 32: Additional Information

    Multifunction LCD Digital Counter Additional Information (Using the operation keys) Counter Operation ■ Power ON 3s min. 3s min. Function setting mode Run mode Communication setting mode 1-stage counter Present value, Transmission speed Input mode set value Dual count calculating mode Parity check 2-stage counter Present value, set value 1...
  • Page 33 Multifunction LCD Digital Counter Tachometer Operation ■ Power ON 3s min. 3s min. Function setting mode Run mode Communication setting mode Tachometer output mode Transmission speed Measurement value Counting speed Parity check Measurement value Decimal point position Date bit OUT1 set value Measurement value Prescale value Stop bit...

  • Page 34: List Of Settings

    Multifunction LCD Digital Counter List of Settings Fill in your set values in the set value column of the following tables and utilize the tables for quick reference. Key protection switch mode Default Parameter name parameter Setting range Unit value value Key protection off/on...
  • Page 35 Multifunction LCD Digital Counter 2-stage counter Default Parameter name parameter Setting range Unit value value Present -99999~999999 value 000000~999999 Screen (For conditions other than those described in 000000 note .) value  -99999~999999 (See note .) Present -99999~999999 value 000000~999999 Screen (For conditions other than those described in 000000...
  • Page 36 Multifunction LCD Digital Counter Dual counter Default Parameter name parameter Setting range Unit value value Dual count -99999~999999 value Screen 000000~999999 000000 Dual (For conditions other than those described in count note 2.) -99999~999999 value (See note 2.) Present -99999~999999 value Screen 000000~999999...
  • Page 37 Multifunction LCD Digital Counter Setting for tachometer operation ■ Run mode Default Parameter name parameter Setting range Unit value value Measurement 000000~999999 000000 value Measurement 000000~999999 000000 value 000000~999999 000000 OUT set value Measurement 000000~999999 000000 value 000000~999999 000000 OUT2 set value Function setting mode Default Parameter name parameter...
  • Page 38 Comparison Table :...
