LI-ION CORDLESS DRILL
ITEM # 47505, 47506, 47507
47505
47506
47507

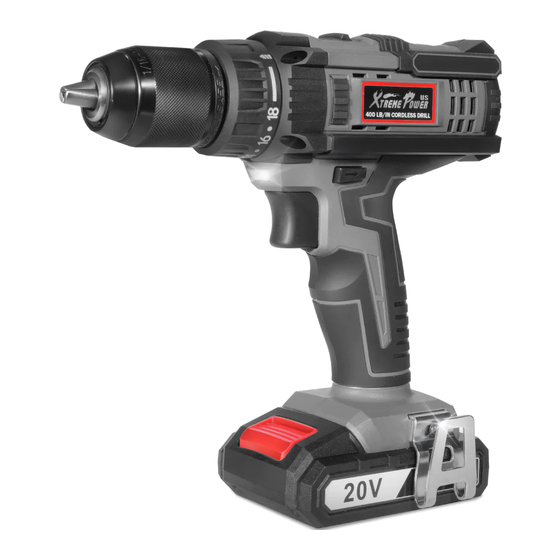

CORDLESS DRILL 400
BRUSHLESS MOTOR
BRUSHLESS
LB/IN
DRILL 500 LB/IN
IMPACT DRILL
MOTOR 336 LB/IN
OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL. KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATION, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL, OR THE MONTH AND YEAR OF PURCHASE IF
PRODUCT HAS NO SERIAL NUMBER
FOR QUESTIONS, PLEASE CALL CUSTOMER SERVICE: 909.628.0880
Advertisement
Table of Contents
Summary of Contents for Xtreme Power 47505
- Page 1 LI-ION CORDLESS DRILL ITEM # 47505, 47506, 47507 47505 47506 47507 CORDLESS DRILL 400 BRUSHLESS MOTOR BRUSHLESS LB/IN DRILL 500 LB/IN IMPACT DRILL MOTOR 336 LB/IN OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL. KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATION, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES.
- Page 2 SAFETY INFORMATION Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in injury and/or property damage. Save all warnings and instructions for future reference. The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur.
- Page 3 SAFETY INFORMATION WARNING! If any part is missing or damaged, do not plug the tool into the power source or install any accessory until the missing or damaged part is replaced. Failure to follow this instruction could result in serious personal injury.
- Page 4 SAFETY INFORMATION • If the tool or charger is damaged in any way. • If the battery is not charged within the time frame as specified in this manual, turn the charger off. • Use the battery charger indoors only. •...
- Page 5 SAFETY INFORMATION • Do not store the Lithium-ion battery anywhere that the temperature can easily reach temperatures higher than recommended (garden sheds, vehicles in direct sunlight etc.) Think before leaving your Lithium-ion battery in storage. •Do not dispose of the battery in a fire, or put the battery into a microwave oven, conventional oven, dryer or high-pressure container, as the battery may explode under these conditions.
- Page 6 SPECIFICATIONS PRODUCT INFORMATION 47505 CORDLESS DRILL 400 LB/IN • No-load rpm (/min): 0-400/0-1400 rpm • Max torque N.m.: 45 • Battery type: Lithium • Battery Capacity: 2000mAh • Charging voltage(V): 110-220 • Battery voltage(V): 20 • Motor: 775# Motor • LED working light: Yes •...
- Page 7 OF NOTE OF NOTE OF NOTE PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
