OZOFRESH AURA OZO-0008 Operation & Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OZOFRESH
ozofresh.co.uk
TM
2
3
AURA
EN Operation & Installation Manual
290-083-00D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AURA OZO-0008 and is the answer not in the manual?

Questions and answers

Summary of Contents for OZOFRESH AURA OZO-0008

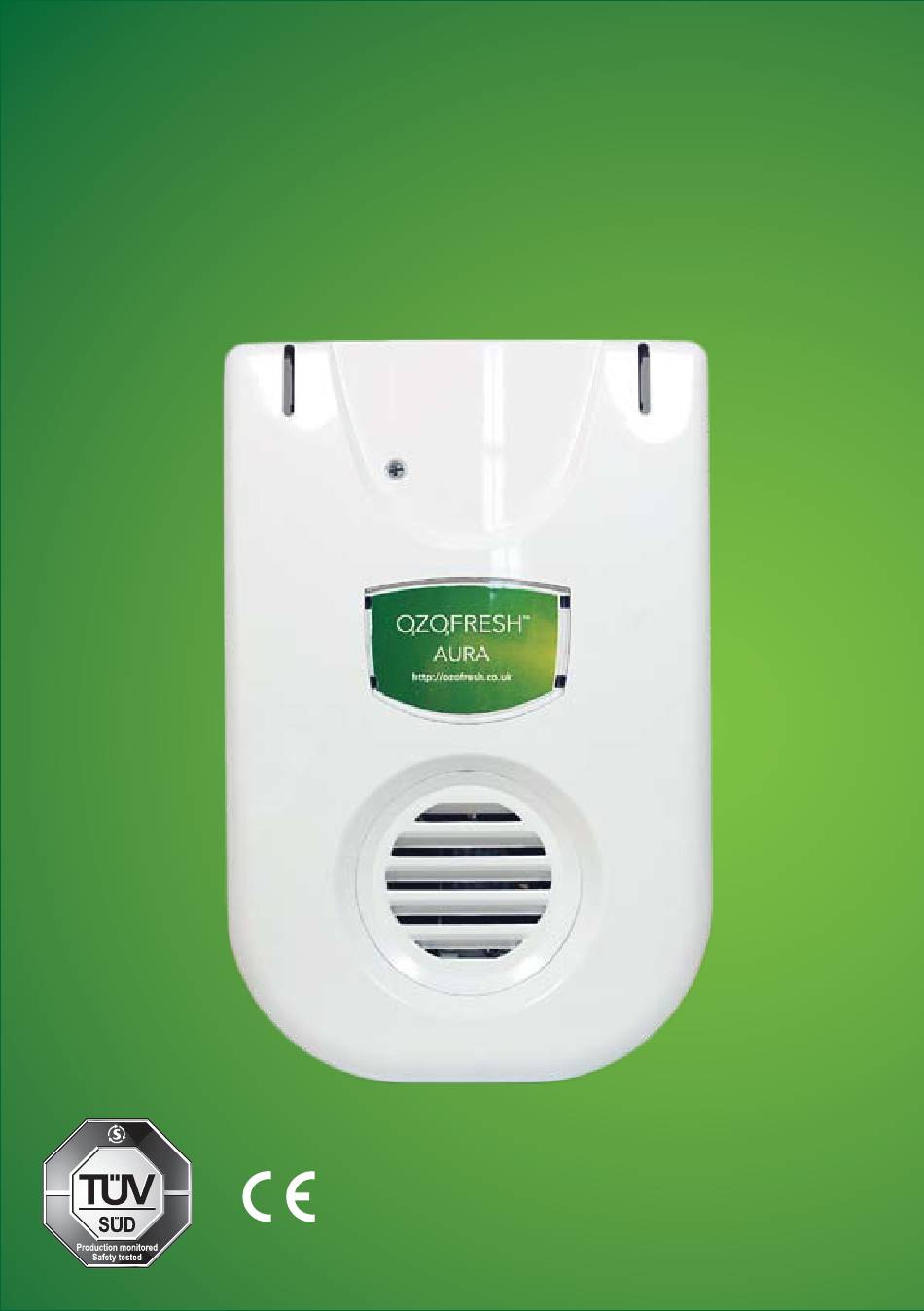

  • Page 1 OZOFRESH ozofresh.co.uk AURA EN Operation & Installation Manual 290-083-00D...
  • Page 2 OZOFRESH AURA Model No. OZOFRESH AURA OZO-0008 Dimensions: 210 x 135 x 85 mm Weight: 1 Kg (approx.) Electrical: 100-240V 50/60 Hz Power 14 W Case: Flame retardant ABS Ozone Output: 2 – 80 mg/hr (+/- 20%) = 2 mg/hr...

  • Page 3: Important Safety Instructions

    4. If the supply cord is damaged, it must be replaced by the manufacturer, 5. Where the unit is required to be installed in occupied areas such as bedrooms, offices, common rooms etc. the OZOFRESH AURA should be installed and programmed to operate at time periods of minimal occupancy 6.

  • Page 4: Selecting A Suitable Location

    SELECTING A SUITABLE LOCATION Use the following guidelines when selecting a suitable location for the unit. • The ozone output cannot be directly inhaled. • Air can circulate around and through the unit. • It cannot be covered accidentally. • There is no risk of water splashing on it.

  • Page 5: Output Settings

    OUTPUT SETTINGS The output chart below is applicable for the following countries: UK, France, Italy, Spain, Finland, Belgium, Greece, Portugal, Czech, Latvia, Lithuania, Malta, Romania, Slovenia and Austria. For other countries see the sizing charts at the end of these instructions. To adjust, switch off the power, open outer cover using key provided.

  • Page 6: Servicing And Maintenance

    SERVICING AND MAINTENANCE Although the OZOFRESH AURA requires only minimal routine servicing it is important that the unit is maintained in accordance with these instructions in order to ensure optimum performance. Failure to service in accordance with these instructions may invalidate the product warranty.
  • Page 7 SERVICING - CERAMIC PLATE / FAN REPLACEMENT Switch off the electrical supply and open the cover by using the key provided. Raise the cover to the parked position. Check the overall condition inside the unit and remove any debris, use a cleaning wipe (Pt. No. PROZWIPE) to clean highlighted surfaces (1) ensuring that all deposits are removed.

  • Page 8: Fault Finding

    In order for the unit to operate it must be connected to a supply and the front cover must be in the closed locked position. In order for the OZOFRESH AURA (Product code: OZO-0008) to operate its internal battery must contain some charge. If the unit has been out of service for some time its internal battery may be discharged.
  • Page 9 PLUG ADAPTER (EU OR UK)
  • Page 10 Please read the full instruction manual before using the below product. (Part No. The OZOFRESH AURA (Product code: OZO-0008 ) 80MG) . AURA OZONE OUTPUT ISOLATE MAINS BEFORE REMOVING THIS COVER Unit has an integral timer. The timer has the facility for 8 programmes a day or group of days.

  • Page 11: Setting The Current Time And Day

    AURA OZONE OUTPUT ISOLATE MAINS BEFORE REMOVING THIS COVER Before use, the present time must be set as follows: SETTING THE CURRENT TIME AND DAY Press ‘CLOCK’ and ‘HOUR’ at the same time for setting Press ‘CLOCK’ and ‘MIN’ at the same time for setting the minute.
  • Page 12 You can set up to eight timer settings (on and off) in one day or group of days. This will give you the same on and off times every day in that group. Alternatively you can have one different on and off time for every day of the week.
  • Page 13 Press ‘PROG’ again for setting the off time. The display will show ‘1 off ‘. Repeat stages 5,6 & 7 to set the off time. (Select the same ‘WEEK’ setting as in 5). Press ‘PROG’ again to enter into the second on/off mode. Repeat stages 4 to 9 for setting all eight programs if required.
  • Page 14 Notes The timer module fitted in the OZOFRESH AURA (Product code: OZO- 0008) the time and any programmes for up to 30 days without external power. If the unit is left disconnected from the electrical supply for more than 30 days the time and any programmes will be lost.
  • Page 15 Sizing Chart: Poland...
  • Page 16 OZOFRESH Watchman Ozone T/A Ozofresh Ozofresh Midlands Office, Unit 50, iCon Environmental Innovation Centre Eastern Way, Daventry, NN11 0QB Telephone Number: +44 844 248 0107 Sales Number: +44 7903 742 373 Email: Info@ozofresh.co.uk Website: http://ozofresh.co.uk ozofresh.co.uk...
