Summary of Contents for Roemheld Hilma HCR-PA-11X10

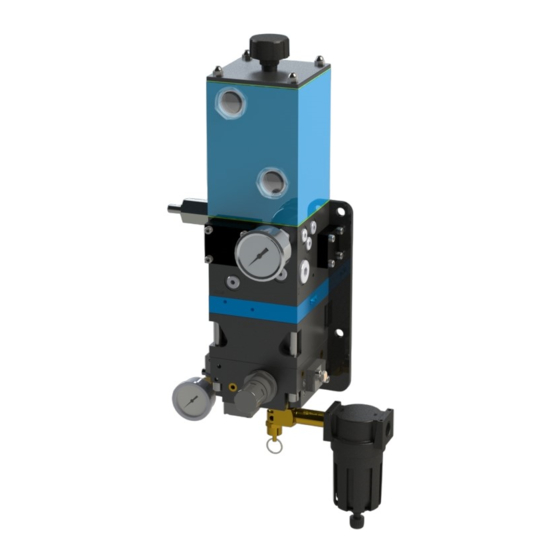

- Page 1 ▪ ▪ HYDRAULIC WORKHOLDING MACHINE VISES ZERO POINT MOUNTING ▪ ▪ QUICK DIE CHANGE QUICK MOLD CHANGE MAGNETIC CLAMPING PRODUCTS FOR ASSEMBLING CARR LANE ROEMHELD MFG. CO. OPERATION AND MAINTENANCE MANUAL HCR-PA-11X10 Power Unit H I L M A...
-
Page 2: Table Of Contents
MACHINE VISES ZERO POINT MOUNTING ▪ ▪ QUICK DIE CHANGE QUICK MOLD CHANGE MAGNETIC CLAMPING PRODUCTS FOR ASSEMBLING CARR LANE ROEMHELD MFG. CO. TABLE OF CONTENTS 1.0 INTRODUCTION PAGE A. The HCR-PA-11X10 Line of Pumps HCR-PA-11X10 Reservoir Versions 2.0 INSTALLATION AND OPERATION A. -
Page 3: Installation And Operation
QUICK MOLD CHANGE MAGNETIC CLAMPING PRODUCTS FOR ASSEMBLING CARR LANE ROEMHELD MFG. CO. SECTION 1.0: INTRODUCTION The HCR-PA-11X10 is the latest concept in hydraulic power units. These Units need no external electrics or plumbing to operate. Just plug in shop air and the unit is ready to go. -
Page 4: Reservoir Filling And Draining
QUICK MOLD CHANGE MAGNETIC CLAMPING PRODUCTS FOR ASSEMBLING CARR LANE ROEMHELD MFG. CO. Air lubrication must NOT be used. At initial startup, the air regulator MUST be turned out completely counterclockwise (CCW) before the supply air source is turned on. -
Page 5: Pressure Switch Setting
QUICK MOLD CHANGE MAGNETIC CLAMPING PRODUCTS FOR ASSEMBLING CARR LANE ROEMHELD MFG. CO. PRESSURE SWITCH SETTING PROCEDURE The pressure switch used on the Hilma air power unit is a standard safety feature for the press. Pressure switches are used to monitor the pressure on system components, and report these pressure signals back to the press controls, specifically the emergency stop circuit or E-stop. -
Page 6: Kick Down Relief Setting
QUICK MOLD CHANGE MAGNETIC CLAMPING PRODUCTS FOR ASSEMBLING CARR LANE ROEMHELD MFG. CO. KICK DOWN RELIEF SETTING *** NOTE *** For 'Kick Down Relief Valve' (RV1) only, be sure an orifice disk is present in the valve cavity faced radius side down before installing a replacement. -
Page 7: Trouble Shooting Guide
QUICK DIE CHANGE QUICK MOLD CHANGE MAGNETIC CLAMPING PRODUCTS FOR ASSEMBLING CARR LANE ROEMHELD MFG. CO. TROUBLE SHOOTING GUIDE If a problem arises with the unit, the following guide should help to make an accurate diagnosis and offer a proper remedy:... -
Page 8: General Assembly
QUICK MOLD CHANGE MAGNETIC CLAMPING PRODUCTS FOR ASSEMBLING CARR LANE ROEMHELD MFG. CO. SECTION 4.0: GENERAL ASSEMBLY This section is provided to a general overview for all the service needs of the HCR-PA- 11X10 line of pumps. An exploded view with Bill of Materials of all parts is included at the back of this manual. -
Page 9: Mounting The Air Cap
QUICK MOLD CHANGE MAGNETIC CLAMPING PRODUCTS FOR ASSEMBLING CARR LANE ROEMHELD MFG. CO. MOUNTING THE AIR CAP TO THE AIR BODY Be sure the Air Cap is fully sub-assembled before mounting it to the Air Body. Place another air body gasket on the Air Body and align to the edges. Place the Air Cap on the Air Body with the Air Regulator adjusting knob in plane with the DO-3 pad on the hydraulic body.
