Audioplex IRZ-1 Installation Manual

Connectors:
Emitter outputs:
Power supply:
Dimensions:
Extra Emitter Jack:
The IRZ-1 provides a convenient zonable connecting point and trouble shooting station for a remote relay system, eliminating hard-
wiring. Each room has it's own screw-down connector for the IRTarget, each emitter and the power supplies have their own plug-in
jacks. Every IRBug(Stick-emit) or IRFlood(TBW) has it's own visible LED which flashes to verify operation. Follow the wiring
diagram below for basic set up. To create specific zones use the wiring diagram on the back of this page.
The IRZ-1 includes a jack for an optional 12vdc wall adapter. By plugging the adapter into your receiver's switched AC outlet, you
will provide SYS-TAT power whenever the receiver is turned on.
INSTALLATION MANUAL
Zonable termination and trouble-shooting point for IR repeating systems
TO BE USED WITH AUDIOPLEX BRAND IR ONLY!
Screw-type
(7) 1/8" mini-jacks
+12vdc power supply, unregulated (included)
6.75"H x 1.625"W x 1"D
Allows for an extra Emitter (or 4 extra emitters using the Audioplex IRS-1).

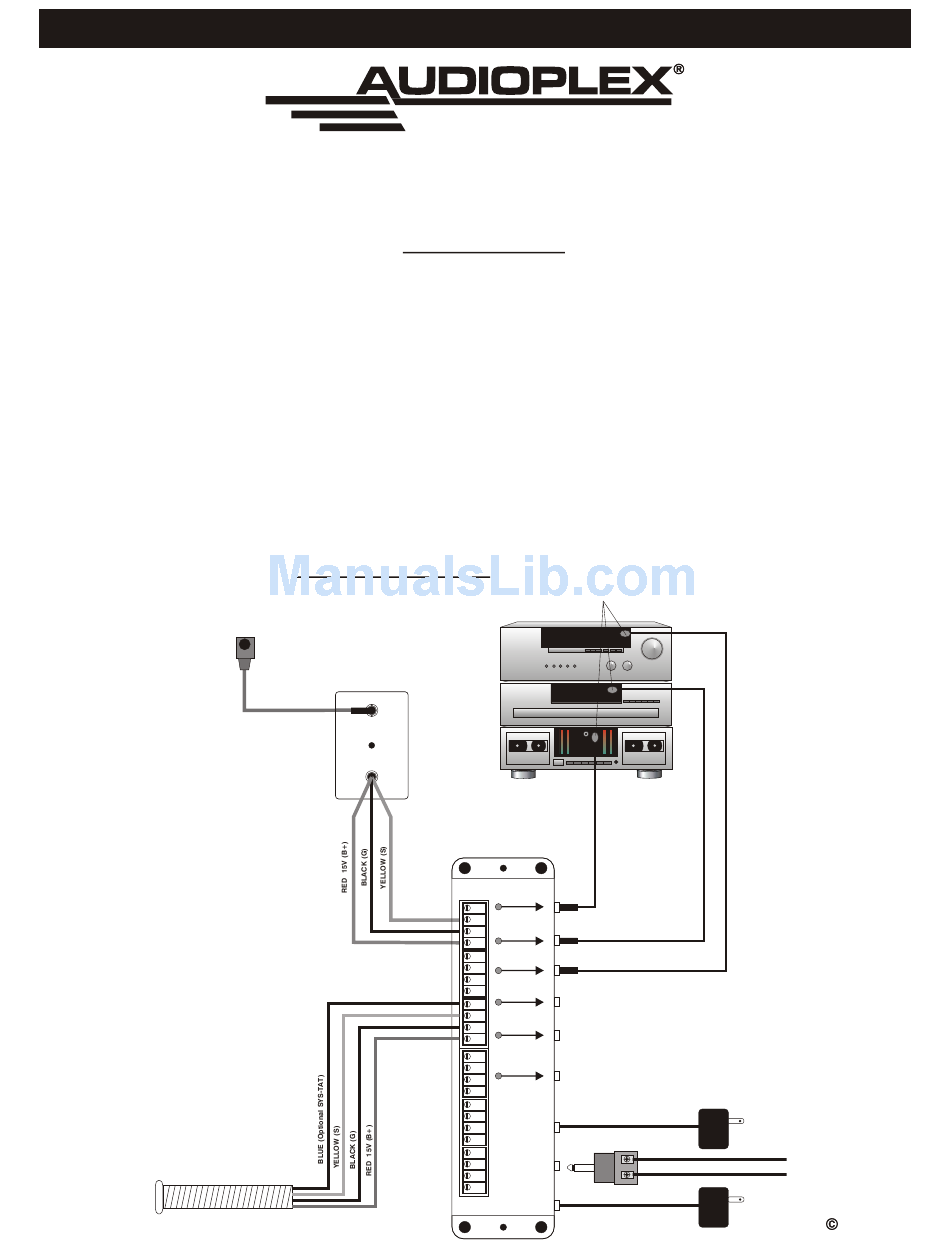

WIRING DIAGRAM

Stealth Sensor
StealthX40-HW
MMX-40
TECHNOLOGY
IRZ-1

SPECIFICATIONS

DVD DOLBY DIGITAL
disc 5
tape b
IRZ-1
EMITTERS
1
T
S
G
2
V
T
S 3
G
V
4
T
S
G
5
V
T
S
6
G
V
T
12 VDC POWER SUPPLY
S
STATUS(T)
G
V
T
S EMITTERS
G
V
POWER(V)
12 VDC POWER SUPPLY
IRBug-PL
2.53
(optional for SYS-TAT)
OUT TO ADDITIONAL EMITTERS
IRS-1
UNREGULATED
2003 - 8/13/03
