Opah DS Heated Vest

User Manual

Table of Contents

Need help?

Do you have a question about the Opah DS and is the answer not in the manual?

Questions and answers

Summary of Contents for AKUANA Opah DS

Page 1 Opah DS Heated Vest User Manual...

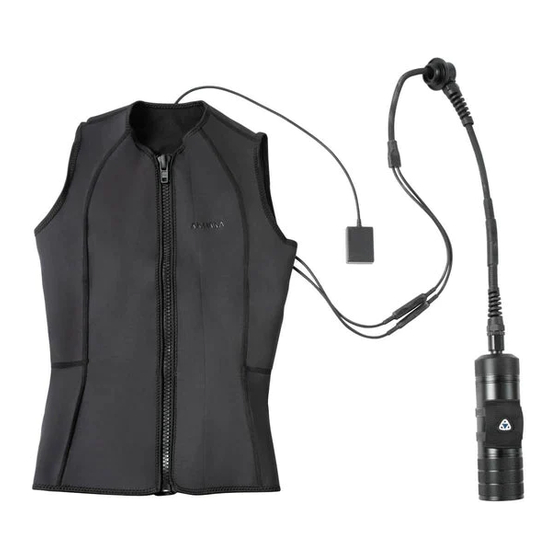

Page 2 THANKS FOR CHOOSING US Thank you for choosing AKUANA Opah DS Heated Vest. An external battery canister and AKUANA E/O cord can be operated in 100 meters depth. Vest can be controlled remotely under your drysuit. Two types of vavles as option for passage of power cord to ful ll your demands and t perfectly for your drysuit.
Page 3 Passage vavle ASSEMBLY: Hole on the drysuit SI TECH 6852 vavle ports Outer diameter: 70mm Inter diameter: 33mm Speci c glue is needed for installation Please following the instrutions shown in the graphic to assemble the products. • Independent passage valve •...
Page 4 MOUNTING 1. Hold , tight clockwise. Ensure a tight tting. 2. Adjust the cord angle properly inside the suit. 3. Screw Attention: DO NOT OVER TIGHT THE VALVE!
Page 5 OPERATION INSTRUCTIONS: Turn on/o the heating function • Once the battery is connected, the receiver will vibrate for 1 second. The LED indicator in the receiver will light up. Please check table (1) for detailed information. • Place the wrist band controller over the receiver as shwon in drawing (3) for 1.5 seconds to turn on the heating funci- ton.
Page 6 Wrist Band Controller Receiver Drawing (3) Vibration indication indication Battery connected White ashing Low Heat Green Medium Heat Blue High Heat White ashing Standby Battery Low: Red ashing Table (1)
Page 7 CHARGING: Red — Charging Green — Charge complete Charging Port Top View of Battery...
Page 8 WARNINGS AND IMPORTANT INSTRUCTIONS: Thank you for choosing your AKUANA Heating Vest. To ensure the best performance from your suit , please read the follow- ing instructions. • Use only in drysuit while diving. • Always keep batteries out of the reach of children.
Page 9 • Gold-plated PIN must be rinsed by fresh water after each dive; otherwise, it may get rusted and cause poor connec- tion problem. IMPORTANT SAFETY INSTRUCTIONS: Suit is supplied with the following products and only these products should be used with the suit. Lithium Battery Models: OPB-03 Main Charger Model XSG1263000 Suits are not suitable for people with Pacemakers.
