Virgin T6 WaterBar Care Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Ownership
and care guide
T6 WaterBar

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T6 WaterBar and is the answer not in the manual?

Questions and answers

Summary of Contents for Virgin T6 WaterBar

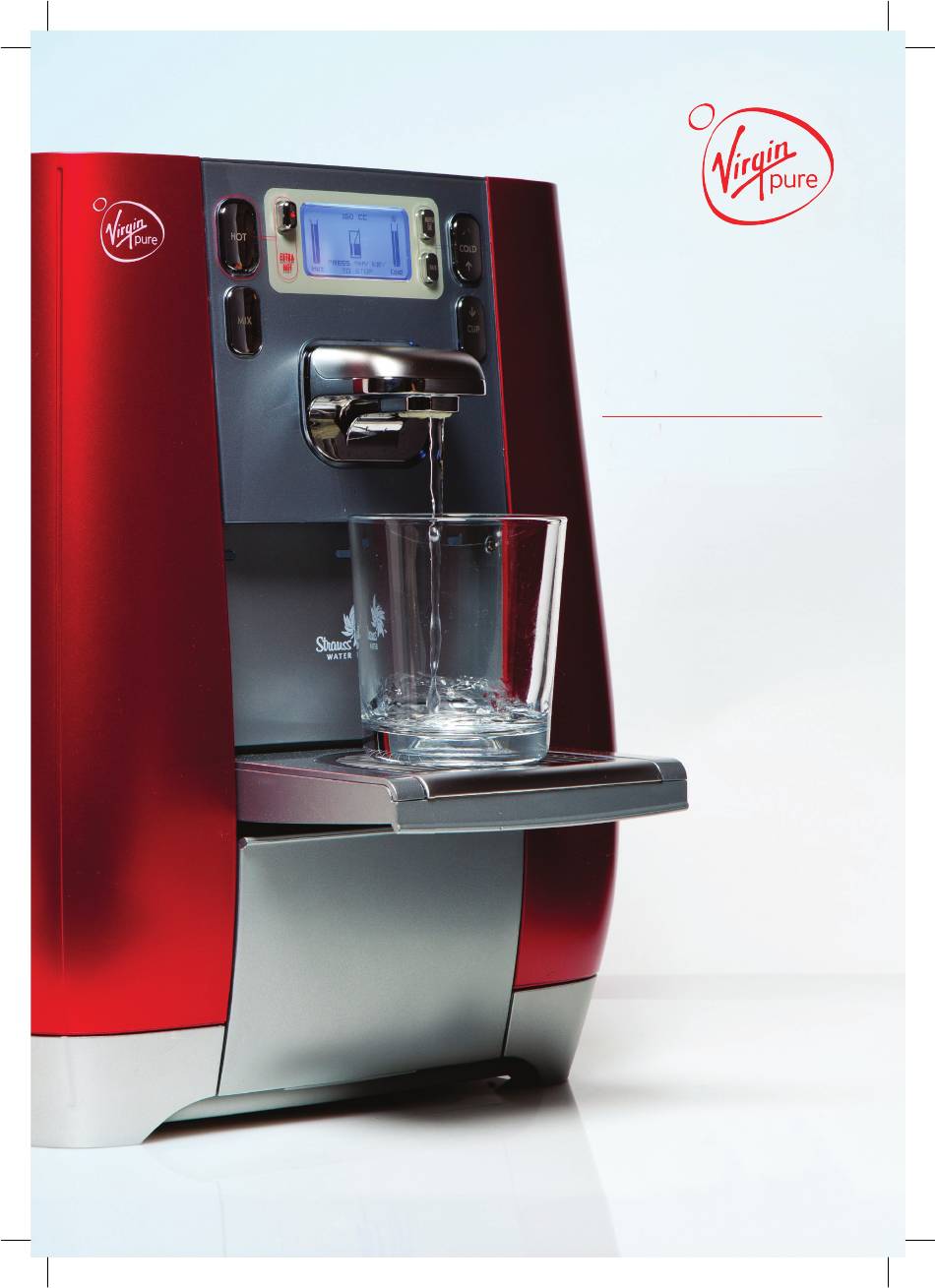

  • Page 1 Ownership and care guide T6 WaterBar...
  • Page 2 STRAUSS_T6_USER GUIDE_AW.indd 2 08/03/2012 17:04...
  • Page 3 T6. Your Virgin Strauss Water technician has showed you the basics so make a cuppa and settle down for a few minutes of light reading. It will save you time in the long run. Promise.

  • Page 4: Table Of Contents

    Where do I fi nd… The T6 appliance What do all those buttons do? Your water, how you want it 3.1 Dispensing water 3.2 System modes 3.3 Menu function Keeping your T6 in tip top condition 4.1 Emptying the drip tray 4.2 Changing the fi lter and UV lamp 4.3 When to change the consumables 4.4 De-scaling...

  • Page 5: The T6 Appliance

    1. The T6 appliance Top pad Operation panel with digital display screen Water spout Folding tray Drip tray Tray grid Condenser Heating system switch Power cable plug Water inlet port STRAUSS_T6_USER GUIDE_AW.indd 5 08/03/2012 17:04...

  • Page 6: What Do All Those Buttons Do

    2. What do all those buttons do? MENU COLD EXTRA 12:00 BACK COLD Mixed water dispensing button (preset quantity and temperature) Hot water button EXTRA HOT Extra hot button Graphic display screen MENU/OK Menu functions button BACK Back button (return to previous menu) Cold water button COLD (Scroll up in menu functions)

  • Page 7: Your Water, How You Want It

    3. Your water, how you want it 3.1 Dispensing water Cold water Press and hold the COLD button for continuous cold water. The fi lling glass icon (shown) will appear while the water is dispensing. Preset cold water for your favourite glass Press the CUP button once to dispense a preset amount of cold water.
  • Page 8 Extra hot water Press the EXTRA HOT button to heat water up to boiling temperature, then press HOT button to dispense. Hot water dispensing with child lock on When the T6 is in child safety mode (see page 12), press the HOT and COLD buttons simultaneously to dispense hot water.

  • Page 9: System Modes

    3.2 System modes There are three main system modes designed to help you save energy: 1. Normal mode In this mode, COLD, HOT, MIX, CUP and jug dispensing is possible. 2. Energy saving mode In energy saving mode you can dispense cold and mix water, using the COLD, CUP and MIX buttons.

  • Page 10: Menu Function

    3.3 Menu function 3.3.1. Setting clock and day To set the clock, enter the clock sub-menu: MAIN MENU TIME DATE CLOCK The current time setting and day will appear on the display. Use the COLD and CUP buttons to scroll and select the clock or the day.
  • Page 11 3.3.2. Wakey wakey! There are two independent timers, which re-start the heating system from energy saving mode. To set wake-up timer, enter the wake-up sub-menu: MAIN MENU TIME DATE WAKEUP The current status of the wake-up timers will appear on the display. Use the scroll buttons, (COLD and CUP) to select the timer.
  • Page 12 3.3.4 Setting the automatic power down timer The power down timer automatically switches the system off after a period of time set by you. To set automatic power down mode timer, enter the power down sub menu: MAIN MENU TIME DATE POWER DOWN The current setting will appear on the display.
  • Page 13 3.3.7 Clock view option To select the clock view, enter the clock view sub-menu: MAIN MENU SETTINGS DISPLAY SET CLOCK VIEW The current option will appear on the display. Use the scroll buttons (COLD and CUP) to change the option. Press OK to confi rm.
  • Page 14 3.3.10 Language To change the language used, enter the language sub-menu: MAIN MENU SETTINGS LANGUAGE The current selection will appear on the display. Use the scroll buttons (COLD and CUP) to change the language. Press OK to confi rm. 3.3.11 Restoring factory settings To restore factory (default) settings, enter the restore settings sub-menu: MAIN MENU SETTINGS...
  • Page 15 3.3.13 Setting the cold water amount for your favourite glass* To set the quantity of cold water to be dispensed (the CUP button), enter the cold water quantity sub-menu: MAIN MENU TEMP & QTY COLD WATER QTY. The current quantity setting – between 60-300 cc (2-10 oz) –...

  • Page 16: Keeping Your T6 In Tip Top Condition

    3.3.16 Setting the hot water amount for your favourite cup* To set hot water dispensing quantity, enter the hot water quantity sub-menu: MAIN MENU WATER TEMP & QTY HOT WATER QTY The current quantity setting – between 60-300 cc (2-10 oz) – will appear on the display. Use the scroll buttons (COLD and CUP) to change the quantity.

  • Page 17: Changing The Fi Lter And Uv Lamp

    4.2 Changing the fi lter and UV lamp To keep providing pure, crisp water, the fi lter should be replaced every six months (about 2,000 litres/ 520 gallons of water), and the UV lamp every year. The REPLACE FILTER message will appear six months after the last fi lter counter reset.
  • Page 18 * The capsule contains citric salt for scale removal. 1. Remove the rubber pad. 2. Press the button and pull the filter PUSH upwards, using the ribbon tab. 4.2.1 Every 6 months - the de-scaling process and inserting a new fi lter How to perform the descaling process Needs to be performed every six months Note : the unit cannot be used during the scale removal process for approximately...
  • Page 19 Press PUSH, remove the Unwrap your new fi lter, Insert the fi lter until you capsule, and dispose of it in making sure the ribbon tab hear a click. accordance with your Local stays in place. Authority guidelines. The scale removal process is now complete.
  • Page 20 Resetting the fi lter’s counter Immediately after replacing the fi lter you need to reset the counter in order that the T6 will display when your fi lter needs changing again. Press MENU. Scroll to REPLACEMENT. Press OK. Scroll to FILTER. Press OK.
  • Page 21 4.2.2 At 12 months - changing your UV lamp Perform the 6 month de-scaling process and fi lter change as per previous pages, then follow these steps to replace the UV lamp. Remove the rubber pad. Pull the lamp upwards and Remove the new lamp from dispose of it in accordance with its wrapper.

  • Page 22: When To Change The Consumables

    4.3 When to change the consumables In order to display the filter and UV lamp’s current status, enter the replacement sub-menu to display or reset counters. MAIN MENU REPLACEMENT 4.4 De-scaling Your T6 needs to be de-scaled every 6 months when you change your filter. When we send your replacement filter a de-scaling capsule will be sent to you with instructions how to run it through the appliance.

  • Page 23: Going On Holiday

    The T6 has been designed for you to change the filters and UV lamp yourself. Any other appliance maintenance must be conducted by a Virgin Strauss Water certified technician. We relinquish any responsibility for injury or damage to property as a result of improper use or maintenance of this appliance.

  • Page 24: The Technical Bit

    8. The technical bit… Power Supply 230 volts Electricity Voltage 230V, 1 Phase Frequency 50 Hz Cooling power consumption 72 Watts Heating power consumption 1800Watts Current consumption 8.5 A Cooling system Tank volume 1.6 litres Cooling capacity* 44 W Cold water output** 40 cups/hour ∆...

  • Page 25: Troubleshooting Guide

    9. Troubleshooting guide Your T6 has been manufactured to exacting standards and will require almost no maintenance other than the de-scaling process and the replacement of the filter and UV lamp. We’re happy to come out and rectify any problems should they occur but ask that you check the following table to ensure that you are experiencing an appliance fault, and not a problem with the electricity or water supply.
  • Page 26 STRAUSS_T6_USER GUIDE_AW.indd 26 08/03/2012 17:05...
  • Page 27 STRAUSS_T6_USER GUIDE_AW.indd 27 08/03/2012 17:05...
  • Page 28 Any problems? Just call 0207 022 6472 Oval Office 11-12 The Oval London E2 9DT www.virginpure.com customerservice@virginpure.com VIRGIN and the Virgin signature are registered trademarks of Virgin Enterprises Europe and are used under licence.
