Summary of Contents for Endress E-RMA LAN

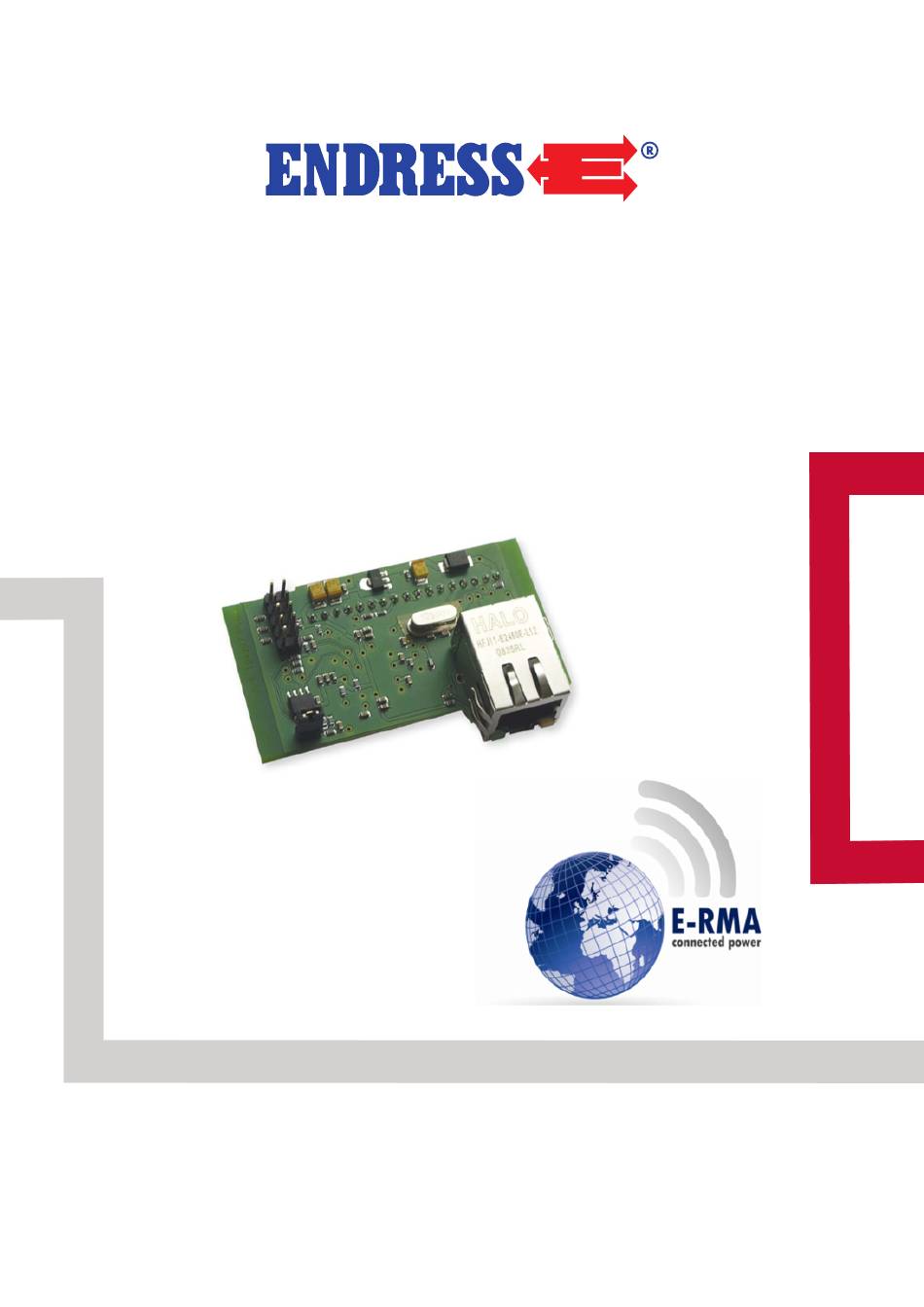

- Page 1 Translation of the original operating manual E-RMA LAN Article-No.: 342 221...
- Page 2 This documentation and parts thereof are subject to copyright. Any use or modi- fication beyond the restrictions of the Copyright Act is forbidden and subject to penalty without the consent of ENDRESS Elektrogerätebau GmbH. This applies in particular to copies, translations, microfilming, as well as storage and processing in electronic systems.
-
Page 3: Table Of Contents
Installing an E-RMA LAN module ........ -
Page 4: About This Manual
About this manual About this manual We would like to explain to you the safe and proper use of the optional additional equipment and accessories through this supplementary operating manual. To do this we have oriented ourselves to the new European standard DIN EN 82079-1 for preparing the user manuals. -
Page 5: Commissioning
Installing an E-RMA LAN module You will need a LAN cable and an internet-compatible computer or router to be able to use the E-RMA LAN module. They are needed so that you can connect up your generator to the internet. -
Page 6: E- Rma Lan Connection Options
You will have several options for establishing a connection to your gener- ator after you have installed the E-RMA LAN module in your generator. You will find a summary of these options and the settings that you will have to make for them in the following chapters. -
Page 7: Direct Connection Between The Pc And The E-Rma Lan
2.2.2 Direct connection between the PC and the E-RMA One option for using your generator with E-RMA LAN module is to make a direct connection between your generator and your PC. In this case you should connect the E-RMA LAN module directly to your PC or your laptop. -
Page 8: Connection From The E-Rma Lan Via The Internet Using A Dynamic Ip
Connection from the E-RMA LAN via the internet us- ing a dynamic IP It is also possible to connect the E-RMA LAN module with the Ethernet / in- ternet using a dynamic IP address and AirGate. In this case you must con- nect your E-RMA LAN module to a router or an Ethernet / internet socket. -
Page 9: Connection From The E-Rma Lan Via The Internet Using A Static Ip
Connection from the E-RMA LAN via the internet us- ing a static IP The third option for connecting your E-RMA LAN module is via a router us- ing a static IP address or a public, static IP address. The public, static IP address can be obtained from your internet provider. - Page 10 Commissioning 1. Press the Page button. 2. Now select the “Password” option in the menu. 3. Set up the controller password and the access code to 0. This password was previously con- figured in the factory. 4. Return to the menu and then select the “CommsSettings”...
-
Page 11: Airgate Diag - Diagnostics Codes
AirGate Diag - Diagnostics codes AirGate Diag - Diagnostics codes The following table gives an overview of the AirGate Diag statuses. The di- agnostic code can be found under the AirGate ID. Use the diagnostic code to check the status of your module if you cannot establish a connection. Diagnostics codes -Table Code Description... -
Page 12: Web Supervisor
Activated and PIN-free SIM card has been inserted in the unit. Web supervisor activation has been received. 1. Enter the following link in the address bar in your browser to go to the web supervisor: https://endress.websupervisor.net 2. You will be taken to the following web page from here:... - Page 13 Web supervisor Fig. 4-1 Web supervisor login page 3. Enter the login details here that we sent via e-mail. You will then be taken to the web supervisor's overview page.
- Page 14 Web supervisor...
- Page 15 Web supervisor 1. After logging in you will be redirected to the page shown alongside. You will then see the dashboard, which is an overview page that displays the most important data. 2. The menu bar that you can use to move through the web supervisor site can be found in the top right-hand corner.
- Page 16 Elektrogerätebau GmbH Neckartenzlinger Str. 39 D-72658 Bempflingen, Germany Tel: +49 (0) 7123 /9737-0 Fax: +49 (0) 7123 /9737-50 Email: info@endress-stromerzeuger.de www: www.endress-stromerzeuger.de © 2019, ENDRESS Elektrogerätebau GmbH...
