Summary of Contents for Smarthome SH - F66

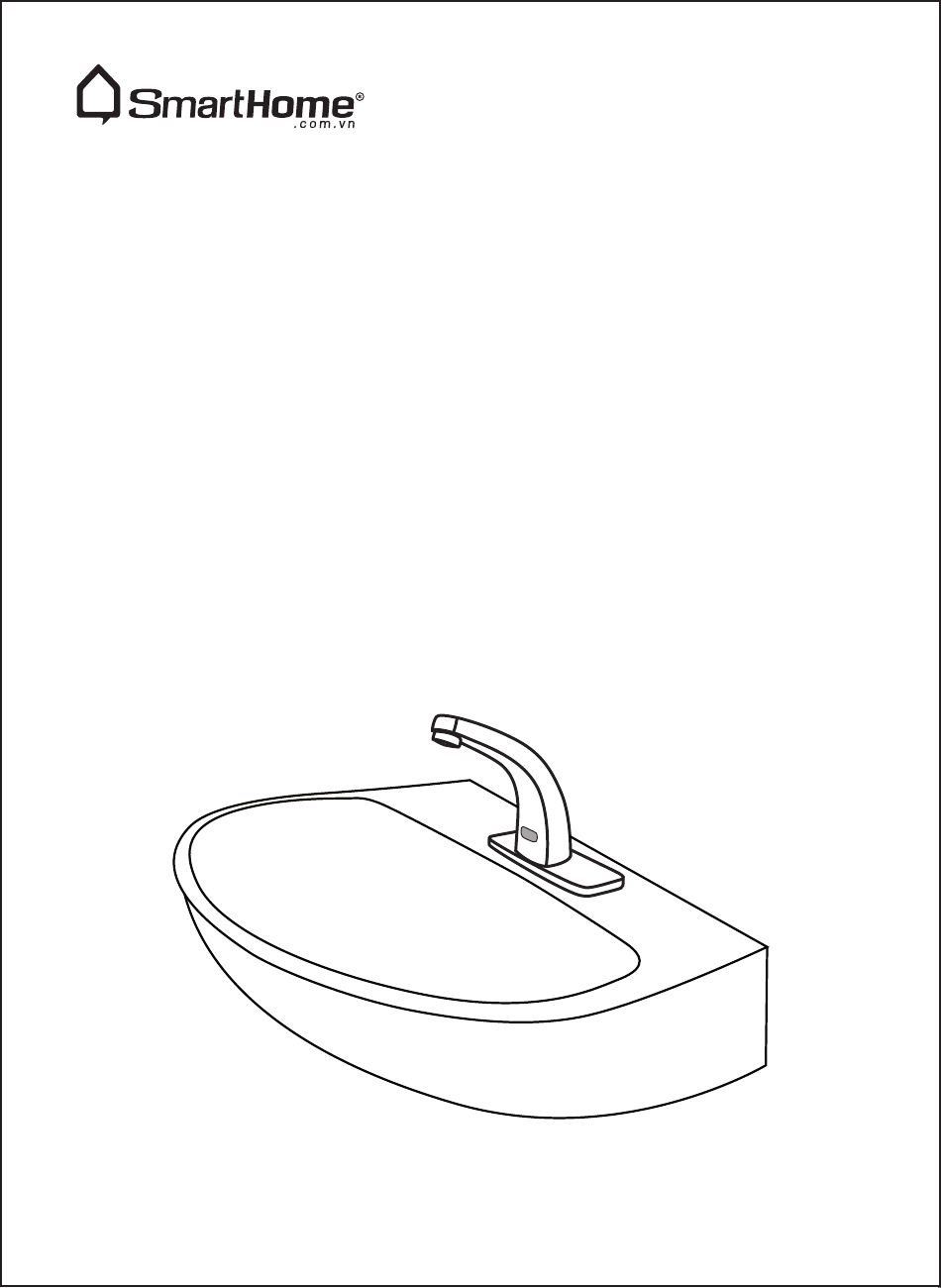

- Page 1 MANUAL BOOK SENSOR FAUCET Model: SH - F66 SMARTHOME TECHNOLOGY DEVELOPMENT INVESTMENT COMPANY LIMITED...
- Page 2 Safety information Các bước lắp đặt Avoid electrical shock to the device. Avoid using voltage higher than that in the device’s specifications. Disconnect its power prior to installing, disassem- bling or repairing the device. Do not clean the device with corrosive chemicals. Do not store the device in high-temperature environment.
- Page 3 Accessories Faucet base Set of screw and anchor (Qty: 1) (Qty: 4) Pressure regulator Water hose (Qty: 1) (Qty: 2) Battery Fastening screw (Qty: 1) (Qty: 4) Hot&cold mixing valve (Optional – Not included) Please check to ensure that the accessories are attached to the device.
- Page 4 Technical specifications Voltage 6V – 4 AA batteries, Alkaline 220V - 50/60Hz Power consumption Operating: Po = 6W Standby: Ps = 0.5W Water supply pressure 0,7 - 7,6 Kgf/Cm2 Water temperature 5 C - 50 C Verification time 0.5 seconds in normal mode (AC power or battery).
- Page 5 Components Infrared sensor component: Detects presence of user to trigger water pouring Indicator light: Has notification function, the light turns on when detecting user in its sensor area. Sensor range Range for receiving reflected signal Range for emitting infrared signal Sensor range can be adjusted from 15 to 20 cm under construction conditions and customer’s need.
- Page 6 Operation cycle Standby False Presence of user True Flushing water False False User moving out Flush duration >60s of the sensor range True True Flush break Flush break Explanation When a user put his hands in the sensor range, water will automatically flush.
- Page 7 Installation with cold water supply Installation with cold water supply 1: Faucet body 8: Solenoid valve input 2: Lavabo 9: Signal wire Note 3: Power source 10: Rubber washer 4: Power Cord 11: Fastening screw 5: Battery box 12: Hose 6: Control Box 13: Pressure regulator 7: Solenoid valve output...
- Page 8 Installation with cold water supply Step 1: Mount the faucet body onto the Lavabo. Step 2: Install the Rubber washer, Fastening screw onto the Lavabo.
- Page 9 Step 3: Insert batteries into Control box, then mount Control box to the wall (the direction of control box should be exactly as shown in diagram). Step 4: Connect pressure regulator to Water supply. Connect pressure regulator to Solenoid valve input with the Hose.
- Page 10 Step 5: Connect the Solenoid valve output to Faucet body with the Hose. Then connect the Signal wire. Step 6: Connect Power cord to Power source.
- Page 11 Installation with hot&cold water supply Installation with hot&cold water supply The device supports hot&cold water supply with a hot/cold mixing valve. Note 3: Power source 13: Presssure Regulator 4: Power cord 15: Hot-cold mixing valve 6: Control Box 16: Output to solenoid valve 8: Solenoid valve output 17: Hot water supply 12: Hose...
- Page 12 Installation with hot&cold water supply Step 1: Connect hot/cold mixing valve to solenoid valve input. Step 2: Connect hose to hot/cold mixing valve.
- Page 13 Step 3: Connect pressure regulator to Cold water supply. Step 4: Connect the Hoses to Relief valve and Hot water supply.
- Page 14 Step 5: Connect Power Cord to Power source.
- Page 15 Maintenance during usage Maintenance of faucet body After the period of usage and operation in the moist and dusty environ- ment, the device cover may be foul due to these factors. Thus, it is necessary to clean the faucet body to keep the device clean. Maintenance of solenoid valve After a period of usage, if the flushing water is weaken or leaked, it means the solenoid valve needs to be cleaned.
- Page 16 Troubleshooting The device is not functioning Checking If water does not come out. If the device is not powered. If the faucet body is not connected to control system. If the problem is not mentioned above. Solutions Check the water supply for the device. Connect the device with AC power or battery.
