Summary of Contents for erlab Captair Flow Smart

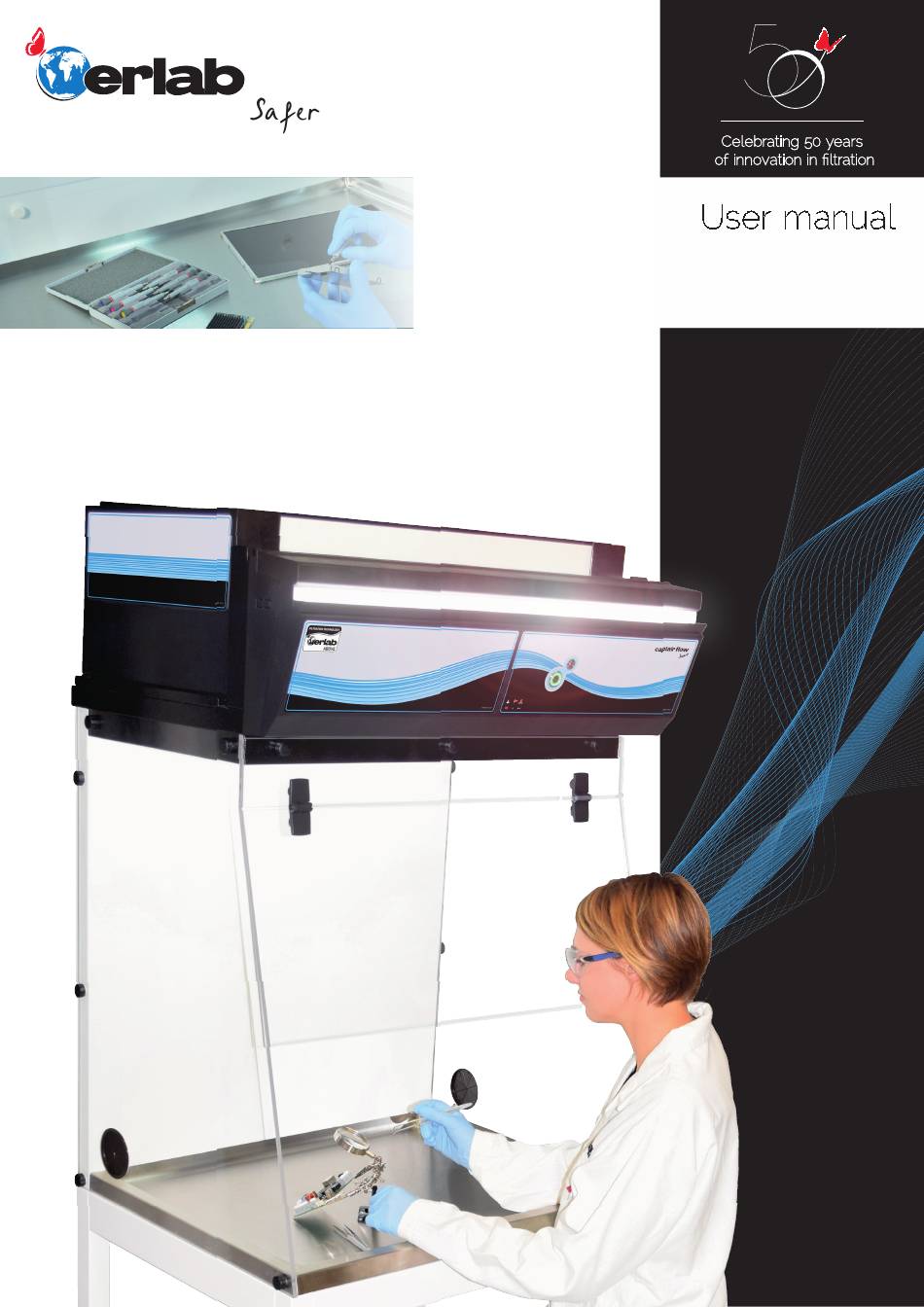

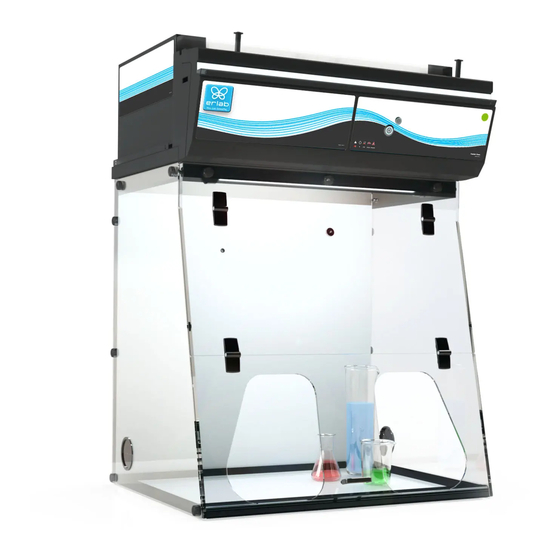

- Page 1 Simpler User manual Captair Flow Smart Mobile ductless filtering clean air enclosure...
-
Page 2: Table Of Contents
Captair Flow Smart Mobile ductless filtering clean air enclosure Contents General ...................................................3 Safety notices ................................................3 Product registration ............................................3 Start-up ..................................................4 Calibrating the electronic anemometer Default settings Description of the control module Description of the alarms eGuard App ................................................6 Connectivity principle... -
Page 3: General
Erlab’s 50 years of expertise in the filtration systems for laboratories ensures the highest protection for handlings requiring an ultra clean environment. The new Captair Flow Smart ductless filtering clean air enclosure uses an innovative and straight- forward mode of communication called Smart technology. -
Page 4: Start-Up
• Anemometer should be calibrated every year and every time a modification is done on the filtration column Having carefully followed the steps described in the installation guide, your Captair Flow Smart ductless filtering clean air enclosure is now ready to use. -
Page 5: Description Of The Alarms
The rotation speed (RPM) is +/- Fan fault 10% of 2 beeps the fan setpoint. 5 seconds Press Mute Please contact Erlab or your Pulses apart usual maintenance contact. The rotation Unserviceable speed (RPM) is < 700 RPM Filtration... -
Page 6: Eguard App
App Welcome to a safer connected world The connectivity of Erlab Smart devices allows you to monitor all your safety settings remotely. After registering your product on line, download eGuard App and: • Stay in touch wherever you are •... - Page 7 Historical data access Historical data download Alerts Monitor multiple devices Allow multiple user accounts Automated status report Download available on www.erlab.com Options to connect Embedded service RJ45 Mobile or computer app Flash the QR code to access usage datas of and/or the device.
-
Page 8: Accessing The Administrator Interface
You enter the « Status » page and you can have access to the « Settings » using the following Apply the following procedure credentials: Login : erlab / Password : smart Please go to page... - Page 9 Page is not accessible Modify computer network parameters Network parameters Left click Right click Access to the Network and sharing center Left click...
- Page 10 Captair Flow Smart Mobile ductless filtering clean air enclosure Access to the network connection Note : This confirms your WIFI is Right click disconnected! Left click to access properties Enter compatible network parameters as indicated below Left click Left click...
- Page 11 Open your web browser again, type again the following IP address 192.168.0.200 and validate OK : You are connected to the embedded software You enter the « Status » page and you can have access to the « Settings » using the following cre- dentials: Login : erlab / Password : smart...
-
Page 12: Administrator Interface Description
Captair Flow Smart Mobile ductless filtering clean air enclosure Administrator interface description Enter the unit IP address into the address bar of your browser in order to access the embedded sotware. Status page details Choose active interface page Device ID: Model... - Page 13 Access to the settings is protected by the following credentials: User name: erlab Password: smart...
- Page 14 Captair Flow Smart Mobile ductless filtering clean air enclosure Settings page details Device time and date settings Device network settings Mode: Selected IP protocol Hostname: Device name on network IP: IP address of the device MASK: network mask GW: Network gateway...
-
Page 15: Fan Setpoints Per Filtration Column Type
Log page details Displays the device’s event log Used for downloading the log in .csv format Fan setpoints per filtration column type Unit / Type of filtration column 1C1P 2800 RPM 2100 RPM 2200 RPM 2200 RPM 2100 RPM 2100 RPM... -
Page 16: Replacing The Filters
Captair Flow 483 - 714 -Smart models Molecular filter Particulate filter Pre-filtre Column Configuration 1C1P The table below summarises the different types of filters that Erlab® offers along with their fields of application. For organic vapors Type AS For particles HEPA H14 For particles ULPA U16... - Page 17 HEPA H14 / ULPA filters Pre-requisites • The operative responsible for replacing the filter is kept up-to-date with the exhaustive list of products handled in the workstation by the user so that the correct EPI can be used. • The laboratory is empty when the operation is carried out. •...
- Page 18 Captair Flow Smart Mobile ductless filtering clean air enclosure Filter Replacement Procedure For these operations, we strongly recommended that the user or service en- gineer wears the necessary safety equipment, including: safety glasses, lab coat and gloves Switch off the workstation...
- Page 19 Models Captair Flow 321 - 391 Smart Identify which column configuration below applies to your workstation. Unstack the filtration column(s) above the workstation. After carrefuly removing the filters from their packaging, assemble the column per the configuration below. If your column configuration changed, Apply the correct fan setpoint for the filtration column configuration (see fan setpoints) 1C1P 1C1P...
-
Page 20: Recommendations For Storing And Using The Filters
Captair Flow Smart Mobile ductless filtering clean air enclosure When reassembling the filtration column, be sure that the fan module is positioned correctly to access your connection points. 321 S 483 S xamplE aptair mart xamplE aptair mart Reconnect the power supply to the fan... -
Page 21: Replacement Frequency For Filtration Breakthrough Sensor (Molecode Option)
The change requires less than one hour. Erlab Maintenance department and accredited partners can provide this service. (service not available in all countries). For further information, please get in touch with your contact person or Erlab dealer/distributor or visit our website. Admissible weights on worksurfaces The chart below reflects loads that are evenly disributed across the work surface. -
Page 22: Cleaning And Maintenance
Captair Flow Smart Mobile ductless filtering clean air enclosure Cleaning and maintenance Mechanical item checks • Hinges: Hinges must be properly attached and must allow any items on the front side of the workstation to be instantly and easily lifted upward. - Page 24 +86 (0) 512 5781 4085 │ sales.china@erlab.com.cn safety. With Erlab, you will never have to wonder or worry if our products are safe. We build Malaysia each one of the following 7 very important safety features into our products.
