Lightronics AK Series Owner's Manual

AK SERIES ARCHITECTURAL REMOTE STATION
Version 0.1
GENERAL DESCRIPTION

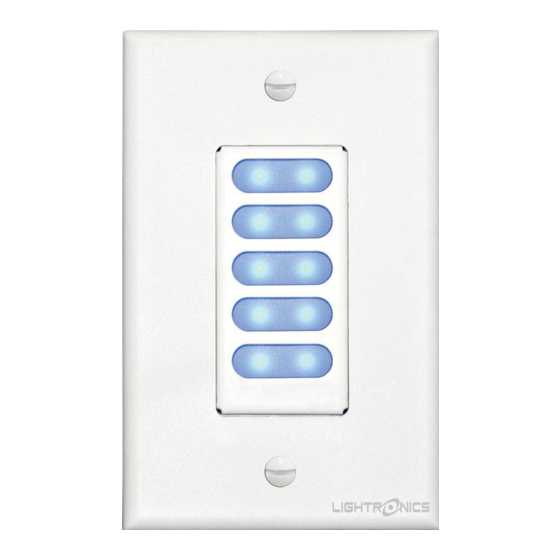

AK Series remote units are wall mounted, multiscene
remotes for use with the
architectural control system. The LitNet host units
consist of the AR and AB series of architectural
dimmers, the RA rack mount dimmers and the SR &
SC architectural controllers. Each button activates a
complete lighting scene. LED indicators show which
scene is active.
There are currently three models available:
AK1005
AK1003
AK1002
AK Series units fit into a standard single gang wall
switch boxes. They communicate on LitNet via a four
wire bus which will accommodate several remotes and
other controls. All LitNet wiring is low voltage.
The units generally operate in an exclusive mode
where only one scene can be active at a time.
scene may be toggled on and off. When a scene is
selected, the lighting circuits fade, at a user controlled
rate, to the setting for that scene.
Scenes activated by these remotes are actually set up
and stored in the LitNet host. The remotes only tell the
host which scene(s) to activate.
INSTALLATION
CAUTION
Remove all power from the LitNet
host(s) before making connections
AK Series units connect to the host via a shielded 4
conductor cable arranged as 2 twisted pairs. One pair
connects to the DATA - and DATA + signals. The
other pair carries the common and power.
Ensure the unit is installed with the connector in the
bottom left hand side which results in button # 1 being
at the top of the remote.
See the diagram "CONNECTOR WIRING"
SINGLE UNIT: Connect the 4 cable wires to the
screw down terminals on the back of the unit. Connect
the cable shield to the REMOTE COMMON terminal.
www.lightronics.com
Lightronics Inc.
Lightronics
5 Scenes
3 Scenes
2 Scenes
for details.
509 Central Drive, Virginia Beach, VA 23454
OWNERS MANUAL
LitNet
Each
The other end of the cable connects to the host by
different methods. Refer to the respective host product
Owner's Manual for complete wiring details.
MULTIPLE UNITS:
single unit for the first AK Series remote. Connect the
terminals of the second unit to the corresponding
terminals of the of the first unit
chain").
Additional units can be added in the same manner.
Do not make multiple "home runs" to the host or create
a "star network".
OPERATION
No setup or turn on procedure is needed. When the
LitNet host is powered on, the AK1005 will also be
powered. If communication with the LitNet host
cannot be established, an AK1005 will appear to be
repeatedly scanning through all scenes.
Scenes to be activated by an AK1005 must have
already been created and stored in the LitNet host. See
the host product Owner's Manual for instruction on
programming scenes.
Page 1 of 3
12/08/2020
AK1005
Follow the instructions for a
(create a "daisy
tel 757 486 3588
