1. Illustration to buttons
+
-
"
" Frequency up- searching / Minute
"
"Frequency down- searching/ Hour
+
"
"Audio Volume up
-
"
"Audio Volume down
"
"Radio memory/ Key Lock
"
" Radio searching / Shift of Circulation
or Preheat setting
"
" Long Circulation Cleaning ON/OFF
"
" Preheat setting & Heater ON/ OFF
Note：
.Function of buttons with blue parts only works under the Waitting Mode Status。
2. Function Summary
（1） Constant temperature，preset heater，and display and operation of water temperature。
（2）Three surfing pumps，One circulation pump also，One blower。
（3）Color of Lights are change & changeless synchronization。
PROGRAMMING INSTRUCTIONS
MINUTE
HOUR
Fig﹒1：Sketch map of big massage bathtub
F
HEAT
ONOFF
MEM
VOL
"
"System ON/ OFF & Enter
"
"Radio & CD Input ON/ OFF
"
"Blower ON/ OFF & Temperature Mode
Shift
"
"Light from the bottom ON/ OFF
"
"Surf Water pump 1 ON/ OFF
"
" Surf Water pump 1 ON/ OFF
"
" Setting Of circulation Cleaning & Surf
Water pump 3 ON/ OFF
"
" Temperature setting
KL8-3
F/ C
1
Advertisement
Table of Contents
Summary of Contents for ETHINK KL8-3

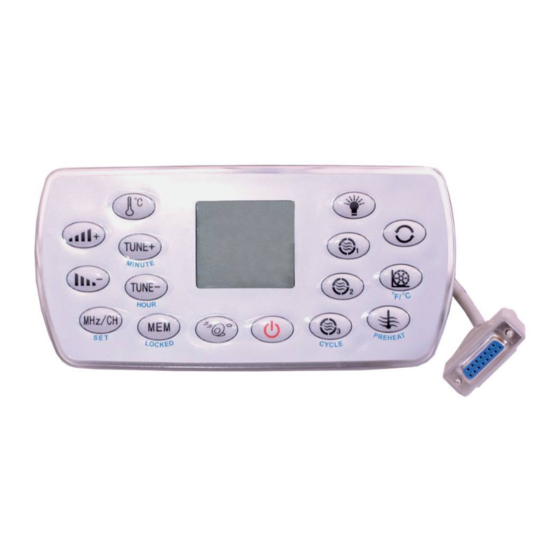

- Page 1 KL8-3 PROGRAMMING INSTRUCTIONS 1. Illustration to buttons HEAT ONOFF MINUTE F/ C HOUR Fig﹒1：Sketch map of big massage bathtub “ ”System ON/ OFF & Enter “ ” Frequency up- searching / Minute “ ”Radio & CD Input ON/ OFF “...
- Page 2 KL8-3 （4）CD frequency input。Display of radio frequency and storage for 10 channels。 （5）Display and 87 grades adjustment of volume。 （6）Long Circulation and Phase of time Circulation cleaning。 （7）Display and set of 24 hours model。 （8）Power loss memory for all setting。...
- Page 3 KL8-3 ” without stop。the minute adjustment range of the could be added continually when pressing the“ minute is：0~59。 The system will quit the time-setting status automatically after 6 seconds without pressing。 (4) Operation to circulation-cleaning settings： Circulation-cleaning only works one times every day。 The LCD can show clearly about whether circulation-cleaning setting is startup or not。See following Fig﹒...
- Page 4 KL8-3 It will add 1 minute when pressing “ ” each time and the minutes could be added the continually when pressing the “ ” without stop。The adjustment range is 0~59。 It will add 1 hour when pressing “ ”each time，and the hours could be added the continually when pressing the “...
- Page 5 KL8-3 It will add 1 hour when pressing “ ”each time，and the hours could be added the continually when pressing the “ ” without stop。 The adjustment range is 0~23。 When you set up well of the start time , you could go on to the next step。...
- Page 6 KL8-3 the power supply. and the LCD display “---” 。 2、 please note that it shows "on" or "off" on the LCD, "on" means pre-heating is turn on, when the time of pre-heating is the same as currently time, the heater will start working.
- Page 7 KL8-3 added continually till 45℃ when pressing the “ ”without stop。At this time ， when pressing “ ” angin，and the temperature could return 15℃ 。The range of adjustment is 15~45℃ 。 (10)Operation Radio & CD: Fig﹒11： Radio frequency is 105.2 MHZ，Save the present frequency to channel 3 (Save channel) or Exchange the frequency form channel 3 to the present (Searching channel) Ⅰ)、Key...
- Page 8 KL8-3 Press “ ” for the first time，The LIGHTS are ON，and the color of LIGHTS are changing；Press “ ”again，the current color are changeless；Press“ ”at the third times，all LIGHTS will OFF。 (14) Operation to Constant temperature heating： 1)、 When the pre-heating time is up （If the pre-heating has turned on） or press the “...
