D-Link DES-1024A Quick Install Manual

Quick Install Guide
24-Port 10/100 Mbps Unmanaged Switch
Thank you for purchasing the 24-Port 10/100 Mbps Unmanaged Switch. Follow
the easy steps in this guide to properly set up your switch. Please verify that all the
package contents listed below are available.
Package Contents
DES-1024A 24-Port 10/100 Mbps Unmanaged Switch
Quick Install Guide
Power Adapter
If any of the above items are missing, please contact your reseller.
DES-1024A
What This Product Does
Expand your home or office network with the D-Link® 24-Port 10/100 Mbps Unmanaged Switch. This
Switch lets you network up to 24 devices at speeds up to 200Mbps (at full duplex) and is compact enough
to be placed virtually anywhere in your home or office. Add a computer, printer, NAS storage device, or
network camera and expand the functionality of your network. You may also connect the Switch to hubs,
switches, and routers to expand your network.
Before You Begin
The setup of the Switch can be performed using the following steps:
• Visually inspect the DC power jack and make sure that it is fully secured to the power adapter.
• Do not cover the ventilation holes on the sides of the Switch, and make sure there is adequate
ventilation around it.
• Do not place heavy objects on the switch.
• Place the Switch in a cool and dry environment.
Connecting the Switch
Step 1
Plug the supplied power adapter into the Switch and the other end into a power outlet, power strip,
or surge protector (recommended). Verify the Power indicator is lit on the Switch.
Step 2
Connect one end of an Ethernet cable to the device you want to connect to the Switch, and the other
end to one of the Ethernet ports on the Switch. Check the Link lights (LEDs) on both the Switch and
the device to verify that the cable is good and that there is a working connection
Note: A Category 5 (or higher) Ethernet cable must be used for 100Mbps or higher operation.
LEDs
Power Indicator - This green indicator light is on when the Switch is receiving power; otherwise, it is off.
Link/Act - This LED indicator light is green when the port is successfully connected to a 100Mbps
device and will blink as data is transmitted or received.
This LED indicator light is amber when the port is successfully connected to a 10Mbps device and will
blink as data is transmitted or received.

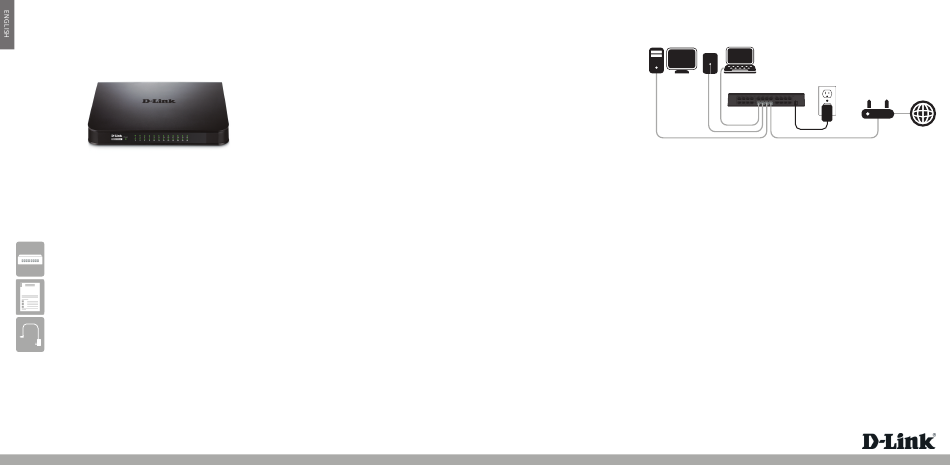

Network
Computer NAS Laptop
DES-1024A
12V 1A
24 22 20 18 16 14 12 10 8 6 4 2
Technical Support
Having trouble installing your new product? D-Link's website contains the latest user documentation
and software updates for D-Link products. U.S. and Canadian customers can contact D-Link Technical
Support through our website or by phone.
United States Canada
Telephone: (877) 453-5465 Telephone:
Internet: http://support.dlink.com Internet: http://support.dlink.ca
Copyright ©2013 All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries.
Other trademarks are the property of their respective owners. Product specifications, size and shape are subject to change without
notice, and actual product appearance may differ from that depicted on the packaging. Visit dlink.com (US) or dlink.ca (Canada) for
more details.
Version 1.00 | March 11 , 2013 29072600D1024A1
Router
Internet
(800) 361-5265
