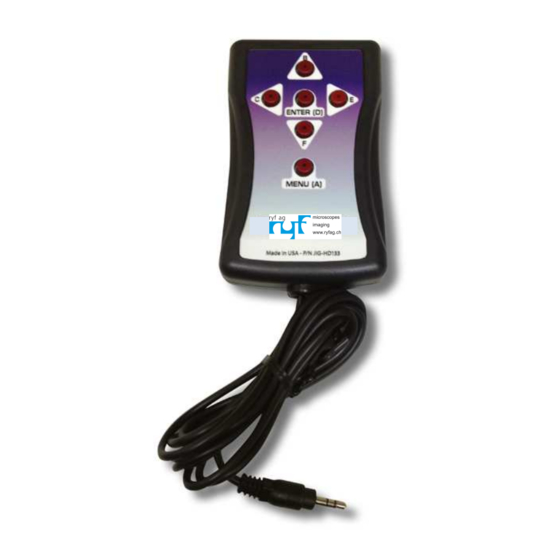

Summary of Contents for Ryf AG R-FHD-1080

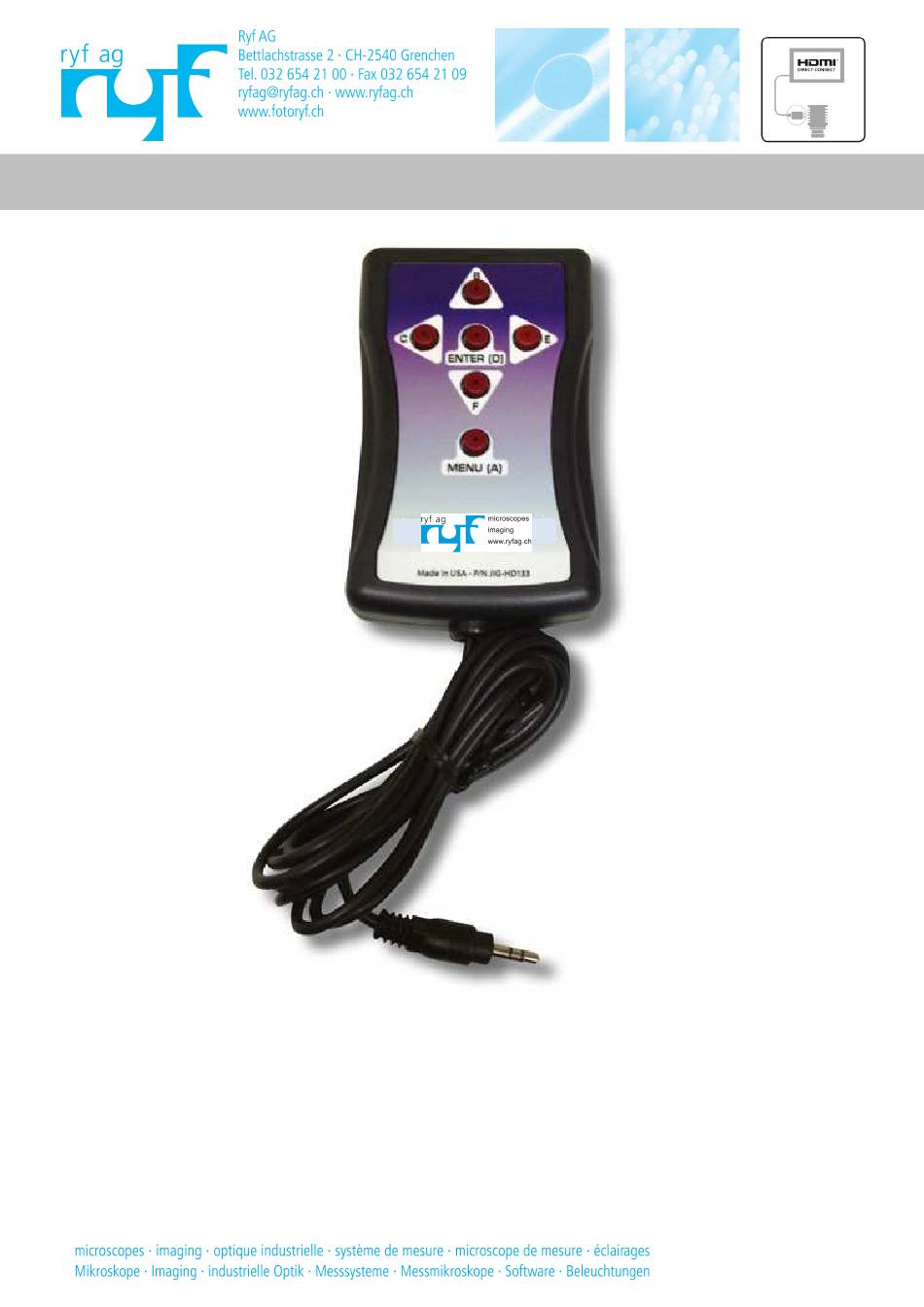

- Page 1 Manual Ryf Remote Control for R-FHD-1080...
- Page 2 PC, compatible avec R-FHD-1080-1001 moniteurs avec interface HDMI. Kabelgebundene Fernbedienung für OSD-Menü zu R-FHD-1080-1001. R-HD-720-1003 Télécommande pour contrôle du menu OSD de la caméra R-FHD-1080-1001. Stecker-Netzgerät 100-240VAC/12VDC mit Hohlstecker zu R-FHD-1080-1001. R-HD-720-1004 Alimentation 100-240VAC/12VDC avec fiche DC pour la caméra R-FHD-1080-1001.
- Page 3 Manual Ryf Remote Control for R-FHD-1080...
- Page 4 II. Operating the Menu of the Ryf OSD Remote Control (default settings) First plug in the pin jack of the remote control into the R-FHD camera to begin using the R-FHD-1080 Remote Control unit. Press the MENU (A)buttons to initiate the OSD (on screen display) menu.
- Page 5 Manual Ryf Remote Control for R-FHD-1080 II. Function Menu & Settings Chart The following chart presents all of the selectable functions and the correlating selectable setting adjustments for each function. For further details on the function menu an the setting please refer to the Ryf camera manual.
- Page 6 Manual Ryf Remote Control for R-FHD-1080 IV. Programming the Ryf OSD Renmote Control no. R-FHD-1080 (Assigning camera an functions to the buttons) In conjunction with the RFHD Ctrl Software, the Ryf Remote Control is designed to allow users to assing and control...
- Page 7 B. Assigning OSD Menu Navigation Functions tot he Buttons In conjunction with the Software the Ryf Remote Control for the R-FHD-1080 / R-HD720 camera is also designed to allow users to self- assign the keypad’s navigation function for the OSD menu.
- Page 8 Manual Ryf Remote Control for R-FHD-1080...
