Summary of Contents for Strobel BLACK PEDESTAL
Page 1

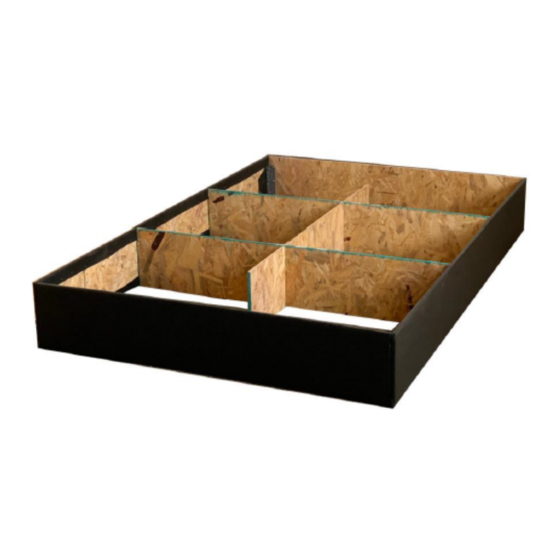

BLACK PEDESTAL ASSEMBLY INSTRUCTIONS Last Updated 04142021...
Page 2
(#10 x ½”), and 1 Phillips Drill Bit You will need a Power Drill or Phillips Screwdriver for this assembly. **STROBEL’S “SOF-FRAME” WATERBED PEDESTAL MODEL IS SLIGHTLY DIFFERENT. YOU WILL HAVE A TOTAL OF 6 UNFINISHED CENTER SUPPORT PIECES , INSTEAD OF 3. A TOTAL OF 4 PIECES WITH ONE SLIT AND 2 PIECES WITH TWO SLITS.
Page 3
Assembly Instructions: Lay your pedestal frame pieces flat on the ground in the arrangement in which they will be assembled: Your 2 long, black vinyl pieces are your Side Pieces . The short, black vinyl piece will go at the Foot of the bed.
Page 4
Stand the other Side Piece up on its side and ensure the black vinyl side is facing the outside. Line up the Side Piece to the other end of the Head Piece with the INSIDE edge of the side piece. Screw the Large Bracket into the inside corner of these 2 pieces using the Short Screws to secure them together.
Page 5
DOWN over the piece with two slits. The slits should lock each piece in place. ** FOR STROBEL’S “SOF-FRAME” MODEL ONLY, PLEASE REFER TO THE NEXT PAGE FOR A REFERENCE IMAGE OF THE CENTER SUPPORT PIECES LAYOUT **...
Page 6
* FOR STROBEL’S “SOF-FRAME” WATERBED MODEL ONLY, PLEASE ARRANGE THE CENTER SUPPORT PIECES AS SHOWN IN THE REFERENCE IMAGE BELOW.
Page 7
If your purchase included Wood Decking , lay down your Wood Decking pieces, one at a time, on top of the Pedestal. There will be an overhang on all sides. Thank you for your purchase! If you have any questions regarding your purchase, please contact Strobel Technologies directly (not your retailer) LEADS@STROBEL.COM 812-280-6000...
