KB Devices SONG:MODE Launchpad MKII Edition User Manual

Download this manual

KB Devices

kblivesolutions.com

Function:

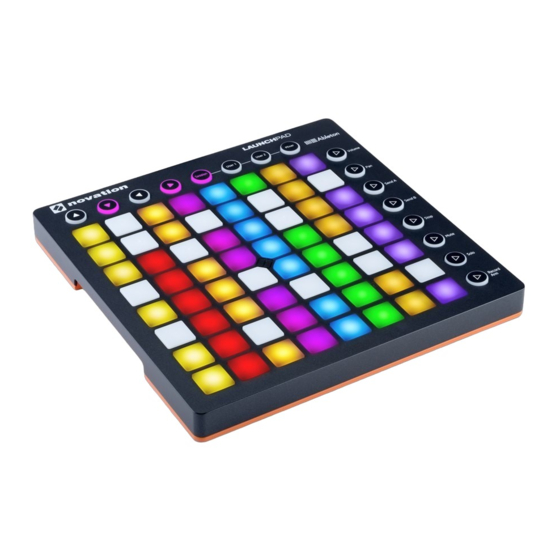

SONG:MODE is a Control Surface Script for Ableton Live 10 that lets you use your Launchpad in

a diﬀerent way, and makes it possible to have your whole set on a single page.

Installation :

• Copy the Script folder "Song_Mode_Launchpad_MK2" to your clipboard by right-clicking on it and

choosing Copy.

• You will have to paste it into Ableton Live's MIDI Remote Scripts folder, as described below.

Mac OS X

Open your Applications folder and right-click the Live application symbol. In the context menu,

click on Show Package Contents.

In the Ableton Live package, navigate to Contents > App-Resources > MIDI Remote Scripts.

Paste the folder you have copied to your clipboard into the "MIDI Remote Scripts" folder.

Windows

Go to Ableton Live's installation directory. By default, it is located here:

C: > Program Data > Ableton > Live 10 > Resources > MIDI Remote Scripts

Note: The Program Data folder may be hidden.

Paste the folder you have copied to your clipboard into the "MIDI Remote Scripts" folder.

• Re-launch Live

• In Live's Preferences, go to the Link/MIDI Tab and select SONG MODE Launchpad MK2 as a Control

Surface (instead of the normal Launchpad MK2 Script), with Inputs out Outputs set to Launchpad MK2

The concept of SONG:MODE is very simple :

To enter SONG:MODE on your Launchpad, press the yellow 'User 2' button.

On the top half of the pad matrix of your Launchpad, you can select a SONG, and then the

bottom half will display and launch the Scenes that belong to this SONG.

The selected SONG will blink, the playing SONG and Scene will blink in Green.

SONG:MODE

Launchpad MKII Edition

User Manual

Thank you for purchasing SONG:MODE

Need help?

Do you have a question about the SONG:MODE Launchpad MKII Edition and is the answer not in the manual?

Page 1 SONG:MODE Launchpad MKII Edition KB Devices User Manual kblivesolutions.com Thank you for purchasing SONG:MODE Function: SONG:MODE is a Control Surface Script for Ableton Live 10 that lets you use your Launchpad in a diﬀerent way, and makes it possible to have your whole set on a single page.
Page 2 Scroll through Songs or Scenes (if more than 32) Add Scene to a SONG Remove Scene Select SONG from SONG Stop all playing Clips Start and Stop Live Select and launch Scenes Select Scenes without launching • To add a Scene to a speciﬁc SONG, you just need to add (SONG#) somewhere in the name of the Scene, where # is the song number.
Page 3 • If you hold the Yellow bottom right button (‘Record Arm’) you can select a Scene without launching it. • The Red button (‘Stop’) activates the “Stop All Clips” button. • The Green button (‘Mute’) starts and stops Live’s playback. Finally, you will ﬁnd a Demo Live Set that you can launch straight away, that also includes a Max For Live device to let you rename Scenes quickly.
