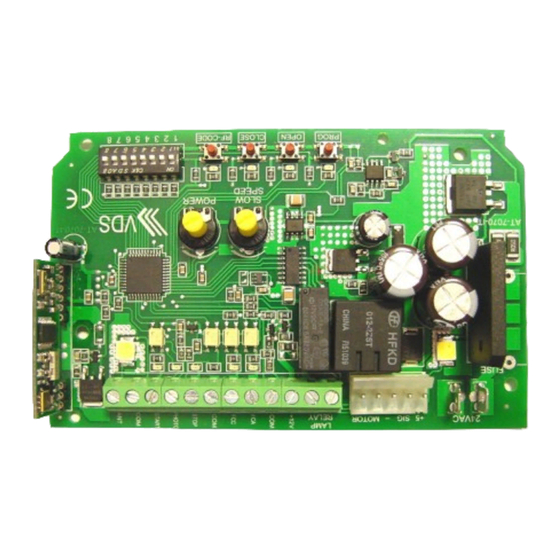

Electronic control board for sectional door operator
AT 7070
WARNING!! Before installing, thoroughly read this manual that is an integral
part of the pack
Our products if installed by qualified personnel capable to evaluate risks,
comply with norms UNI EN 12453, EN 12445
The CE mark conforms to European directive
EEC 89/336 + 92/31 + 93/68 D.L. 04/12/1992 N. 476.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for vds AT 7070
Summary of Contents for vds AT 7070
- Page 1 Electronic control board for sectional door operator AT 7070 WARNING!! Before installing, thoroughly read this manual that is an integral part of the pack Our products if installed by qualified personnel capable to evaluate risks, comply with norms UNI EN 12453, EN 12445 The CE mark conforms to European directive EEC 89/336 + 92/31 + 93/68 D.L.
- Page 2 LAY OUT RF CODE CLOSE OPEN PROG SLOW POWER SPEED 5 6 7 LAMP 24Vac MOTOR RELAY SIG +5 3 4 5 6 7 8 9 10 ELECTRICAL CONNECTION Antenna Start-stop-photocell common contact 1 mm² Start contact N.O. 1 mm² Photocell contact N.
- Page 3 LED MEANINGS TABLE DESCRIPTION N° LED DESCRIPTION N° LED RADIO PHOTOCELL CLOSE STOP OPEN CLOSURE LIMIT SWITCH PROGRAMMING OPENING LIMIT SWITCH START COURTESY LIGHT ON ON ON ON ON ON ON ON DIP SWITCHES FUNCTIONS 1 2 3 4 5 6 7 8 DIP 1 AUTOMATIC CLOSING: Door closes automatically after waiting the a.c.
- Page 4 AMPEROSTOP SENSIBILITY SETTING (ANTI CRUSHING) To adjust the sensibility of the amperostop do the following : Before programming stroke : Ÿ Set the dip switch N ° 2-3 (look table) Ÿ Adjust the trimmer TR1 in halfway Ÿ Program the stroke (see pag 5) Ÿ...
- Page 5 RADIO TRANSMITTERS PROGRAMMING Ÿ CODING : This control panel allows the storage rolling code . Ÿ PROGRAMMING: Press RF-CODE button , LED lights for 10 seconds, press the transmitter button you want to program. programming is completed. Ÿ DELETING CODES: To delete all codes in memory hold RF-CODE for 10 seconds until LED begins to blink.
- Page 6 SAFETY DEVICES FUNCTION PHOTOCELL (terminal 2-4) Occupancy of photocell causes : Ÿ Opening : no effect Ÿ Closing : immediate stop and return to the opening operation. AMPEROSTOP FUNCTION Opening : Ÿ Blocking the movement of the door Closing : Block ing and reverse in opening the movement of the door START COMMAND FUNCTION A START impluse by button or radio transmitter, with closed door, has the following function:...
- Page 8 CONTACTS : Via Circolare p.i.p. N° 10 65010 Santa Teresa di Spoltore (PE) - ITALY AUTOMAZIONE ACCESSI Tel. +39 085 4971946 - FAX +39 085 4973849 MADE IN ITALY www.vdsconsorzio.it - vds@vdsconsorzio.it...
