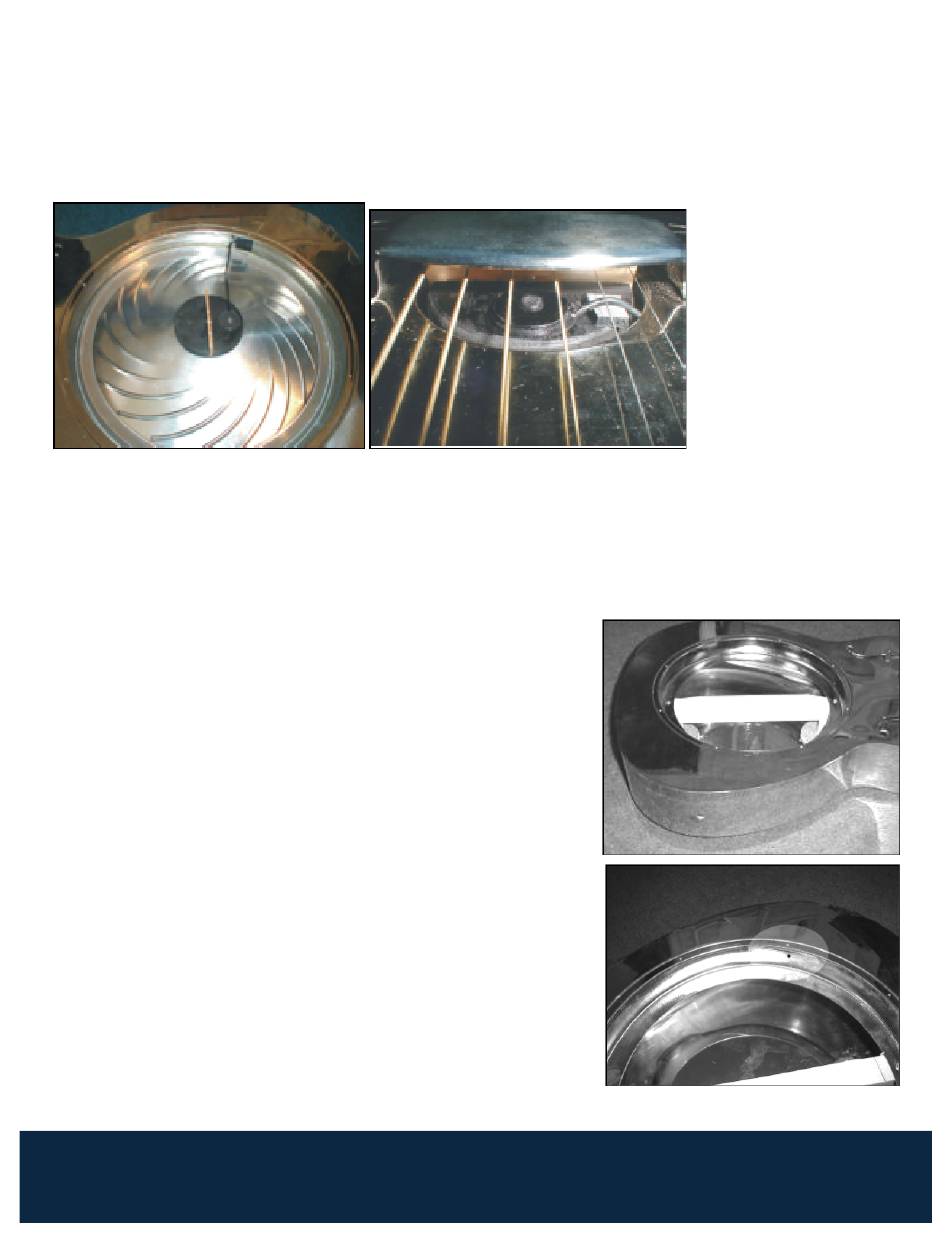

8. Install the pickup with the screw as shown in the photos below. For internal jack installation (see photo,
"jack mounting hole lower bout") the cable should point towards the high string side. For external jack
installation, the cable should point towards the string holder, perpendicular to the bridge (external jack
mount - see photo next page).
9. The pickup holding screw should be fastened tightly.
10. Reinstall the biscuit to the resonator cone.
FOR INTERNAL MOUNT ONLY
After completing the pickup/jack installation and re-installing all parts,
please insert the supplied rubber bumper as shown in the photo. This
puts extra tension on the pickup cable and ensures that the cable will
never come in contact with the resonator cone.

INTERNAL JACK INSTALLATION

1. Drill a 7/16" (11 mm) hole for the black nylon jack in the lower
bout as show on the photo.
2. Drill a 1/8" (3 mm) hole for the cable in the resonator-chamber-
rim as shown in the photo.
3. Unsolder the (external mount) silver jack.
4. Pass the open pickup cable end through the 1/8" (3 mm) hole.
5. Solder the nylon jack to the open pickup cable end. Make sure
that you solder to the correct side and the correct pins. Please
have a close look to the photo.
6. Install the jack.
7. Install the resonator cone and push the cable into the 1/8" (3
mm) hole until it is almost tight.
92798 Cape Arago Hwy, Coos Bay, OR 97420 | 541-888-3517 | Toll Free 1-800-867-6863 | www.kksound.com
Jack mounting hole in lower bout
Through h-hole in
resonator chamber rim
