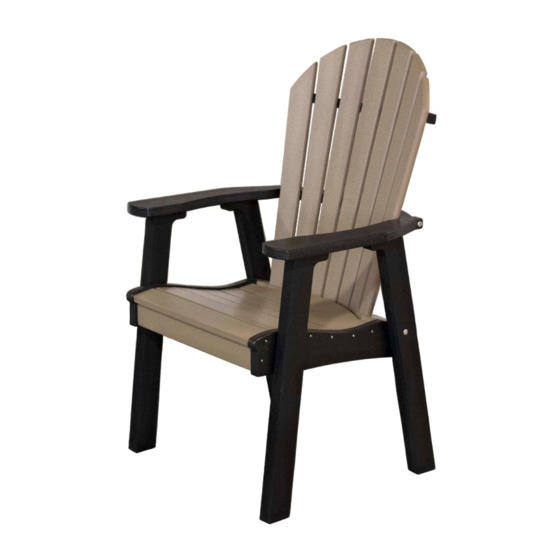

Adirondack dining chair

Download this manual

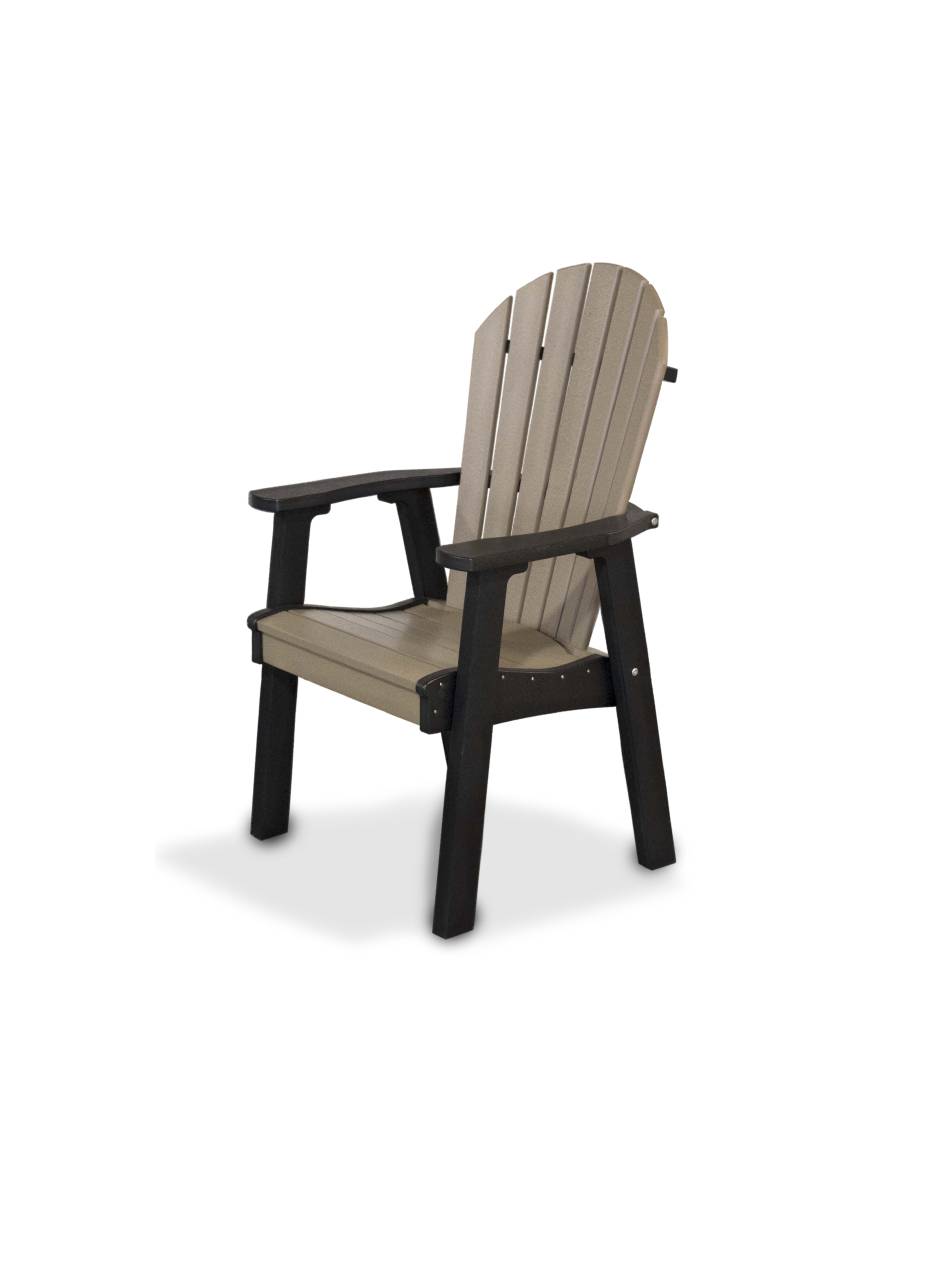

POLY ADIRONDACK

DINING CHAIR

ASSEMBLY MANUAL

Need help?

Do you have a question about the POLY and is the answer not in the manual?

Page 1 POLY ADIRONDACK DINING CHAIR ASSEMBLY MANUAL...
Page 2: Parts List
Parts List 2 front legs seat 2 back legs 2 armrests hardware pack back Tools Required For The Job 5/32” Hex Key (included) *NOTE: This Hex Key is used to tighten all the screws used in the assembly process.
Page 3 Step:1 Step:2 Begin by placing the seat on a clean, Fasten back leg to seat using 1 1/2" bolts. smooth surface. Fasten front legs to seat using 1 1/2" bolts (front legs are legs with two inset nuts). Step:3 Step:4 Repeat steps 1 and 3 on opposite side Note: the back leg only receives one bolt then your chair should look like this.
Page 4 Step:6 Step:5 Tighten bolts. Then repeat steps 5 and 6 Fasten armrest to front and back leg on opposite side. Tighten all bolts on using 1 1/2" bolt. Arrows identify two front leg. pre-drilled holes. Step:7 Step:8 Align pre-drilled holes with inset nuts Prepare to install back by threading a on bottom of back.
Page 5 Step:9 Step:10 Fasten armrest to center of back using a Congratulations! Your assembly is now 2 1/4" bolt. Tighten. Repeat on opposite complete. Your chair should appear like side. this when finished!
