Summary of Contents for Aquarii Zino

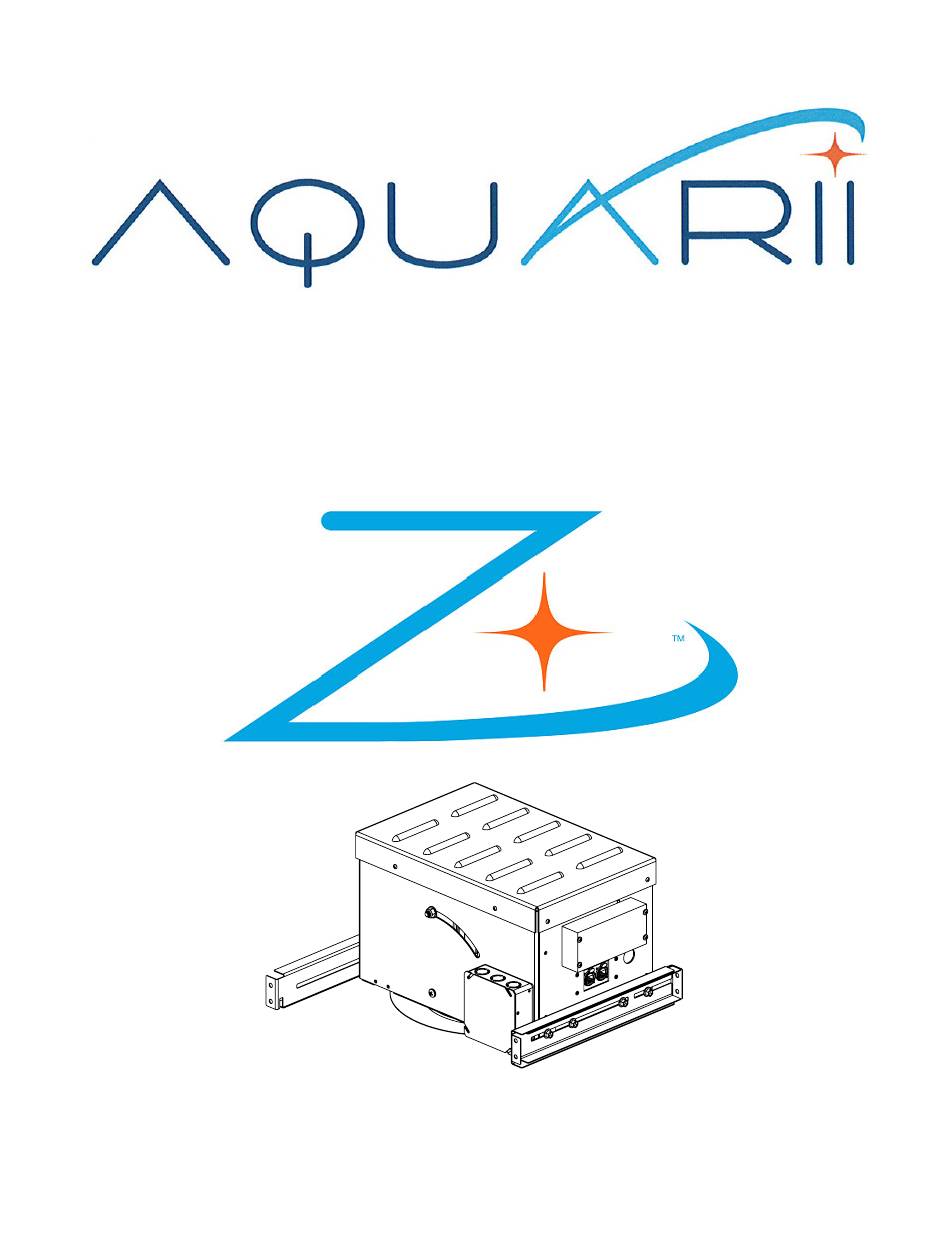

- Page 1 ZINO Slope Recessed Installation Manual DO NOT DISCARD THIS MANUAL P/N: 30-00302...
-
Page 2: Table Of Contents
Preface Details of this Manual Questions about this Manual? Cleaning and Maintenance Fixture Safety Warnings Aquarii Warranty Schedule “A” Aquarii Product Return Policy Mounting Option Slope Recessed Wiring Connections Secure Power Connections Communication Connections Secure DMX/RDM Connection DMX Addressing Information... -
Page 3: Preface
AQUARII WARRANTY This limited warranty is provided by Aquarii, Inc. indicated as Seller on the invoice provided to the original purchaser of the LED lighting Product. Seller warrants that the Product will be free of defects in material and workmanship which cause the Product to fail to operate in accordance with the performance specifications set forth in the documentation published for or provided with the Product (the “Specifications”). - Page 4 solely as a result of the failure of individual LED components to emit light if the number of inoperable components is less than 10% of the total number of LED components in the Product. If any Product covered by this warranty is returned by Purchaser within the Warranty Period referred to below in accordance with Seller’s Product Return Policy (noted in Schedule “A”), and Seller determines to its satisfaction that such Product failed to satisfy this warranty, Seller will, at its option, repair or replace the Product or the defective part, or reimburse Purchaser for the purchase price, subject to the limited warranty terms and conditions set forth in attached Schedule “A”.
-
Page 5: Schedule "A
2. Purchaser must notify Seller in writing within 30 days of discovering a defect in the product. Aquarii Product Return Policy 1. Before returning any product to Aquarii, please contact customer service to receive a RMA Number for your return. Product(s) returned without a RMA will delay or may void any return credit. -
Page 6: Mounting Option
MOUNTING OPTION Slope Recessed (Mounting #8) The parts of the Slope Recessed Mount are labeled as: • A - Top Cover • B - Junction Box Cover • C - Junction Box • D - Box Assembly • E - Adjustment Bolts •... -
Page 7: Wiring Connections
WIRING CONNECTIONS Secure Power Connections The information below also details the procedure required to secure the Constant Controls Connection for the Zino as shown in the Wiring Diagram below: Follow the steps below to secure the sites Power Connections to the mounted fixture. -
Page 8: Communication Connections
COMMUNICATION CONNECTIONS Secure DMX/RDM Connection See the DMX Wiring for a Zino LED Fixture in the diagram below: Follow the steps below to secure the DMX/RDM Connections to the fixture. 1. Determine the present Communication Board, then secure the DMX Communication Wiring to the board based on the local sites wiring options. -
Page 9: Dmx Addressing Information
Because of these various uses, mis-plugging unlike systems could cause serious damage. DMX Addressing Information The Zino LED Fixture requires one DMX Channel in a universe. See the example below for how to address the fixture. • Channel 1: Intensity (0-255) An intensity value of 0 will cause the fixture to not illuminate, while a value of 255 is the highest intensity. -
Page 10: Secure 0-10V Connection
Secure 0-10V Connection See the 0-10V Wiring Diagram for a Zino LED Fixture below: NOTE: All 0-10V Analog Wiring should be run as Class 2 per National Electric Code (NEC) Article 725. See the 0-10V Information section of this manual for more information. -
Page 11: 0-10V Information
Green LED diode not illuminated on Verify local site Power Supply is Power Supply Local Site Power issue on/running If the Zino is still not functioning as required after the Troubleshooting/Corrective Actions have been performed, please contact Aquarii Customer Service for further assistance.
