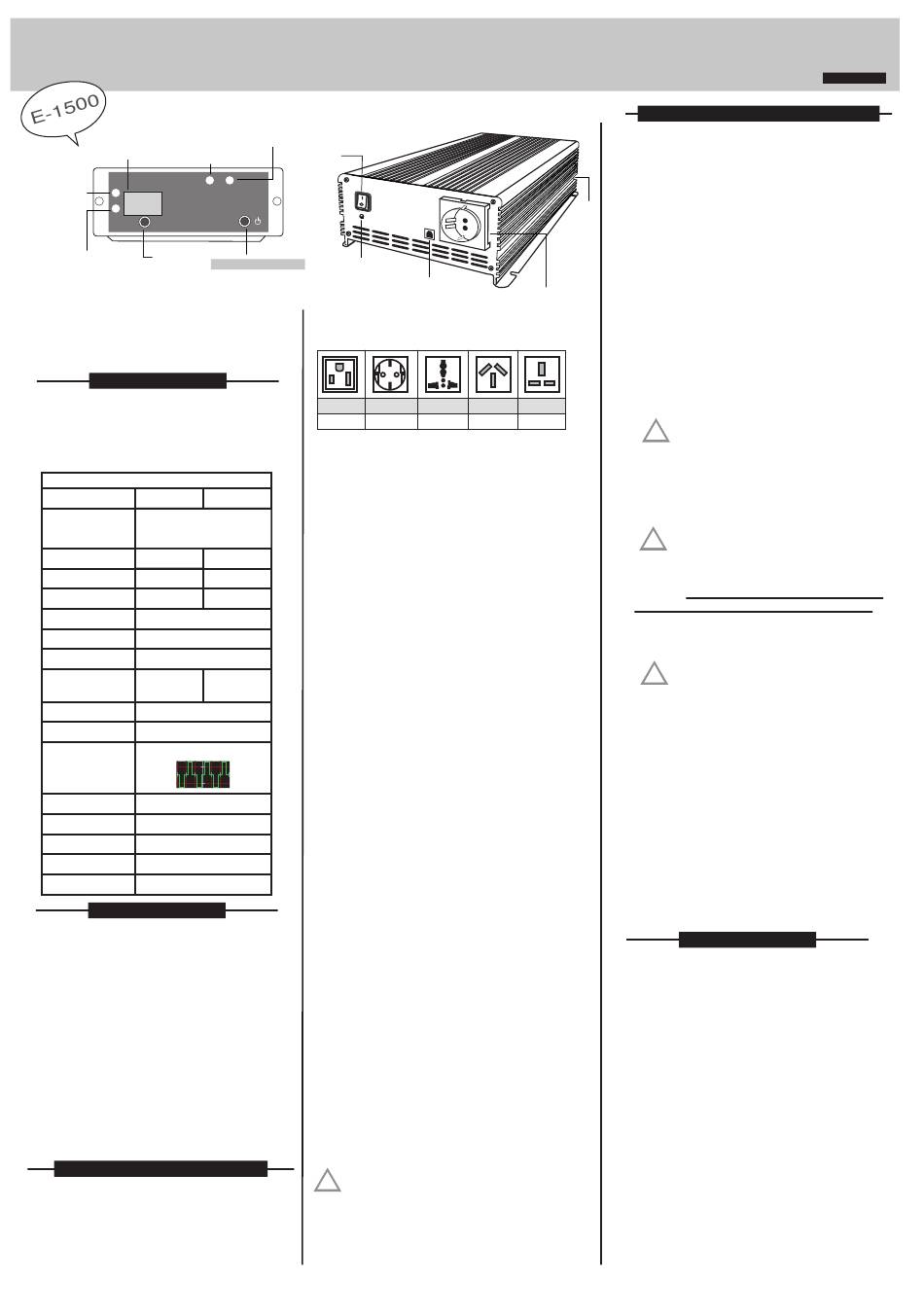

Maurer HT-E-1500-12 Manual

DC to AC
Remote Control
Output Watts Mode Indicator
Display
Input Volt Mode Indicator
Fault
Display
Fault Indicator
Overtemp
Select
Protection
Overtemp Protection Indicator
Select
Firstly, thank you for purchase
our product.
Please read this manual carefully before
installing or using this product.
Specification
Firstly, thank you for purchase our
product.
Please read this manual carefully
before installing or using this
product.
SPECIFICATIONS
Model No. HT-E-1500-12 HT-E-1500-24
AC Output Voltage
Input low voltage
±
DC11V 0.5V
alarm
Input low voltage
DC10.5V ± 0.5V
shut-down
Input high voltage
±
DC16V 0.5V
protection
Output power
continuous
50/60Hz
Output Frequency
Efficiency
No load current draw
0.4 A(12V)
Dimensions
395*179*82.5
(L×W×H)(by mm)
Net weight (by Kgs)
Modified Sine Wave
Output wave
Regulation
Over Temperature
55℃ ±5℃
protection
Cooling fan
Output reverse
protection
Overload protection
Introduction
The power inverter series are the member
of the most advanced line of mobile AC
power systems available.
This model is used in a wide range of
application including remote homes, RVs,
sailboats and powerboats. It will operate
most televisions and VCR, personal
computers, small appliances and tools such
as drills, sanders, grinders, mixers and
blenders.
To get the most out of the power inverter,
it must be installed and used properly.
Please read the instructions in this manual
before installing and using this model.
Name and Main function
1. Front view
a. ON/OFF switch:
Leave in the OFF position during installation.
Power inverter
Front view
ON/OFF
SWITCH
Input Output
Voltage Power
(vdc) (K Watt)
Power LED
ON/OFF switch
Please keep switch
in the OFF position
during installation.
b. AC outlet:
Outlet sockets available:
type2
USA
2.Remote Control:
a.Over temp protection:
LED sparkles when product temperature gets
high, it would shut down automatically while
temperature arrives 55±5℃.
AC100V
AC120V
b. Overload protection indicator:
AC230V
Orange LED lights when inverter shut down
±
DC22V 1V
due to overloading. Inverter would re-start
twice, if failed, inverter would shut down.
DC21V ± 1V
Please turn inverter OFF, reduce load and turn
±
DC32V 1V
inverter ON to reset.
1500W
c. Digital display of romote control:
±3%
Display under battery voltage mode and load
＞85﹪
watts (Kw unit) mode, you can select the mode
as your demand.
0.2 A(24V)
d.Fault Indicator : When the below status occur,
and Display shows the below words--
3.4 HVP: high voltage protection.
LVP: low voltage protection.
OLP: over load protection or short circuit protection.
e.Display: shows different status as point d, and
±8﹪ modes (input voltage and output watts).
f.Select: Input voltage mode and output watts (KW)
YES
selector.
YES
g.Input Volt Mode Indicator.
YES
h.Output Watts (K Watt) Mode Indicator.
3. Rear view:
a. Ventilation window:
Do not obstruct, allow at least 15cm for
airflow.
b. Battery terminals:
Connect to 12V/24V battery or other 12V/24V
power source. "+" is positive, "-" is negative.
Reverse polarity connection will blow internal
fuse and may damage inverter permanently.
c. Chassis ground lug:
Connect to earth ground or to vehicle chassis.
！
WARNING!!
Operation of the inverter without a proper
ground connection may result in an electrical
safety hazard.
Remote Control
AC receptacle
It is suitable for Australia ,
New Zealand, Canada,
America, Europe, Japan
and Universal type.
type3 type4 type5 type6
UNIVERSAL AUSTRALIA
EUROPE UK
manual
Quick hook - up and testing
If you would like to quick hook-up the power
inverter and check its performance before
going ahead with your installation, please
follow these guideline.
1. Unpack and inspect the power inverter,
Case
check to see that the power switch in the
OFF position.
2. Connect the cables to the power input
terminals on the rear panel of power
inverter. The red terminal is positive (+)
and black terminal is negative (-).
Connect the cables into the terminals and
tighten the wing nut to clamp the wires
securely.
3. Connect the cable from the negative terminal
of the inverter to the negative terminal of the
power source. Make a secure connection.
！
CAUTION!!
Loosely tightened connectors result in excessive
drop and may cause overheated wires and
melted insulation.
4. Before proceed further, carefully check if the
terminals connect correctly.
！
CAUTION!!
Reverse polarity connection will blow a fuse in
inverter and may permanently damage the
inverter. Damage caused by reverse polarity
connection is not covered by our warranty.
5. Connect the cable from the positive terminal
of inverter to the positive terminal of the power
source. Make secure connection.
！
WARNING!!
You may observe a spark when you make this
connection since current may flow to charge
capacitors in the power inverter.
Do not make this connection in the presence of
flammable fumes, explosions or fire may result.
6. Set power inverter switch to OFF position,
the indicator lights may blink and the internal
alarm may sound momentarily. This is normal.
Plug the test load into the AC receptacle on the
front panel of the inverter. Leave the test load
switch off.
7. Set power inverter switch to the ON position
and turn the test load on, the inverter should
supply power to the load.
Installation
1. Where to install
The power inverter should be installed in a
location that meets the following requirements:
a. Dry - Do not allow water to drip or splash on
the inverter.
b. Cool - Ambient air temperature should be
between 0°C and 40°C, the cooler environment
is better.
c. Ventilated - Allow at least 15cm of
clearance around the inverter for airflow.
Ensure the ventilation openings on the rear
and bottom of the unit are not obstructed.
d. Safe - Do not install the inverter in the same
compartment as batteries or in any
compartment capable of storing flammable
liquids such as gasoline.
2. Cables
DC to AC inverters requires high amperage/low
voltage DC power to low amperage/high voltage
AC power. To operate properly connect inverter
DC input terminals direct to battery with heaviest
wire available see chart below:
HT-E-152A2
