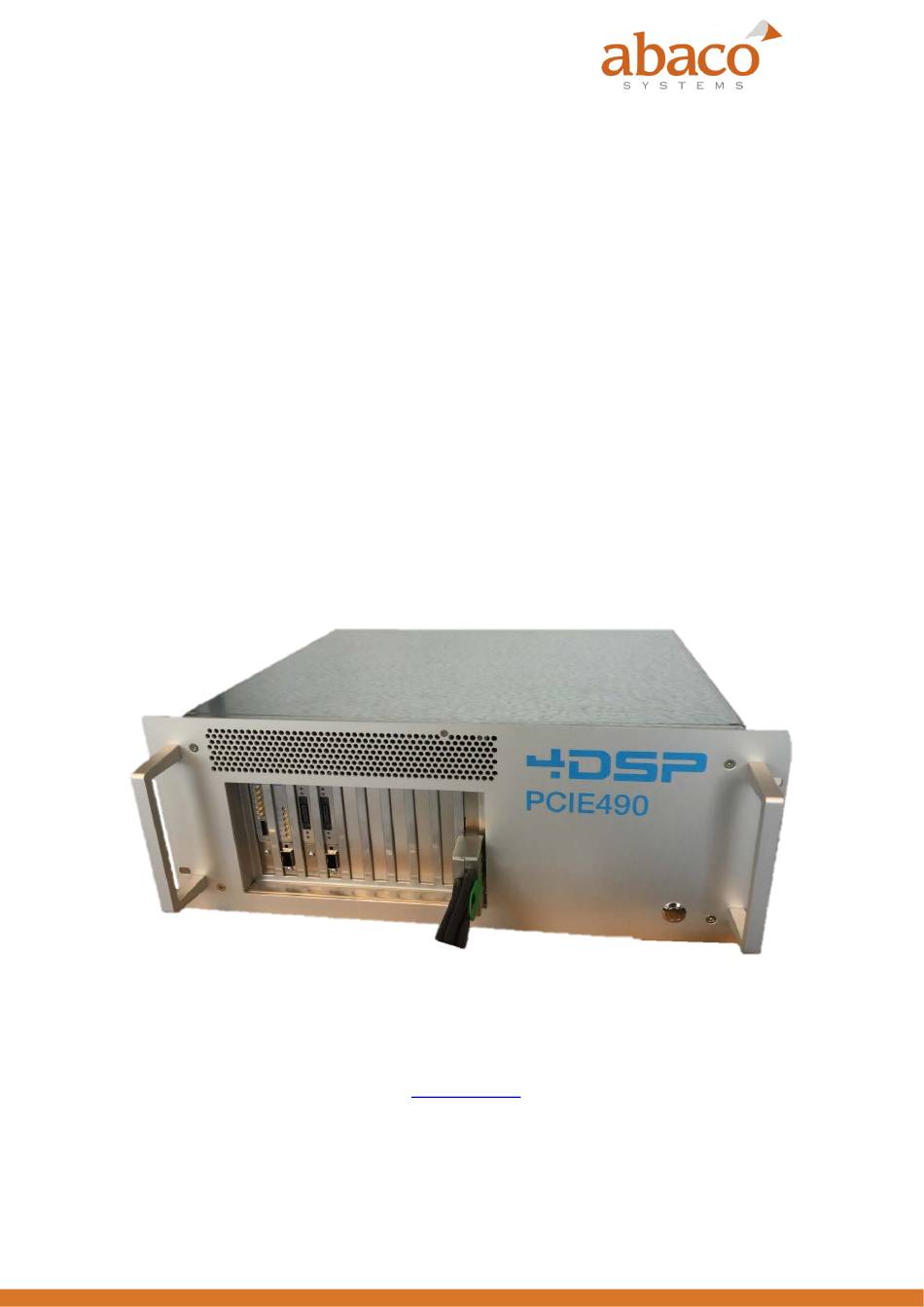

UM062 – PCIe490 User Manual
r1.1
PCIe490
PCIexpress expansion
chassis
User Manual
Abaco Systems, USA
Support Portal
This document is the property of Abaco Systems and may not be copied nor communicated to
a third party without the written permission of Abaco Systems.
© Abaco Systems 2016
UM062
www.abaco.com
- 1 -
Advertisement
Table of Contents
Summary of Contents for abaco systems 4DSP PCIe490
- Page 1 User Manual Abaco Systems, USA Support Portal This document is the property of Abaco Systems and may not be copied nor communicated to a third party without the written permission of Abaco Systems. © Abaco Systems 2016 UM062 www.abaco.com...
- Page 2 UM062 – PCIe490 User Manual r1.1 REVISION HISTORY Document Peer Quality Date Changes Author Review Approval Revision r1.0 Initial Release 07/13/2016 Added standard power cord delivery 11/28/2016 r1.1 information to §1.3 UM062 www.abaco.com - 2 -...
-
Page 3: Table Of Contents
UM062 – PCIe490 User Manual r1.1 TABLE OF CONTENTS Acronyms and related documents ................4 Acronyms ........................ 4 Related Documents ....................4 Requirements and handling instructions ..............4 Product Overview ......................5 Chassis Description....................5 PCIe host card and ....................6 System overview ..................... -
Page 4: Acronyms And Related Documents
UM062 – PCIe490 User Manual r1.1 1 Acronyms and related documents 1.1 Acronyms FPGA Mezzanine Card FPGA Field Programmable Gate Array JTAG Join Test Action Group Light Emitting Diode LVDS Low Voltage Differential Signaling Multi-Gigabit Transceiver Most Significant Bit(s) Printed Circuit Board Peripheral Component Interconnect PCIe PCI Express... -
Page 5: Product Overview

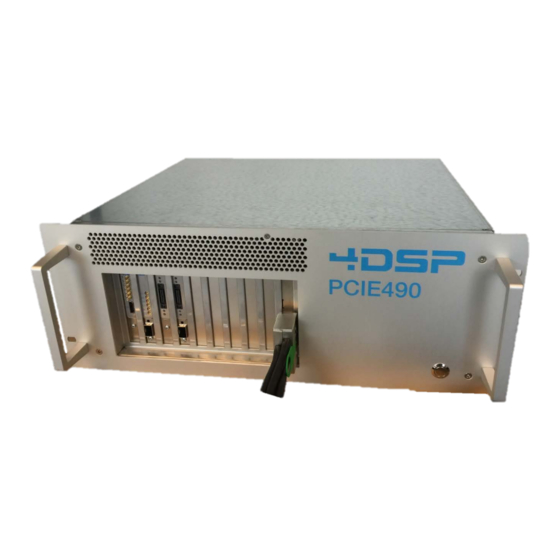

UM062 – PCIe490 User Manual r1.1 2 Product Overview The PCIE490 is a PCI Express (PCIe) expansion enclosure containing 8 x16 PCIe slots (4lanes connected per slot). The PCIE490 incorporates a PCIe expansion card which allows for a 16 lanes cable PCIexpress connection to a HOST computer. On the HOST computer side a x16 PCIe slot is required to plug the receiving PCIe expansion host card. -
Page 6: Pcie Host Card And
UM062 – PCIe490 User Manual r1.1 2.2 PCIe host card and The standard configuration incorporates a 3 meters long x16 PCIe expansion cable with a x16 PCIe host card. The PCIe x16 host card has to be installed in the host computer system. The 16 lanes expansion cable is then connected between the two x16 PCIe host cards. -
Page 7: Electrical Specifications
UM062 – PCIe490 User Manual r1.1 3 Electrical specifications Input power is 100-240VAC and is supplied through the IEC60320 C14 connector on the rear of the chassis. The power supply is rated for 750W. The following table shows the power supply specifications. - Page 8 UM062 – PCIe490 User Manual r1.1 The system can hold a maximum of 4 PC821 boards. Adhere to the following requirements when plugging a PC821 into the system: Place a PC821 only in slot 1,3,5 or 7 Always connect the auxiliary power connector to the PC821 The system can hold a maximum of 8 PC820 boards.
-
Page 9: Maintenance
UM062 – PCIe490 User Manual r1.1 4 Maintenance Dust buildup should be removed from the grates covering the fans on the backside of the chassis on a monthly basis. 5 Environment Environmental Level A Operating Temperature 5°C to 50°C Storage Temperature -10°C to 60°C Humidity-Operating <...
