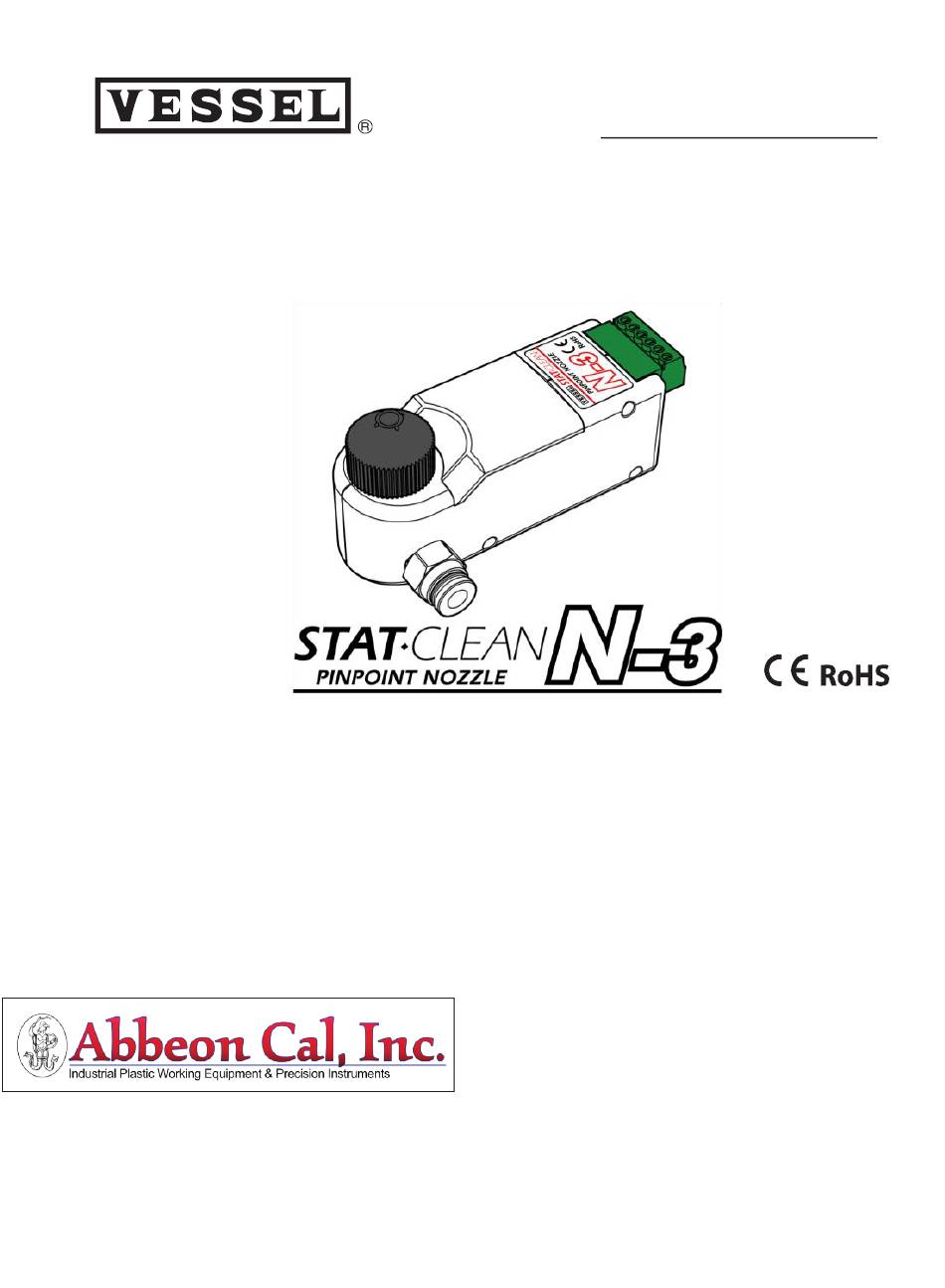

Thank you for purchasing our Stat Clean the N-3.
Read this instruction manual before use. Keep it for your ready reference.

Table of Contents

Abbeon Cal, Inc.,
1363 Donlon Street Unit 1,
Ventura, CA 93003-8387
800-922-0977 www.Abbeon.com
E-mail: abbeoncal@abbeon.com
I I n n s s t t r r u u c c t t i i o o n n M M a a n n u u a a l l
■ For Your Safety ······················· P.2
■ Features ································· P.3
■ Specifications ························· P.4
■ Performance ··························· P.5
■ External View ·························· P.5
■ Installation ····························· P.6
■ Operation ······························· P.7
■ Maintenance ··························· P.9
■ Troubleshooting ······················ P.11
■ Storage ·································· P.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAT CLEAN N-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vessel STAT CLEAN N-3

Summary of Contents for Vessel STAT CLEAN N-3

  • Page 1: Table Of Contents

    I I n n s s t t r r u u c c t t i i o o n n M M a a n n u u a a l l Y Y o o u u r r s s o o l l u u t t i i o o n n p p a a r r t t n n e e r r Thank you for purchasing our Stat Clean the N-3.

  • Page 2: For Your Safety

    * Safety instructions in this manual are categorized into two types by the degree of danger associated with each action or condition. Based on analyses conducted by Vessel, all instructions mentioned in this manual are of the CAUTION level.

  • Page 3: Features

    ■Features Features * AC Corona Discharge System AC corona discharge system secures reliable ion balance, not to be affected by the contamination of electrode needles. Its high voltage transformer generates ion abundantly. * Air Nozzle–type Ionizer The N-3 neutralizes static charge and removes dust by powerful blow of compressed air. Nitrogen gas can be used as a substitute for compressed clean air.

  • Page 4: Specifications

    ■Specifications PINPOINT NOZZLE Model : N-3 Ion generation method : High voltage AC corona discharge Applied voltage : AC 5.6 kV p-p (typ.) Input voltage : DC24V +/-5% Power consumption : 90mA max. Applied fluid : Clean air (0.1~0.6 MPa), Nitrogen gas (0.1~0.6 MPa) Air consumption : 210 Liter/min (0.3 MPa) Ozone generation...

  • Page 5: Performance

    ■Performance Decay Time 1) Standard Nozzle (+1000 to 0V) (-1000 to 0V) The data shown above was measured with initially charged voltage of ±1000V. (Air Pressure: 0.3 MPa Temperature : 25.0°C Humidity : 50.0%R.H. CPM : 20pF-150mm square) * Tube fitting Nozzle with a tube (O.D .6mm length 300mm) ■External View...

  • Page 6: Installation

    ■Installation CAUTIONS FOR INSTALLATION Use an air hose appropriate for required pressure resistance. REMEMBER Air hoses of insufficient pressure resistance will rupture and leak air. Ground the N-3 before use. REMEMBER Using this unit without proper grounding runs the risk of electric shock. Use the N-3 only in the environment specified as follows: Adverse environments cause product deterioration and breakdown.

  • Page 7: Operation

    ■Operation CAUTIONS IN OPERATION Do not use the N-3 for anything other than static erasure or dust removal. PROHIBITED If you notice any abnormalities, stop using the N-3 immediately. REMEMBER Supply clean dry air. Improper air quality can lead to the N-3 deterioration REMEMBER and contamination of the object.
  • Page 8 ■Operation 4) When the N-3 is activated, the top part will glow in green and ion will be generated. * Please turn off the unit when air supply is stopped. * Takes around 60 seconds until ion generation is stable after switching on. Air Control Air output has to be controlled by external equipment like an electro valve or a foot valve.

  • Page 9: Maintenance

    ■Operation Selecting nozzles Flare Nozzle and Tube-fitting Nozzle are available as option. Depending on installation place and object to be neutralized, you may choose an appropriae nozzle. Note: Please be sure to attach the nozzle in a correct way. High Voltage Warning and Automatic Shut-off When the incorporated high voltage transformer detects electrical overload, corona discharge stops and the LED light on the top turns red.
  • Page 10 ■Maintenance How to Clean the Casing Remove the dirt over the casing with dry, soft cloth. Never apply alcohol / thinner solvent / detergent. How to Clean the Electrode Needle Power supply to the N-3 should be shut off before cleaning the Electrode Needle. Please follow the instructions below: 1) Remove the Nozzle.

  • Page 11: Troubleshooting

    Reference: IEC61340-5-1, 2 Maintenance As the N-3 employs AC output for ion generation, its output ion balance is not adjustable. Please contact VESSEL for maintenance service if the ion balance is out of the specified range. ■Troubleshooting CAUTIONS IN TROUBLESHOOTING Do not use the N-3 in the following situations.
  • Page 12 Defective products must be returned to VESSEL Osaka Japan with proof of purchase date. And if your unit is out of warranty, VESSEL will quote repair charges necessary to ship your unit freight prepaid to where you have originally purchased.
