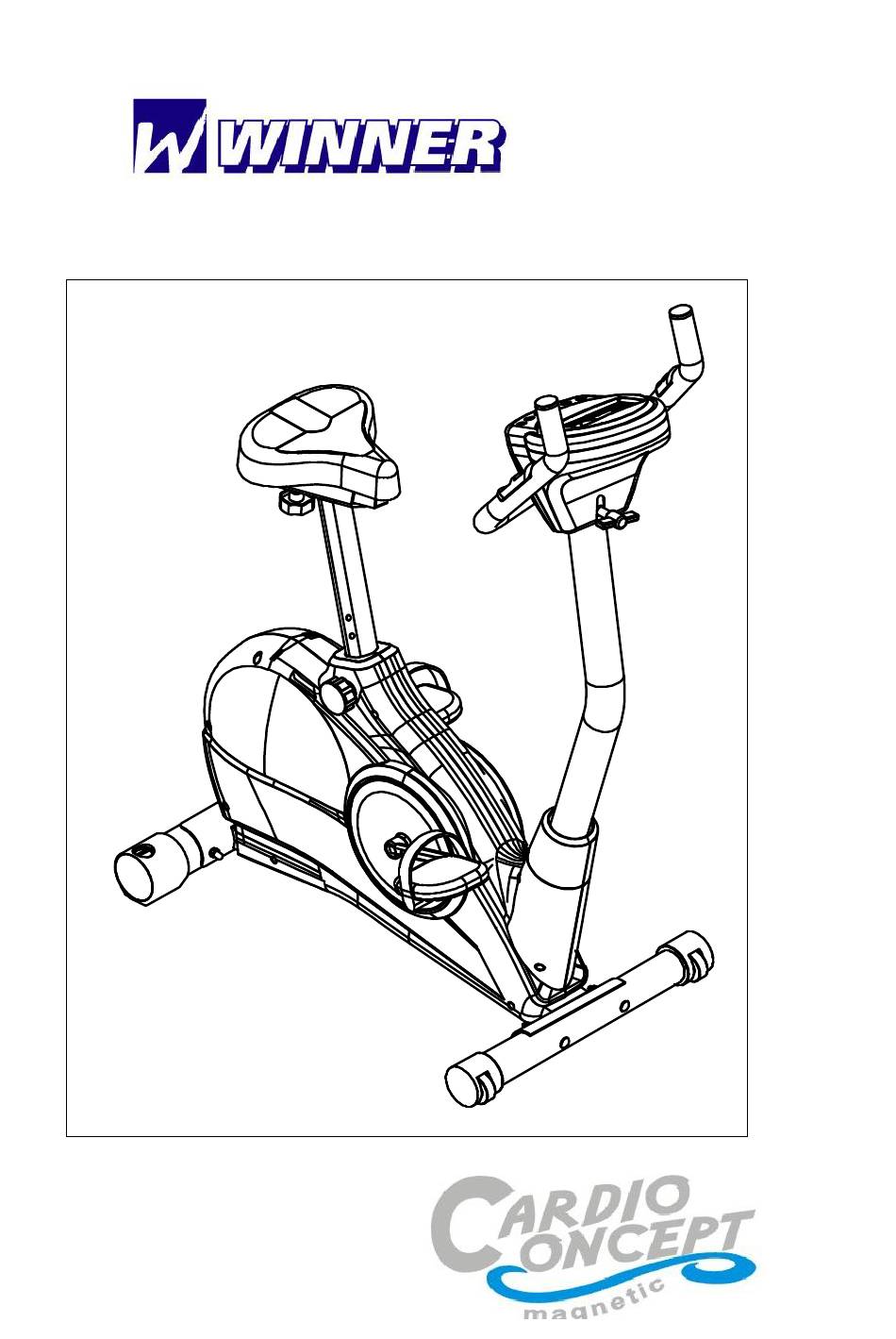

Winner Cardio Concept magnetic Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cardio Concept magnetic and is the answer not in the manual?

Questions and answers

Summary of Contents for Winner Cardio Concept magnetic

  • Page 2 EXPLODE PICTURE...

  • Page 3: Parts Lists

    PARTS LISTS DESCRIPTION QUANTITY COMPUER PULSE SENSOR 1SET FOAM GRIP FOR HANDLEBAR 1SET HANDLEBAR T-KNOB FOR HANDLEBAR BOLT FOR FIXING HANDLEBAR CARRIAGE SCREW ROUND-HEADED SCREW 6PCS SPRING WASHER 2PCS FLAT WASHER 2PCS METAL COVER FOR HANDLEBAR REAR COVER FOR COMPUTER HANDLEBAR POST SCREW FOR FIXING HANDLEBAR POST 4PCS...
  • Page 4 STEP I. 1. Assemble the front (28) and rear (27) stabilizer to the base post with 4 bolts (26) wave washers (23) and 4 nuts (22). 2. Assemble the left (24) pedal onto left crank and assemble right pedal (24) onto right crank.
  • Page 5 STEP 2. 1. Assemble the seat (16) to the seat slip set (17) and use the knob for saddle (19) and one flat washer (18) , tighten it. 2. Put the plastic sleeve (36) for seat upright into the base post. 3.
  • Page 6 STEP 3. 1. Assemble the cable of the exercise computer 1 (34) and the cable 2 (31) between the main frame and handlebar post as shown in the right picture. Make sure the assemble is tightness. 2. Assemble the handlebar post (13) to the main frame after the above one step.
  • Page 7 STEP 4. 1. Assemble the handlebar (4) on the handlebar fixture and put the metal cover (11) on the top of handlebar, just put all together with flat washer (10) spring washer (9) and two screw (6&7) and fix it a little bit. 2.
  • Page 8 STEP 5. 1. Assemble the bracket for front cover for computer (12) & rear cover for computer with 6 round-headed screws. Tighten the T-KNOB.
  • Page 9 Training Computer Button Function MODE : press this button to select function. :To reset the value of “Tome”,”Distance”, “Calories”, RESET “Pulse”and “Watt”. Keep pressing this button for 3 seconds,all the value on display will reset to zero and LCD display will go vack to the original face with word “U1”...
  • Page 10 from zero up to 99.59km Count-Down: To count the distance backwards from preset value down to zero. WATT : To display the power value which the user is working Rangeis from 0 to 999 watts. CALORIES: Count-Up accumulate total calorie consumption from zero up to 9999 cal.
  • Page 11 Step 1 1. Lnstall the batteries into the battery box on back side of the computer. 2. The LCD will show first the figure “78.0”,then switch to the main display with the word “U1” flashing. “78.0” is the wheel circumference for this ergometer preset in the software. “U1” means user 1.
  • Page 12 STEP 4 1. If you select “PROGRAM”, use “UP” and “DOWN” buttons to select the program from profile 1 to profile 12. press “MODE” button to finalize the program profile. 2. Press AGAIN THE “mode” BUTTON”. Then, you are now able to set your target value for function “...
  • Page 13 button to start your exercise program. 4. If you select “THR”,after pressing the “MODE” button,the figure “100” on the LCD of “PULSE” is flashing. Use “UP” and “DOWN” buttons to set your target heart rate. Press “MODE” again to finalize it. Press “ST/STOP” button to start your exercise program.
  • Page 14 the computer will beep 6 times, after 30 seconds, the computer function will stop automatically. 3. For a new exerciser to use this ergometer, to reset all the value which the former user kept in the computer,keep pressing the “RESET” button for 3 seconds and release. You may start the program from the beginning.
