Summary of Contents for Teknik 5424256

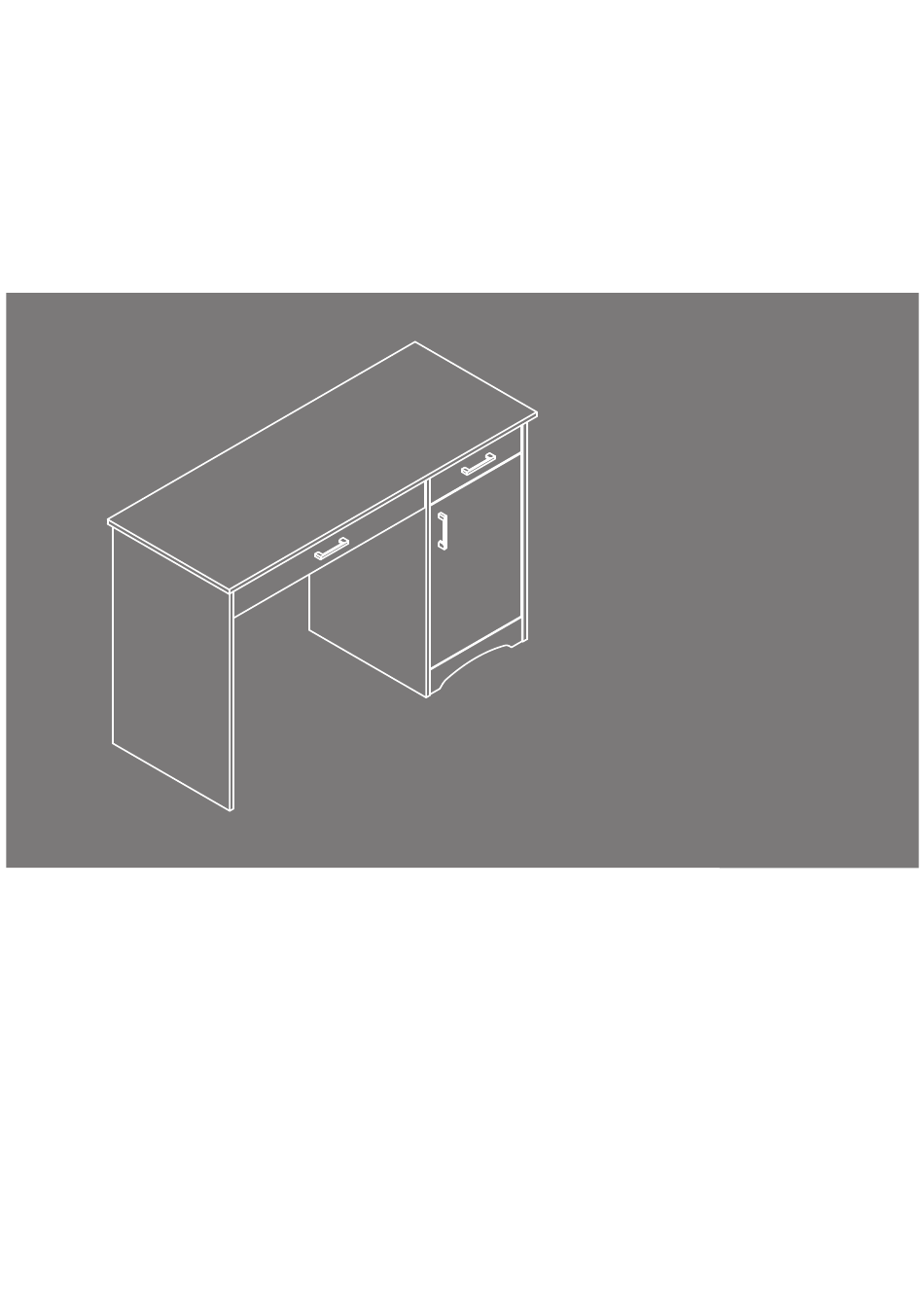

- Page 1 Teknik The original desktop. Essentials Computer Desk Model 5424256...
- Page 2 Table of Contents Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps 5-28 Hammer Not actual size Français 29-32 Español 33-36 Skip the power trip. Safety 37-38 This time. Warranty Page 2...
- Page 3 Now you know Part Identifi cation our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identifi cation to help identify similar parts. RIGHT END (1) ADJUSTABLE SHELF (1) KEYBOARD FRONT (1)
- Page 4 Hardware Identifi cation å Screws are shown actual size. You may receive extra hardware with your unit. LONG CABINET LONG CABINET LONG DRAWER LONG DRAWER RIGHT - 1 LEFT - 1 RIGHT - 1 LEFT - 1 SHORT CABINET SHORT CABINET SHORT DRAWER SHORT DRAWER RIGHT - 1...
- Page 5 Hardware Usage Guide HOW TO USE A HIDDEN CAM & CAM DOWEL Gently tap a CAM DOWEL into the part. Cam Dowel Push a HIDDEN CAM into the part. The arrow in the Arrow HIDDEN CAM must point toward the hole in the edge of the board.
- Page 6 Step 1 Push two HIDDEN CAMS (32) into the UPRIGHT (X). å Push the DOOR STOP (41) into the holes in the UPRIGHT (X). å Fasten the LONG CABINET LEFT (25) to the UPRIGHT (X). Use four GOLD 1/2" FLAT HEAD SCREWS (46). å...
- Page 7 Step 2 Push four HIDDEN CAMS (32) into the ENDS (V and W). å Fasten the LONG CABINET RIGHT (24) to the RIGHT END (V). Use four GOLD 1/2" FLAT HEAD SCREWS (46). å Fasten the SHORT CABINET LEFT (29) to the LEFT END (W). Use three GOLD 1/2" FLAT HEAD SCREWS (46). å...
- Page 8 Step 3 Fasten six ANGLE BRACKETS (36) to the SHELF (BB), å BOTTOM (DD), and SKIRT (EE). Use six GOLD 1/2" FLAT Some assembly HEAD SCREWS (46). (and snacks) required. NOTE: Be sure the edges of the ANGLE BRACKETS are å...
- Page 9 Step 4 Push the HIDDEN CAM (32) into the MODESTY PANEL (Z). å Fasten the UPRIGHT (X) and LEFT END (W) to SHELF (BB) å and MODESTY PANEL (Z). Use seven GOLD 1-1/2" FLAT HEAD SCREWS (44). NOTE: Be sure the WOOD DOWELS in the SHELF insert into å...
- Page 10 Step 5 Fasten the BOTTOM (DD) to the UPRIGHT (X). Use two å GOLD 1-1/2" FLAT HEAD SCREWS (44). Fasten the RIGHT END (V) to the BOTTOM (DD). Use two å GOLD 1-1/2" FLAT HEAD SCREWS (44). The ANGLE BRACKETS should be here.
- Page 11 Step 6 With a hammer, gently tap nine CAM DOWELS (34) into å the TOP (Y) and DRAWER FRONT (PP). (9 used) Page 11...
- Page 12 Step 7 Fasten the TOP (Y) to the ENDS (V and W), UPRIGHT (X), and å MODESTY PANEL (Z). Tighten seven HIDDEN CAMS. f a c s u r n i s h U n fi Page 12...
- Page 13 Step 8 Carefully turn your unit over onto its front edges. å Side Step: Make Make equal margins along all four edges of the BACK (AA). å nachos. (Optional, but recommended.) Fasten the BACK (AA) to your unit using the NAILS (40). å...
- Page 14 Step 9 Fasten the SKIRT (EE) to the RIGHT END (V) and UPRIGHT (X). å Use four GOLD 1/2" FLAT HEAD SCREWS (46). GOLD 1/2" FLAT HEAD SCREW (4 used in this step) Page 14...
- Page 15 Step 10 Fasten the KEYBOARD SIDES (GG) to the å KEYBOARD BACK (HH). Use two GOLD 1-1/2" FLAT HEAD SCREWS (44). GOLD 1-1/2" FLAT HEAD SCREW (2 used in this step) Edge with holes Wood dowels Edge with holes Finished surface GOLD 1-1/2"...
- Page 16 Step 11 Fasten the KEYBOARD HINGE (38) to the KEYBOARD å SHELF (JJ). Use four GOLD 1/2" FLAT HEAD SCREWS (46). Flip the KEYBOARD SHELF (JJ) over. Fasten the å KEYBOARD SHELF (JJ) to the KEYBOARD SIDES (GG). Use four GOLD 1-1/2" FLAT HEAD SCREWS (44). NOTE: Be sure the WOOD DOWELS in the KEYBOARD å...
- Page 17 Step 12 Fasten the SHORT DRAWER RIGHT (30) and SHORT å DRAWER LEFT (31) to the KEYBOARD SHELF (JJ). Use six GOLD 1/2" FLAT HEAD SCREWS (46). Roller end Roller end GOLD 1/2" FLAT HEAD SCREW (6 used for SHORT DRAWER SLIDES) Page 17...
- Page 18 Step 13 Flip the KEYBOARD SHELF (JJ) over. Fasten the å KEYBOARD FRONT (KK) to the HINGES on the KEYBOARD SHELF (JJ). Use four GOLD 1/2" FLAT HEAD SCREWS (46). GOLD 1/2" FLAT HEAD SCREW (4 used in this step) Page 18...
- Page 19 Step 14 Push two SMALL HIDDEN CAMS (33) into the DRAWER å SIDES (LL and NN). Insert two WOOD DOWELS (35) into the short edges of å the DRAWER SIDES (LL and NN). Arrow Arrow Page 19...
- Page 20 Step 15 With the palm of your hand, tap the DRAWER BOTTOM down into the groove. Groove Be sure the DRAWER BOTTOM inserts into the DRAWER FRONT groove. Fasten the DRAWER SIDES (LL and NN) to the å DRAWER FRONT (PP). Tighten two HIDDEN CAMS. Slide the DRAWER BOTTOM (OO) into the grooves in the å...
- Page 21 Step 16 Turn your DRAWER with the open side down. å Fasten the LONG DRAWER RIGHT (26) to the RIGHT å DRAWER SIDE (NN) and the LONG DRAWER LEFT (27) to the LEFT DRAWER SIDE (LL). Use six GOLD 1/2" FLAT HEAD SCREWS (46).
- Page 22 Step 17 Fasten the PULLS (39) to the KEYBOARD FRONT (KK) å and DRAWER FRONT (PP). Use four SILVER 15/16" PAN HEAD SCREWS (45). SILVER 15/16" PAN HEAD SCREW (4 used for the PULLS) Page 22...
- Page 23 Step 18 Carefully stand your unit upright. å To insert the drawer into your unit, tip the front of the å drawer down and drop the rollers on the drawer behind the rollers on the unit. Lift the front of the drawer up and slide it into the unit.
- Page 24 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following chart. Look out for: What can happen: How to avoid the problem: • Overloaded shelves or drawers. •...
