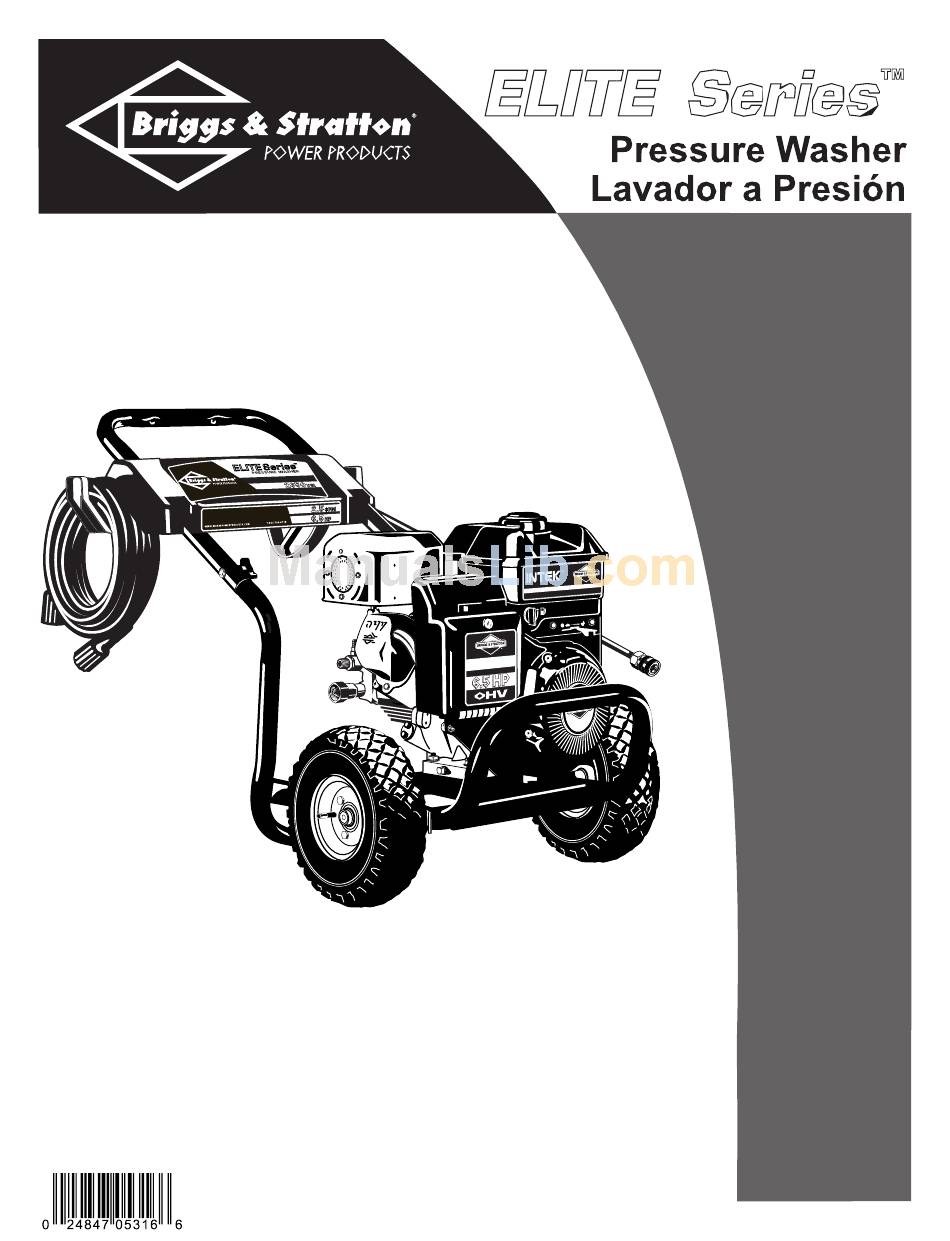

Model 01806 Shown
Preguntas? La ayuda es justa un momento lejos!
Call: Pressure Washer Helpline - 1-800-743-4115 M-F 8-5 CT
Llame: Línea Directa del Lavador a Presión - 1-800-743-4115 M-F 8-5 CT
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
Questions? Help is just a moment away!
JEFFERSON,WISCONSIN, U.S.A.
Owner's Manual

Manual del Propietario

01805
(2500 PSI)
01806
(2650 PSI)
01936
(2550 PSI)
Manual No. 191678GS
Revision 1 (03/03/2003)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1936 and is the answer not in the manual?

Questions and answers

Summary of Contents for Briggs & Stratton 1936

  • Page 1: Manual Del Propietario

    Questions? Help is just a moment away! Preguntas? La ayuda es justa un momento lejos! Call: Pressure Washer Helpline - 1-800-743-4115 M-F 8-5 CT Llame: Línea Directa del Lavador a Presión - 1-800-743-4115 M-F 8-5 CT BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC JEFFERSON,WISCONSIN, U.S.A.
  • Page 2: Equipment Description

    Warranty ........17 EQUIPMENT DESCRIPTION Read this manual carefully and become familiar with your pressure washer. Know its applications, its limitations and any hazards involved. Every effort has been made to ensure that information in this manual is accurate and current.
  • Page 3 Fire or explosion can cause severe burns or death. WHEN ADDING FUEL • Turn pressure washer OFF and let it cool at least 2 minutes before removing gas cap. • Fill fuel tank outdoors. • DO NOT overfill tank. Allow space for fuel expansion.
  • Page 4 • DO NOT by–pass any safety device on this machine. • Before starting pressure washer in cold weather, check all parts of the equipment to be sure ice has not formed there. • NEVER move machine by pulling on high pressure hose. Use handle provided on unit.
  • Page 5: Attach Handle To Unit

    • Select and install desired nozzle (if applicable). Attach Handle to Unit This manual describes assembly and use of three models (01805, 01806 and 01936). Please see the appropriate section for the handle instruction specific to your model. Pressure Washer...
  • Page 6 Insert “J” hook into second from left slot in accessory tray (Figure 4). Figure 4 — Install “J” Hook on Accessory Tray Pressure Washer Pinch chemical hose and slide it into metal clip as shown in Figure 5. Figure 5 — Slide Chemical Hose into Metal Clip Tilt unit up by handle and attach metal clip to rib on center underside of accessory tray (Figure 6).
  • Page 7: Add Engine Oil

    To attach handle supplied with two “L” hooks (Model 01936): Place handle assembly onto handle supports connected to main unit. Make sure holes in handle align with holes on handle supports (Figure 7). Figure 7 — Attach Handle to Base...
  • Page 8: Checklist Before Starting Engine

    (Figure 14). Pressure Washer Figure 14 — Connect the Garden Hose to Water Inlet Model 01806 Model 01805 and 01936 CAUTION! unrestricted garden hose between the pressure washer inlet and any flow shut off device, such as a ‘Y’ shut-off connector or other convenience-type water shut-off valve.
  • Page 9: How To Start Pressure Washer

    Squeeze spray gun trigger until a steady stream of water occurs. For models 01806 and 01936, place quick connect spray tips in slots on the holder attached to nozzle extension (Figure 15). Figure 15 — Install Spray Tips in Holder...
  • Page 10 4A. For model 01805, slide adjustable nozzle forward to low pressure mode. Detergent cannot be applied with nozzle in high pressure position. 4B. For models 01806 and 01936, make sure black spray tip is installed. Detergent cannot be applied with high pressure quick-connect spray tips (White,Yellow, or Red).
  • Page 11: Pressure Washer Rinsing

    Flush for 1-2 minutes. Automatic Cool Down System (Thermal Relief) If you run the engine on your pressure washer for 3-5 minutes without pressing the trigger on the spray gun, circulating water in the pump can reach temperatures above 125°F.The system engages to cool the pump by discharging the warm water onto the ground.
  • Page 12: General Maintenance

    GENERAL MAINTENANCE RECOMMENDATIONS The pressure washer warranty does not cover items that have been subjected to operator abuse or negligence.To receive full value from the warranty, the operator must maintain the pressure washer as instructed in this manual. • Some adjustments will need to be made periodically to properly maintain your pressure washer.
  • Page 13: Nozzle Maintenance

    Adjustable nozzle: Shut off engine and turn off water supply.
  • Page 14: Engine Maintenance

    NOTE: Model 01806 (2650 PSI) does not require any pump maintenance.The pump is pre-lubricated and sealed, requiring no additional lubrication for the life of the pump. For Model 01805 (2500 PSI) & 01936 (2550 PSI): Changing Pump Oil Change oil every 50 hours or once yearly, whichever occurs first.
  • Page 15: Preparing The Unit For Storage

    Sediments or minerals can deposit on pump parts and “freeze” pump action. If you do not plan to use the pressure washer for more than 30 days, follow this procedure: Flush chemical injection hose by placing filter into a pail of clean water while running pressure washer in low pressure mode.
  • Page 16: Troubleshooting

    Detergent fails to mix with spray. Engine runs good at no-load but "bogs" when load is added. Pressure washer stops during operation. Pressure Washer Cause Nozzle in low pressure mode. Water inlet is blocked.
  • Page 17 BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC EQUIPMENT OWNER WARRANTY POLICY Briggs & Stratton Power Products Group, LLC will repair or replace, free of charge, any part(s), of the equipment that is defective in material or workmanship or both. Transportation charges on parts submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for the time periods and subject to the conditions stated below.
  • Page 18: Instrucciones De Seguridad

    TABLA DE CONTENIDOS Reglas De Seguridad ......18-19 Ensamblaje ........20-23 Funcionamiento .
  • Page 19 PELIGRO Al motor funcionar, se produce monóxido de carbono, un gas inodoro y venenoso. El respirar el monóxido de carbono, producirá náusea, desmayo o la muerte. • Opere el lavadora de presión SOLAMENTE al aire libre. • Utilice un respirador o máscara siempre que exista la posibilidad de inhalar vapores.
  • Page 20 ADVERTENCIA Los motores en funcionamiento producen calor y gases de escape a altas temperaturas. La temperatura del silenciador y de las zonas cercanas puede alcanzar o superar los 65 ºC (150 ºF) Se pueden producir incendios o quemaduras graves. • NO toque las superficies calientes. •...
  • Page 21: Conecte El Manubrio

    MONTAJE IMPORTANTE: Lea totalmente el manual del propietario antes que intente ensamblar u operar su lavador a alta presión. Remueva el Lavador a Presión del Empaque Remueva la bolsa con las piezas, accesorios y las adiciones incluidas con el lavador de presión. Corte dos esquinas en los extremos del cartón desde la parte superior hasta la parte inferior, de tal manera que el pánel pueda ser doblado en forma plana.
  • Page 22 Flange Lavadora de Presión Para Conecte el Manubrio con Dos Perno "L" (Modelo 01936) Coloque el manubrio sobre los soportes del mismo que ya están adheridos a la unidad principal. Asegúrese de que los orificios en el manubrio estén alineados con los orificios en los soportes del mismo manubrio (Figura 34).
  • Page 23: Agregar Aceite Al Motor

    Agregar Aceite al Motor IMPORTANTE: Cualquier intento para arancar el motor antes de haberle proporcionado el mantenimiento apropiado con el aceite recomendado, podría ocasionar la falla del motor. • Coloque la lavadora a presión sobre una superficie nivelada. • Consulte el manual del propietario del motor para añadir al motor el aceite recomendado.
  • Page 24 Figura 41 — Conecte la Manguera para el Jardín, a la Entrada de Agua Modelo 01806 Modelos 01805 y 01936 Haga correr el agua a través de la manguera de su jardín por 30 segundos para limpiar cualquier escombro que se encuentre en ella. Corte el agua.
  • Page 25: Cómo Usar Las Boquillas

    Apriete firmemente el gatillo de la pistola para purgar de aire e impurezas el sistema de bomba. Para modelos 01806 y 01936, coloque el coloró rápido conecta puntas de rocío en las ranuras en el poseedor eso’s conectado a la extensión de la boca (Figura 42).
  • Page 26 Con la boquilla en la posición de alta presión no chorro. se puede aplicar detergente. 4B. Para modelos 01806 y 01936, asegúrese de que esté instalada la boquilla negra. Con las boquillas de alta presión con conector rápido (blanca, amarilla y roja) no se puede aplicar detergente.
  • Page 27: Sistema De Enfriamiento Automático (Alivio Térmico)

    Aplique el detergente sobre la superficie seca, comenzando en la parte inferior del área y dirigiéndose hacia arriba, utilizando movimientos largos, parejos y superpuestos. NO permita que el detergente se seque. Si permite que el detergente se seque, la superficie podría quedar con manchas.
  • Page 28: Recomendaciones Generales

    RECOMENDACIONES GENERALES La garantía de la máquina lavadora a presión no cubre los elementos que han sido sujetos a abuso o negligencia por parte del operador. Para hacer válida la cobertura total de la garantía, el operador deberá mantener la lavadora de presión tal y como se indica en el manual.
  • Page 29 Quite el en el filtro de la línea del otro fin de la extensión de boquilla. Use el alambre incluido en el juego (o un pequeño sujeta papeles) para liberar cualquier material extraño que esté tapando la boquilla (Figura 50). Usando una manguera de jardín, remueva cualquier desecho adicional, poniendo agua en la extensión de la boquilla (Figura 51).
  • Page 30: Mantenimiento Del Motor

    La pompe est pré-lubrifiée et scellée, et il n'est pas nécessaire de la lubrifier à nouveau. Para el modelo 01805 (2500 PSI) & 01936 (2550 PSI): Cambio del aceite de la bomba Cambie el aceite cada 50 horas o una vez al año, lo que suceda antes.
  • Page 31: Reparacion De Averias

    REPARACION DE AVERIAS Problema La bomba presenta los siguientes problemas: no produce presión, produce una presión errada, traqueteo, pérdida de presión, bajo volumen de agua. El detergente no se mezcla con el rociado. El motor funciona bien cuando no tiene cargas, pero funciona "mal" cuando se conecta una carga.
  • Page 32 POLÍTICA DE GARANTÍA PARA EL PROPIETARIO DE EQUIPOS BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC Briggs & Stratton Power Products Group, LLC reparará o sustituirá sin cargo alguno cualquier componente del equipo que presente defectos de materiales y/o mano de obra. Los gastos de transporte de las piezas enviadas para reparar o sustituir conforme a los términos de esta garantía correrán a cargo del comprador.
  • Page 33 Questions? Help is just a moment away! Preguntas? La ayuda es justa un momento lejos! Call: Pressure Washer Helpline - 1-800-743-4115 M-F 8-5 CT Llamada: Lavador a Presión Helpline - 1-800-743-4115 M-F 8-5 CT BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC IPL No.
  • Page 34 Part # Description 191678GS MANUAL, Owner’s 192745GS MANUAL, Illustrated Parts List 192657GS KIT, Decals BB3061BGS OIL, Engine 2550 PSI Pressure Washer Item Part # 10 192309GS 11 192128GS 12 191265GS 13 B4150GS 14 192199GS 15 192317GS 16 23139DGS 17 189943GS...
  • Page 35 VALVE, Seat Stainless 62 190581GS 68 190582GS BALL, Stainless Steel 69 190584GS O-RING 76 21783GS THERMAL RELIEF 77 190585GS OIL BOTTLE 2550 PSI Pressure Washer Item Part # A 190672GS 190670GS D 190590GS 190591GS 190592GS G 190593GS H 190594GS 189971GS...
