Summary of Contents for Teradek ace 800
- Page 1 Quick Start Guide...

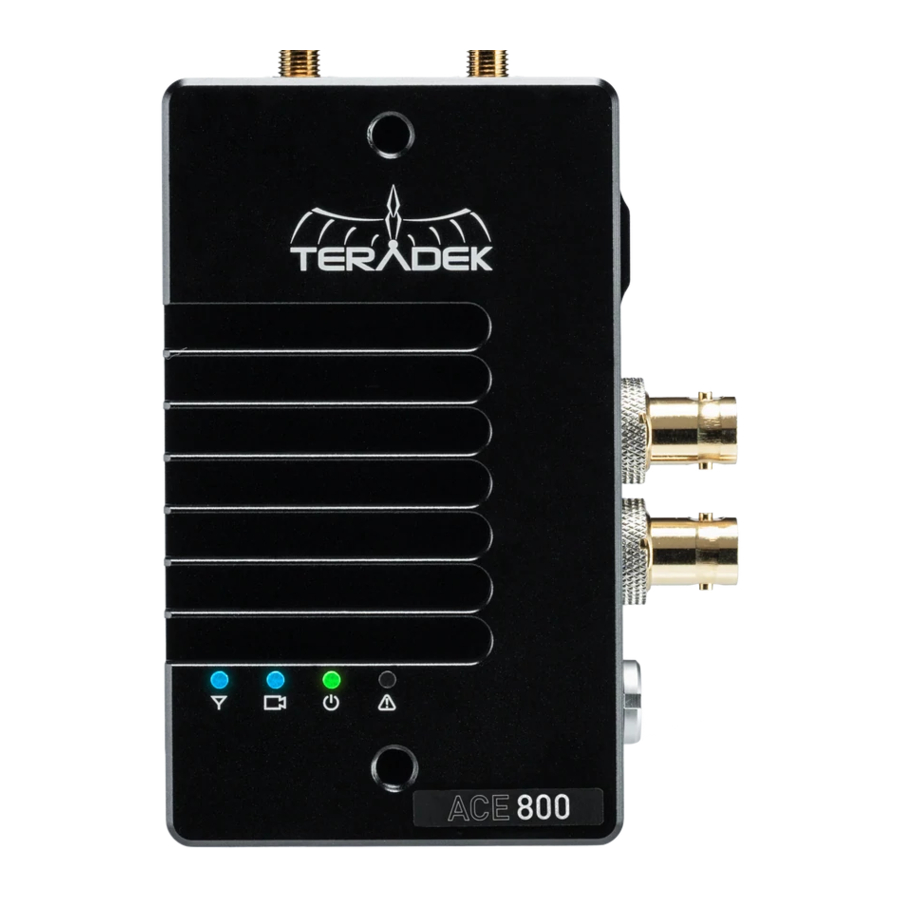

- Page 2 PHYSICAL PROPERTIES Ace 800 - TX Ace 800 - RX RP-SMA connectors On/Off switch 3G-SDI output 3G-SDI input Power input Reset button Link status LED Video status LED Power status LED Fault/Error LED Menu joystick HDMI output Micro USB...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Power and Connect ......2 Device Operation ........2 Power Connector/Pin-Out ....3 Custom 3rd Party Cables ..... 3 Mounting ..........4 On-Screen Display (OSD) Operation .. 5... -
Page 4: Power And Connect
POWER AND CONNECT Connect the output from your video source to the SDI input (D) on the ACE transmitter. Connect the SDI or HDMI output (C or L) from the ACE receiver to the video input on your monitor. NOTE: If mounted upright on a stand above the monitor, use a right-angle SDI adapter to relieve any strain caused by the weight of the cable, and to avoid damaging the SDI output’s internal connectors. -
Page 5: Power Connector/Pin-Out
POWER CONNECTOR/PIN-OUT ACE uses a 2−pin power connector Description * Pin 1 is closest to the red dot on the connector CUSTOM/THIRD PARTY CABLES • Test the power cable polarity with ONLY the power cable connected to Ace. • Check the power cable for shorts and proper grounding. •... -
Page 6: Mounting
• DO NOT OVERTIGHTEN CAUTION: SCREWS INSERTED INTO THE TRANSMITTER’S 1/4”-20 THREADED Ace 800 transmitter can HOLE. Doing so can damage the transmitter’s be mounted vertically chassis and internal components, voiding the on a camera warranty. -
Page 7: On-Screen Display (Osd) Operation
ON-SCREEN DISPLAY (OSD) OPERATION Main Status Screen - This screen displays the status of the wireless receiver, along with the current video resolution, frequency, and link quality (if connected). Press the Menu Joystick (K) to cycle through the menu options or to return to the Main Status screen. •... - Page 9 © 2019 Teradek, LLC. All rights reserved. v1.3...
