ViziT ODC-701-3.6 Operating Instruction

In case your camera does not operate properly, make sure that it is installed and wired properly, and check the
below suggestion:
1. When there is no image on the monitor's screen:
a. Check if your power supply unit(s) is plugged into the mains outlet.
b. Make sure that you use a recommended AC-DC power supply unit with output voltage 12 VDC.
c. Check that all cables are connected correctly, and there is no misconnection in the wiring.
2. When t he image is not clear (blurred):
a. Check that your monitor is correctly adjusted.
b. Make sure that the glass in front of the lens is clean, otherwise the image quality may be affected.
To clean the glass use a piece of soft dry cloth. Do not use liquid cleaners, aerosol cleaners or
3 . When the image is too dark or too bright:
a. Check your monitor's contrast / brightness settings.
b. Make sure that the camera ball is positioned correctly, and not pointed toward a corner or direct source of light.
4. When the colour is not displayed correctly with the lamplight illumination:
a. Check the lamps near your camera location. Note that filament incandescent lamps may affect the image
colours. For illumination of the area in front of the camera, use fluorescent or white LED lamps.
5. When the image has interference:
a. The camera may be close to a high voltage source, such as a power generator. If this is the case, change
location of your camera.
b. The video cables are not connected properly, check for any misconnection.
c. The length of the cable between the camera and monitor is more than 20m. Use a coax or composite cable for
video surveillance systems.
If the camera still does not operate properly, please contact the service representative. Do not attempt to service
the camera by yourself, refer all services to qualified personnel.
Manufacturer: MET Co. Ltd. China ,
Tech. support: www.vizit-group.com
4
Troubleshooting
ODC-701-3.6 –
and access control systems.
abrasive agents.
· In order to protect the camera, avoid placing it under direct sunlight
· Please ensure that the supply voltage is within the valid
· Do not attempt to service the camera by yourself. Please refer all services to qualified service personnel.
Camera
Operating instruction
Fastening kit
7
4
3
2
Figure 2 -

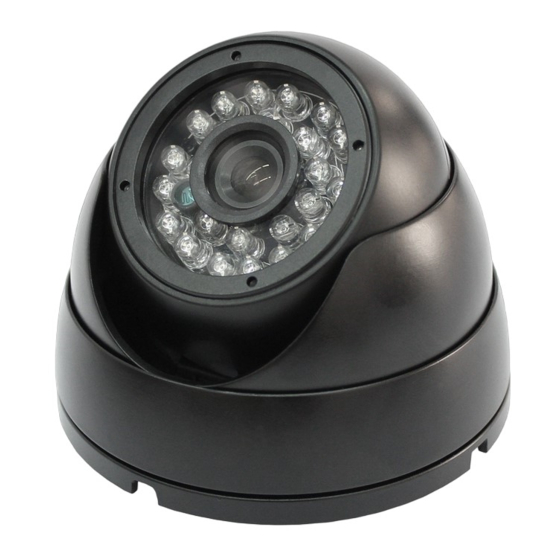

Hermetic Camera ODC-701-3.6
OPERATING INSTRUCTION
is a dome CCD colour camera for outdoor surveillance intended for use in
red
black
· Weather-resistant & Vandal-proof
black IP Rating: IP66
yellow
· 24 InfraRed LEDs
Colour image auto switch to B/W in dark environment
·
Wide range of operating temperatures
·
Figure 1 - Hermetic camera ODC-701-3.6
SAFETY INSTRUCTIONS
range indicated in
PARTS LIST
INSTALLATION
1. Remove the mounting base
(5) with the hex-nut wrench supplied, and unscrewing the
locking cover
2. Choose location* for the camera on a wall or the ceiling,
and fix the mounting base securely with screws
and anchors
1 3. Put the camera
on the mounting base Tighten the locking cover
enough space for the camera ball to rotate.
4. Connect the camera to your monitor and power supply unit.
Check if the monitor shows picture from the camera.
To adjust the picture, set the
position by rotating the ball and middle cover.
5. Fix the camera's position securely by tightening the
cover (4) and fastening the locking screw
* Choose the camera location with regard to the required field of view.
Camera installation
See Fig. 3 for the best camera location and its field of view.
VIZIT video doorphones
Metal housing
auto ON for illumination in the darkness
or atmospheric precipitation .
specifications .
1 pc.
1 pc.
1 pc .
(1) by loosening the locking screw
(4) counter-clockwise .
(6)
(7) supplied .
ball (2) , middle cover (3) and locking cover (4)
. (4) leaving
camera ball to the suitable
locking
(5) .
1
