Introduction:
Thank you for purchasing the DriveSmart Pro HD dash camera and GPS speed camera
detector.
We hope it gives you a safer and well-informed driving experience. Whilst protecting you from
crash-for-cash fraudsters and other drivers silly maneuvers the DriveSmart Pro HD will also
alert of pending speed camera locations, red light cameras and mobile speed camera zones to
allow you to drive smart and safely within the speed limits. With the constant threat of Mobile
laser as well as fixed camera locations the DriveSmart Pro HD is a perfect choice. Powered by
the Laser Elite GPS database. The most comprehensive in the UK.
Laser Elite has the most up-to-date and sophisticated database of
Mobile Laser
/ Safety Van /
Fixed camera locations available with over 10 years of developing laser detection, diffusing and
jamming devices. As one of the biggest threats to driving in the UK is mobile laser, Laser Elite
was the perfect choice for the database supplier, with the big advantage that database updates
are free for life.

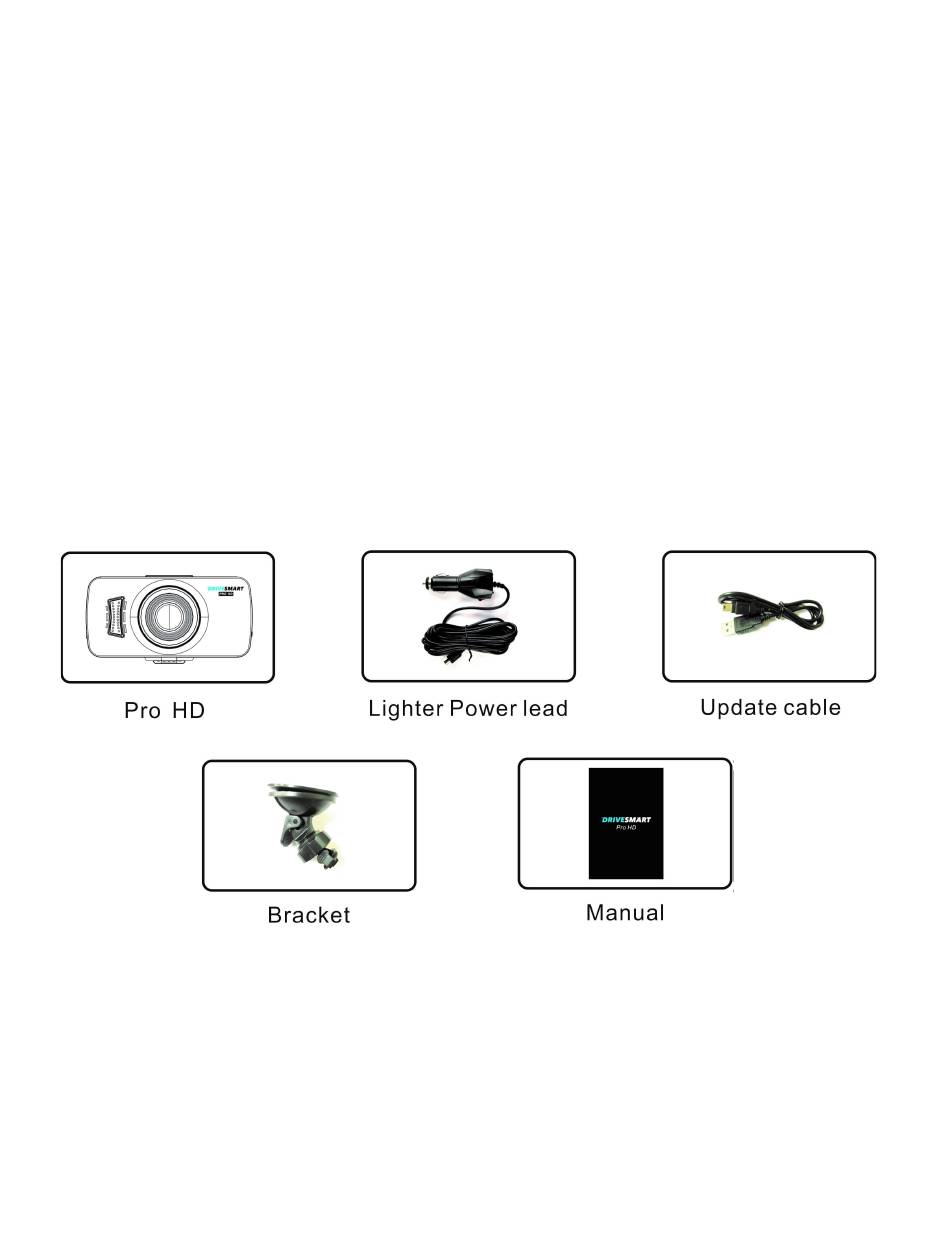

What's Included in the Box:
Additionally, a DriveSmart hardwire cable is available to purchase separately, as are spares of
the above parts if required.
Advertisement
Table of Contents
Summary of Contents for DriveSmart Pro HD
- Page 1 With the constant threat of Mobile laser as well as fixed camera locations the DriveSmart Pro HD is a perfect choice. Powered by the Laser Elite GPS database. The most comprehensive in the UK.
-
Page 2: Quick Installation
After powering up, the DriveSmart Pro HD will start up with a welcome message and will start searching for a satellite connection. If you have a TF/SD card inserted the unit will start recording automatically and the LED on the top left will start flashing to confirm this. - Page 3 Warning It may take one to five minutes for the unit to get satellite lock for the first time, with regular use this should speed-up, but it may take a little longer if you start driving. The screen will show Zero speed until a full satellite signal is received –...
-
Page 4: Keys And Functions
Keys & Functions Name Icon Function Introduction Press and hold the power button to turn on/off the unit. Quick press it to exit from the menu or stop recording. Power Button In recording mode: Quick press to reduce volume, press and hold to set to select Page Down KPH speedo Button... - Page 5 Menu 1 - Speed Camera Settings Name Description Submenu Dark Mode Screen is off rather than showing your speed and On / Off only comes on when you get a GPS or Laser speed camera alert. Speed Camera Allows you to turn the speed camera alerts on/off On / Off Detection Traffic Light Camera...
- Page 6 Menu 2 - Movie Mode Name Description Submenu Movie Mode Select the recording resolution 1920*1080 30fps / 1280*720 30fps / 640*480 30fps Movie Quality Choose REC Quality Super Fine / Fine Movie Clip Time Film cutting time OFF / 1min / 3min / 5min / 10min Movie Off Time Recording time for after without the power 0min / 5sec / 15sec / 30sec / 1min...
- Page 7 Menu 4 - Playback Name Description Submenu Volume Select the volume of playback 1～10 Delete Delete the videos or pics Delete one / Delete all Protect the videos or pics without been Protect One / Protect All / Unprotect One Protect deleted / Unprotect All.
-
Page 8: Data Correction
PC Playback Recordings can be played back on the DriveSmart Pro HD screen but if you want to view this on your PC then visit www.drivesmartpro.com where you can download the DriveSmart viewer software which will give you an overlay... -
Page 9: Product Technical Information
For updating the software and database Maps Tracking is supported via GPS, the DriveSmart Pro HD DVR will record and keep the coordinates and the driving speed and time by using the GPS signal. This information will be displayed when the footage is payed back on the PC with compatible playback software and it will connect to Google Maps and display the driving position using these maps. -
Page 10: Help? Troubleshooting
1.A camera is located on an adjacent road in less than 50 meters. 2.The fixed camera has been removed but your still get alerts. Update database, if alert persists inform DriveSmart through the website and we will investigate. 3.The distance of two continuous speed measuring stations is less than 100 meters.
