Det-Tronics Eagle Quantum Premier EQ3720RM Manual

description

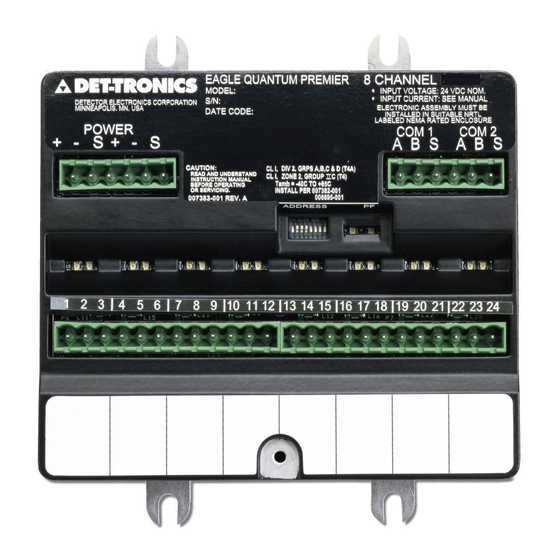

The 8 Channel Relay Module is specially designed to
expand the Output capability of the Det-Tronics Eagle
Quantum Premier ® System.
The unit is designed to provide eight relay output
channels for use with non-supervised devices (PLCs,
fans, dampers, motor control centers, etc.) or devices
with their own supervision.
System status can be determined using the trouble-
shooting procedures, Eagle Quantum Safety System
Software (S 3 ) and the status indicators on the module.
LED inDicators
LEDs on the front panel of the relay module are
provided for indicating device status. The LED's are
tested upon power-up to verify their operation.
The relay module has two LEDs for the device and
two LEDs for each channel. On the device level, one
green LED indicates power, while the other amber
LED indicates a LON communication fault. For each
channel, one red LED indicates channel activation
and the other amber LED indicates that the module
operating voltage is low or that the module has not
been configured (all eight channel LEDs blink).
Mounting
The relay module is DIN rail or direct panel mountable
for configurations requiring installation in NEMA or
IP enclosures. DIN rail and mounting clip options
must be specified at the time of order. Refer to the
"Specifications" section for mounting arrangements and
dimensions.
3.1 ©Detector Electronics corporation 2014
sPEciFication Data
Eagle Quantum Premier
8 Channel Relay Module
FeAtUres
• Expands the output capabilities of the Det-Tronics
Eagle Quantum Premier
• Individual channel LEDs indicate Active status
• Provides remote output capabilities via LON/SLC
• Panel or DIN rail mounting
• Power LED display
• Plug-in wiring connectors
• RFI and EMI hardened (CE Marked)
• Programmable normally energized/de-energized
contacts
• Programmable failed state on loss of communication
with controller (Fail on / Fail off / Hold last state).
EQ3720RM
® system
9/14 90-1181
®
