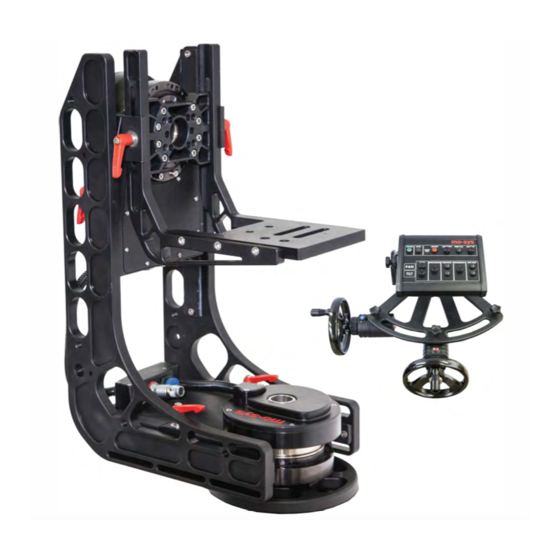

Summary of Contents for Cranium MO-SYS L 40

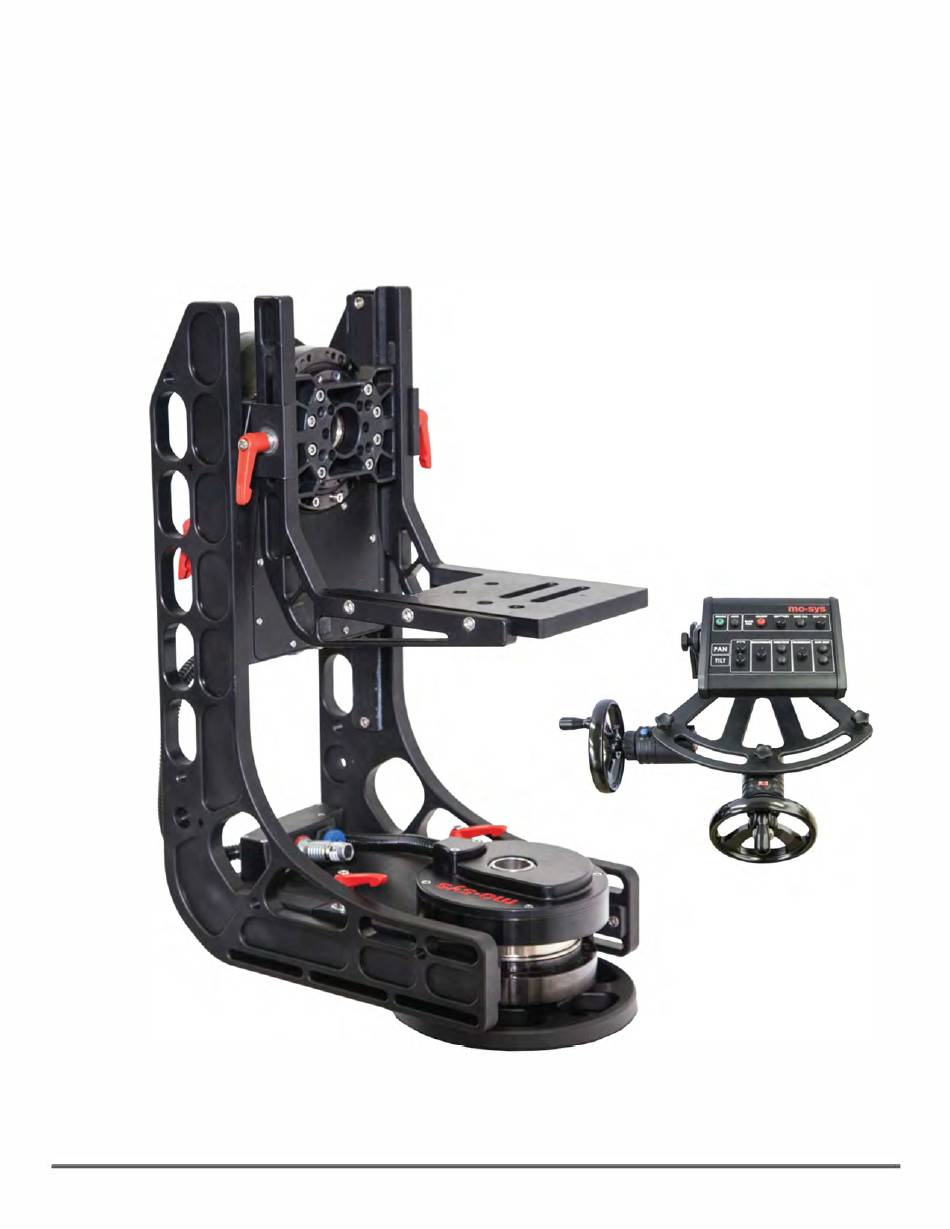

- Page 1 MO-SYS L 40 Quick Set-up Guide REMOTE HEADS...
- Page 2 MO-SYS L 40 Quick Set-up Guide REMOTE HEADS The Mo-Sys L40 was designed to be set-up and operational in minutes. This reference quide is for basic operations. For more detailed instructions and information see the full Mo-Sys L40 Manual. 1. Remove the cable tray from the Console Kit.
- Page 3 MO-SYS L 40 Quick Set-up Guide REMOTE HEADS 1. Press to turn on head (after on/off switch on back of the console is on), LED turns green when enabled 2. Locks pan and tilt, LED turns red 3. Turns Back Pan on, LED turns red. Adjust sensitivity down if head is vibrating.
- Page 4 MO-SYS L 40 Quick Set-up Guide REMOTE HEADS Power Supply w/ AC Cable and XLR Moy/Castle MoSys L40 Remote Head w/ Terminator and DC-DC Power Supply Panasonic 910 w/Zacuto Cable Coupler Quick Release Adaptor...
- Page 5 MO-SYS L 40 Quick Set-up Guide REMOTE HEADS Monitor Power Adaptor Zacuto Bracket for Panasonic Monitor Operatorʼs Console w/ Pan and Tilt Encoder, Encoder Cable 50 cm MoSys Cable Console Bracket and Terminator Wheels x 2 Moy Nut MoSys Cables x 2...
