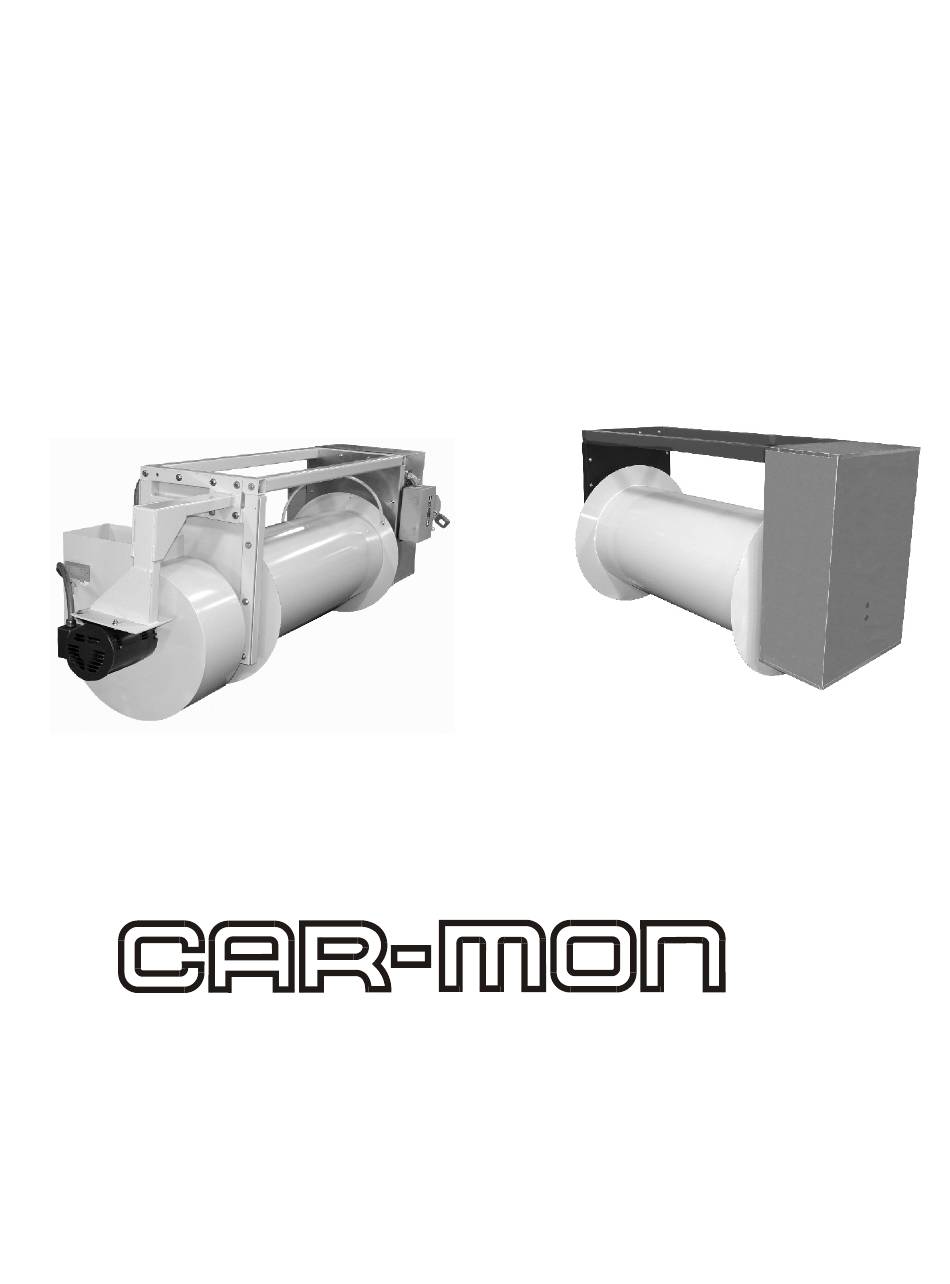

- Page 1 INSTALLATION AND OPERATIONS MANUAL POWER OPERATED TUBING STORAGE REEL MODEL TSR-P 18" DIAMETER OVERSIZE DRUM PRODUCTS, INC. 1225 Davis Road Elgin, IL 60123 Phone (847) 695-9000 Fax (847) 695-9078...
- Page 2 C. Up/down control, either wall mounted or a hanging pendant and any optional components. Check for any damage that may have been caused by shipping. If concealed damage is found, report it to the carrier immediately. Car-Mon cannot be responsible for any damage not reported to the carrier in a timely manner.
- Page 3 Check to make sure tube is clear and that no foreign object is lodged in tube. Make sure exhaust conditions have not changed. (Attaching to a larger engine different from the original specification or increased RPM testing). CAR-MON PRODUCTS, INC. 1225 Davis Road Elgin, IL...
- Page 4 The only field wiring that is required is power wiring to the electrical junction box mounted on the assembly, and the wiring between the "UP/DOWN" push button station. (Furnished by Car-Mon Products) Please see wiring diagram. NOTE: If hanging pendant option is supplied, the black & red wires are for the up control. The green & white wires are for the down control.
- Page 5 LIMIT SWITCH ASSEMBLY DOWN ADJUSTMENT ADJUSTMENT NOTE: SOME REELS OF SPECIAL CONSTRUCTION MAY DIFFER FROM PHOTO ABOVE. LIMIT SWITCH ADJUSTMENT BEHIND REMOVABLE PLUGS CAR-MON PRODUCTS, INC. 1225 Davis Road Elgin, IL 60123 Phone (847) 695-9000 Fax (847) 695-9078 Page 4...
- Page 6 DRIVE CHAIN DETAIL LIMITED WARRANTY Car-Mon Products, Inc. shall replace or repair at its discretion any products or components sold or manufactured which prove to be defective in workmanship or materials within 1 year from date of shipment. The foregoing is in lieu of all warranties, expressed or implied, and all other obligations or liabilities on behalf of the company, regarding products it may manufacture or sell.
