RGB Networks BNPxr Quick Reference

1
Parts List
Before you begin the installation of the BNP you will need the
following items.
Included items:
• Populated BNP chassis
• AC power cord, included if AC power supply is used
• DC connector cables, if DC power supply is used
• Front and rear rack mount brackets
• 22 rack mount bracket screws
• 1 M4 grounding nut
Other required items (not included):
• Phillips screwdriver
• 8 rack mount screws
• Crossover cable long enough to connect the BNP
and the management workstation
• Workstation for configuration
• 1 or more Gigabit Ethernet copper or optical SFP
modules
2

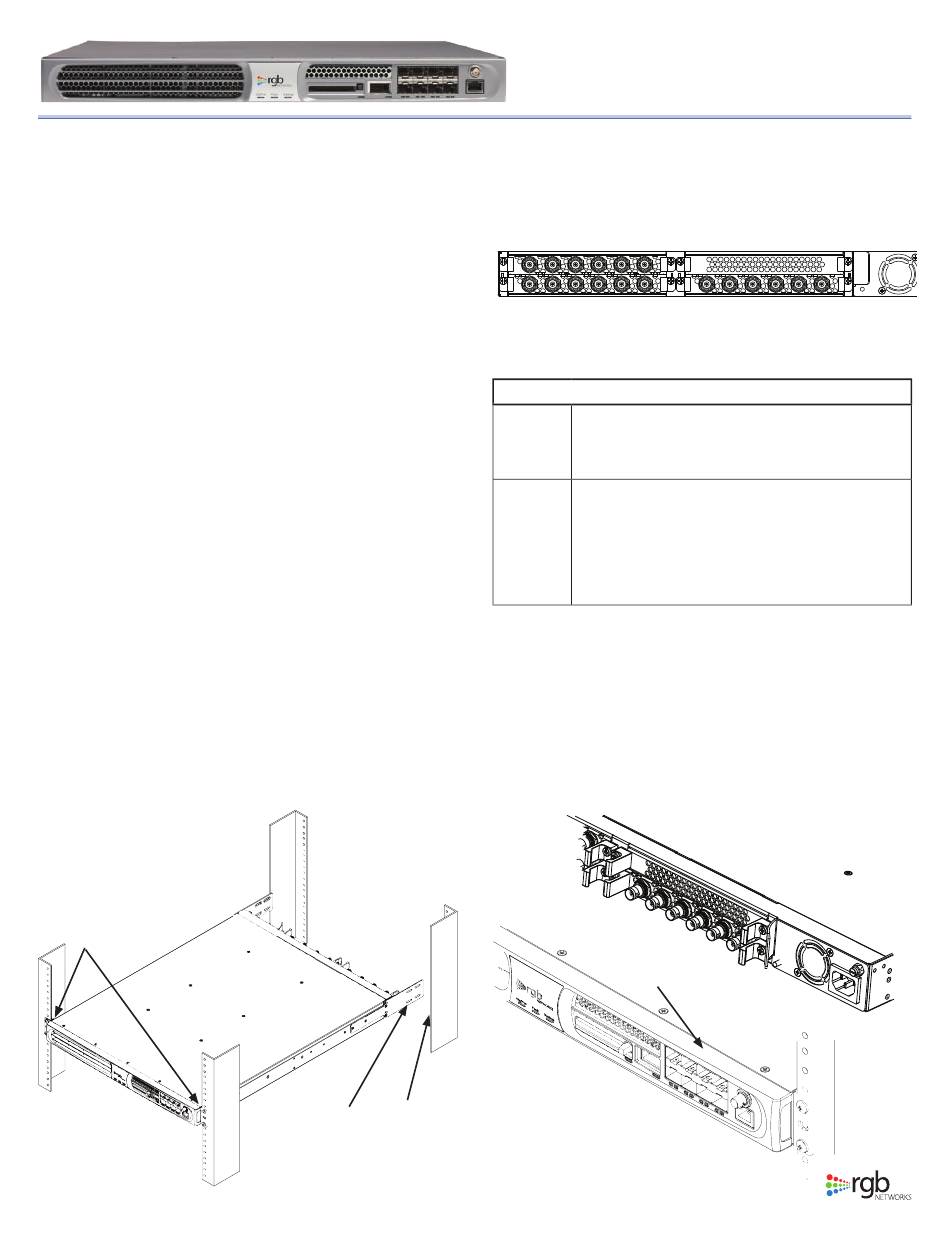

Rack Mount the BNP
1. Using the provided screws, attach the front rack mount
bracket to one side of the chassis, then attach the rear rack
mount bracket. Repeat on the other side of the chassis.
2. Secure the front of the chassis to the rack. Connect the
rear rack mount extensions between the rear rack mount
brackets and the rack.
3. Slide the mounting brackets to the correct distance and
secure them.
4. Ground the chassis.
Attach the BNP
chassis to the
front of the rack
Start Here
Twelve Steps to Installing and Configuring the BNP
B
A
Attach the rear mounting
bracket to the BNP chassis (A)
and then to the rack (B)

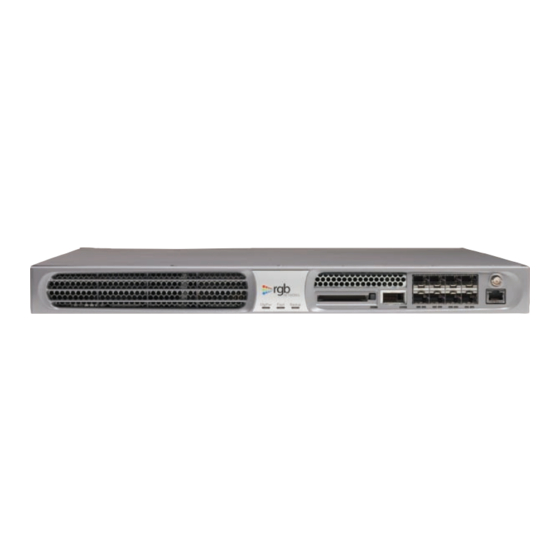

Broadcast Network Processor
(BNP) Quick Reference
The BNP can be used with between one and four modules,
depending on your requirements.
rear of chassis
Slot C
Port#
1 2 3 4 5
ASI
ASI
Slot D
3
Install recommended SFPs according to the manufacturer's
instructions.
Recommended SFPs
Tyco 1382392-3:
Multi mode 850 nm, 1 GigE, LC Optical transceiver
1511094-3:
Single mode 1310 nm, 1 GigE, LC Optical transceiver
Finisar FCMJ-8521-3:
Active copper SFP
FTRJ1319P1BTL:
Single mode 1310 nm, 1GigE, LC optical transceiver
FTRJ8519P1BTL:
Multi mode 850 nm, 1GigE, LC optical transceiver
4
Connect the Ports
Use the correct cable for the port type and your network
configuration:
• 10/100BaseT Gigabit Ethernet port, used to communicate with
an external console.
• ASI ports, located on the rear of the chassis. Use a push/twisting
motion to ensure proper seating of the cables, shown in closeup.
• The Gigabit Ethernet ports must have approved SFPs before
cabling.
ASI Ports
GigE Ports
Front of BNP
Copyright 2005-2006 RGB Networks. All rights reserved.
Slot A
6
ASI
Slot B
Rear of BNP (AC power shown)
