Summary of Contents for HKBN Momax UItra-Air Plus Iot AP7S

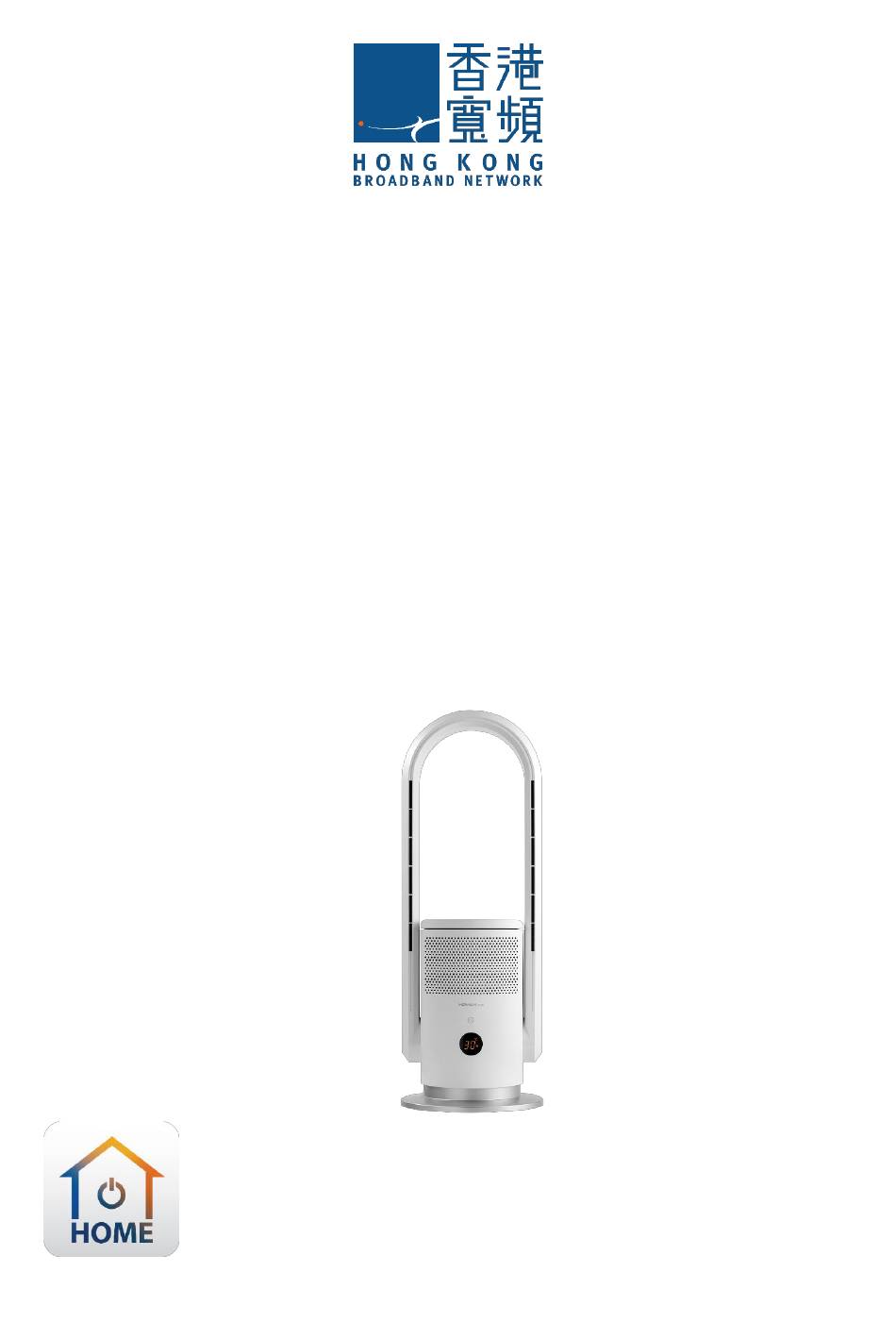

- Page 1 Momax UItra-Air Plus IoT UV Hot & Cool Purifying Fan (Model: AP7S) HKBN Home User Guide v.20201221...
-
Page 2: Table Of Contents
Table of Contents Download HKBN Home App ................4 Add Device ......................5 Control Device ....................9 Main Control Panel ................9 Switch On/Off ..................10 Adjust Wind Speed ................11 Oscillation .................... 12 UV-C Light .................... 13 Auto-off timer function ............... 14 Mode Selections .................. - Page 3 Product Description This user guide is to introduce the usage of HKBN Home App for this product with smart action examples only. For the following details, please refer to the instruction in the package: • Product Overview; • Introductions of LED screen and Modes;...
-
Page 4: Download Hkbn Home App
Download HKBN Home App Search and download “HKBN Home” APP in Apple App Store OR Google Play Store Scan the QR code below... -
Page 5: Add Device
Add Device You must first connect your phone to a 2.4GHz Wi-Fi network when adding device. Tap “Devices” on the bottom menu. (image 1) Tap “Add Device” button OR “+” icon at top right corner if you already have paired device. (image 2) (image 1) (image 2) - Page 6 Add Device Tap “Ultra-Air IoT UV Hot & Cool Purifying Fan” from left menu “MOMAX”. (image 3) Connect power, hold the ON/OFF button until the Wi-Fi indicator blinks. (image 4) (image 3) (image 4)
- Page 7 Add Device Select 2.4GHz Wi-Fi network and enter password* and then tap “Next”. (image 5) Please wait a moment while your device is in pairing process. (image *Important tips: Wi-Fi requirement ⚫ Currently all smart devices are compatible to 2.4GHz network only. Please make sure that your device and mobile are connected with 2.4GHz but not 5GHz Wi-Fi network.
- Page 8 Add Device After device added successfully, you can change the device name and assign it to the located room. (You can also change the device name and room location later in device setting page and room management page.) And you can find the Momax Ultra Air IoT Hot & Cool Purifying Fan in the “Device”...
-
Page 9: Control Device
Control Device • Main Control Panel Device Information Mode Selection Sound Effect Current Temperature Oscillate UVC Lamp Countdown ON/OFF... -
Page 10: Switch On/Off
Control Device • Switch On/Off You can press the “Switch” key to turn on/off your device remotely. It will show a “OFF” notice on screen after you switched off the device. (image 1) (image 1) (image 2) -
Page 11: Adjust Wind Speed
Control Device • Adjust Wind Speed You can adjust the wind speed by sliding the control bar. (from level 1 to 9 for Cold, level 1 to 4 for Warm) (image 1) (image 2) -
Page 12: Oscillation
Control Device • Oscillation You can enable oscillation by pressing “Horizontal”. -
Page 13: Uv-C Light
Control Device • UV-C Light You can enable/disable UV-C light function by pressing “UVC Lamp”. -
Page 14: Auto-Off Timer Function
Control Device • Auto-off timer function You can set auto-off timer to turn off the device automatically (from 1 – 8 hours): Tap ”Countdown” (image 1); Select hours (image 2); Tap “Confirm” (image 3). (image 1) (image 3) (image 2) -
Page 15: Mode Selections
Control Device • Mode Selections Four shortcut modes are available: “Boost” mode: Fan speed = 9 “Sleep” mode: Fan speed = 1 “Fresh” mode: Fan speed 3/4/5, and each run for 10 secs. “Heat” mode: Turn on heater mode... -
Page 16: Heater Mode
Control Device • Heater Mode Press “Heat” to turn on heater mode (ranging from 1-30 ℃ - when the environment temperature reaches the heater setting temperature, the heater will stop running to avoid excessive drying of the environment and long-term activation of the heater. - When the environment temperature is lower than the adjusted heater temperature, the heater will resume to ensure a warm environment. -
Page 17: Scene (Smart Action)
Control Device Scene (Smart Action) The integration of different smart devices is the beauty of smart home living which provides convenience and many possibilities of creating your preferred control settings. By setting SCENE, you can execute different smart devices at the same time by only one single tap. - Page 18 How to add Siri Command into Scene: 1. In the page of “Scene”, tap “Add to 2. In Siri Shortcuts, select the scene you 3. Input the voice command you want Siri” would like to add Voice command and then tap “Add to Siri” to complete...
-
Page 19: Automation (Smart Action)
You can handover this complex and important daily works to HKBN Home for a convenient and simple living. Automation included the setting of Temperature, Humidity, Weather and Schedule as condition to trigger different control in smart devices. - Page 20 4. Tap “Add Action” 6. Select “Warm Switch” and select “On” 5. Select the related device...
- Page 21 7. Tap “All Day” and then set the Save to complete. In the page of 8. Select “All Day” to enable 24 hours or automation, you can enable or disable customize the effective period. (If the time effective automation time automation is out of the effective period, the automation will not be triggered even if...
-
Page 22: Device Information
Device Information Device Name (tap to change) Device ID Wi-Fi Signal IP Address Mac Address Offline Notification Firmware Information Remove Device... -
Page 23: Check For Firmware Upgrade
Device Information • Check for Firmware Upgrade Tap “Check for Firmware Upgrade”, you can see current firmware version and available upgrade version if any. Tap “Upgrade” to start firmware upgrade. -
Page 24: Remove Device
Device Information • Remove Device 1. In device settings page, tap “Remove Device”. 2. Tap “OK” to confirm and remove device from your account. -
Page 25: Product Specifications
Product Specifications • Model No.: AP7S • Operating Voltage /Frequency: 200-240V ~ 50-60Hz • Rated Voltage / Frequency: 220V±10% ~ 50-60Hz • Rated Voltage: 2000W • Heater Voltage: 2000W • Cool Fan Voltage: 35W • Filter Type: H13 HEPA • UV-C Lifecycle: 10000 hours •... -
Page 26: Product Maintenance And Warranty
Product Maintenance and Warranty For the enquiry of product maintenance and warranty, please contact the product distributor/ manufacturer below: MOMAX Customer Service Centre • Service Center: Unit A, 4/F, Cheung Lung Industrial Building, 10 Cheung Yee Street, Lai Chi Kok, Kowloon, Hong Kong •...
