Black Vector

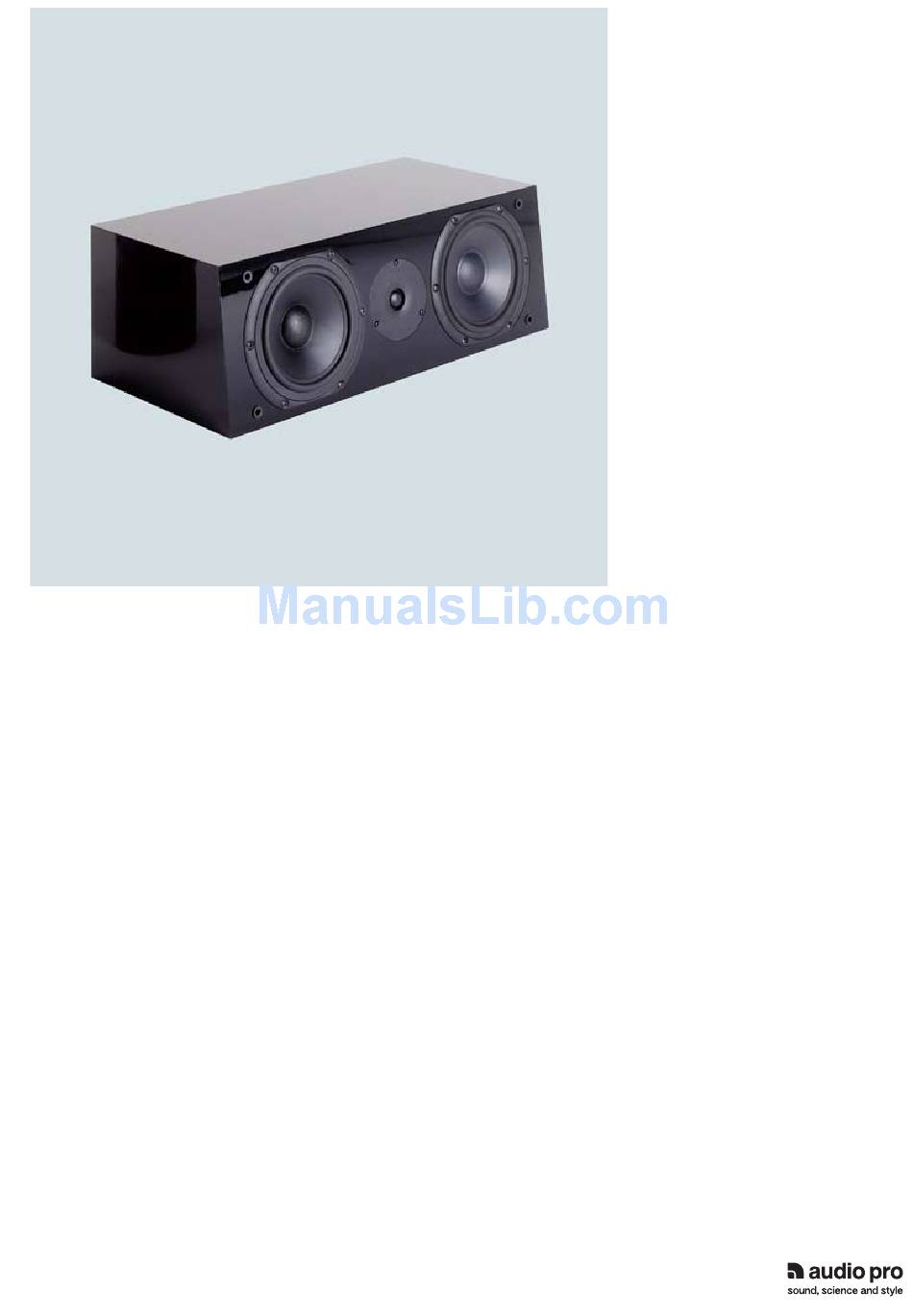

A newly developed centerspeaker, equipped with the very
successful drive units from Black Diamond, two 6 1/2"
woofers (one of them is a passive radiator) plus a brilliant
3/4" Soft dome tweeter. The drivers are, of course, mag-
netically shielded to minimize interference with your TV-set.
With Black Vector, it's possible to create a perfectly
voice-matched 5.1 surround system together with
Black Diamond, Blue Diamond or Black Pearl.
The baffle is slightly angled, to compensate an eventual
low or high placement on or under your TV set.
BLACK VECTOR
Type: Bass reflex
Tweeter: 3/4" dome, shielded
Woofer 1: 6 1/2", shielded
Woofer 2: 6 1/2", passive radiator
Frequency range: 30-22.000 Hz
Sensitivity (1W/1M): 90 dB
Impedance: 4 ohm
Crossover frequency: 3.800 Hz
Amplifier requirement: 10-100W
Dimensions (WxHxD mm): 524x180x260 mm
Color finish: Black high-gloss
