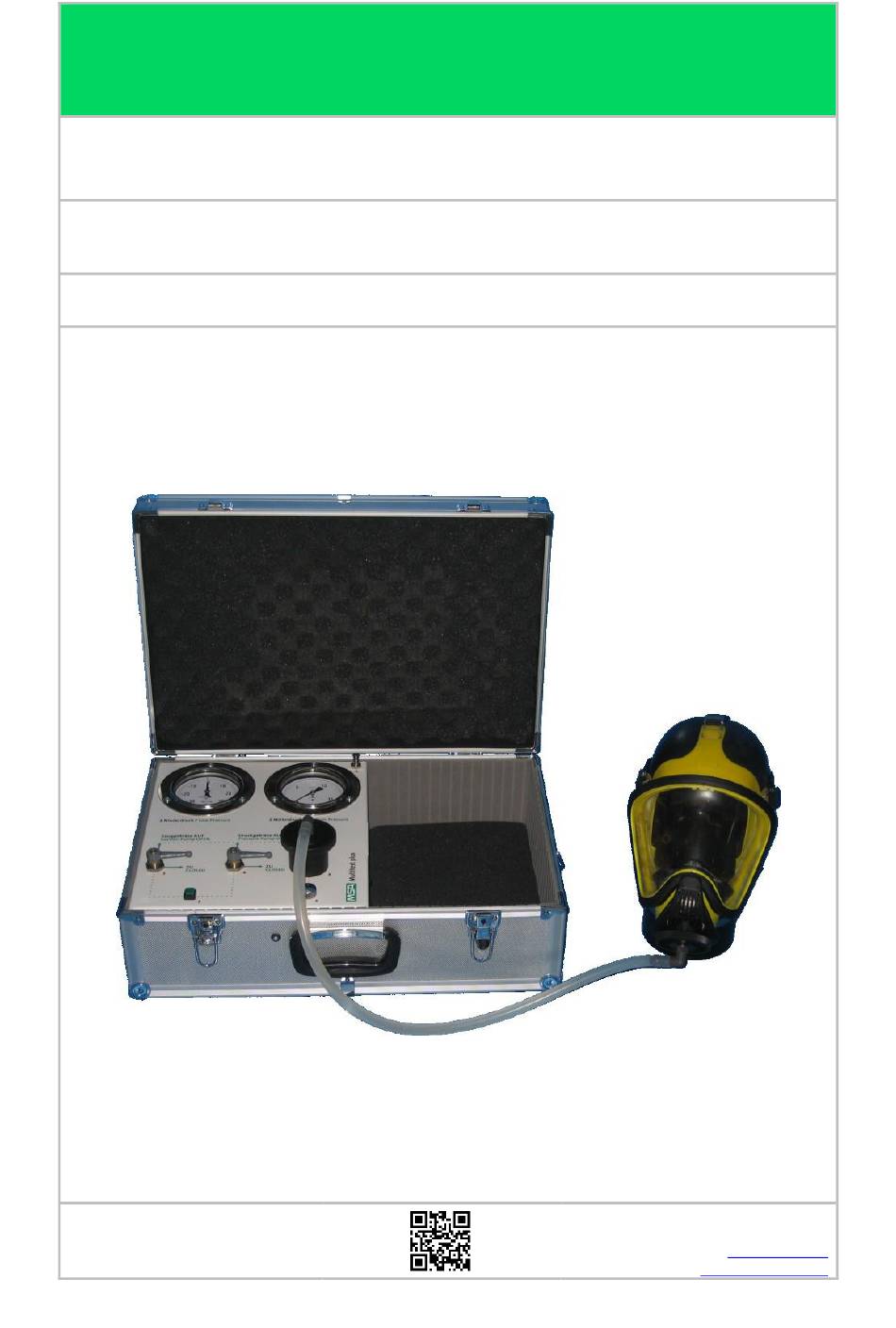

- Page 1 M E N Z L A t e m s c h u t z t e c h n i k Our expertise, your safety – since 1975 Operator’s manual Multitest plus Atemschutztechnik MENZL GmbH Tel.: +43 (0) 2278 / 2102-0 Absbergerstraße 9...
-
Page 3: Table Of Contents
Multitest plus Operator's manual Contents Operating and safety instructions ......................5 General remarks ..........................5 Remarks on performing tests ......................5 Operating environment ........................5 Malfunction and excessive strain......................5 Testing and maintenance ........................5 Care and cleaning ..........................5 Accessories ............................ -
Page 5: Operating And Safety Instructions
Multitest plus Operator's manual Operating and safety instructions General remarks The health and lives of people may depend on this tester. All persons who make decisions regarding its use, who operate, service and maintain it or who check whether it is fully functional must thoroughly and carefully read, understand and follow the instructions in this operator's manual. -
Page 6: Specifications
Multitest plus Operator's manual Specifications Dimensions: 550 x 200 x 370 mm (w x h x d) Medium-pressure compressed-air euro coupling connectors: Power supply: 1.5V battery Power adapter: 1.5V DC 1A Weight: 10.00 kg Gauge Pressure range Accuracy class Low pressure +/-20 mbar 1.6%... -
Page 7: Controls
Multitest plus Operator's manual Controls low-pressure gauge pump push-button medium-pressure gauge equipment connector suction-pump lever battery compartment (on the side of the tester) pressure-pump lever jack for power adapter (1.5V) relief valve medium-pressure connector for testing hose dummy head mask testing hose... -
Page 8: Introduction
Constantly increasing demands with regard to the performance and operational safety of respiratory protective equipment call for a sustained effort to continually optimize equipment testers. Combining pinpoint accuracy with utmost operator friendliness and a stylish design, the Menzl “Multitest plus” tester meets all the requirements of state-of-the-art equipment testing. The tester The “Multitest plus”... -
Page 9: Performing Tests
Multitest plus Operator's manual Performing tests For the time intervals against which leak-tightness tests and functional tests are to be carried out, refer to the manual provided by the equipment manufacturer. Always perform tests against the specifications found in the relevant equipment manual. -
Page 10: Lung-Governed Demand Valve-Leak-Tightness With Medium Pressure
Multitest plus Operator's manual Lung-governed demand valve—leak-tightness with medium pressure IMPORTANT: Be sure to strictly adhere to the sequence of steps! Detach the lung-governed demand valve from the equipment connector. Connect the SCBA to the medium-pressure testing hose. Connect the lung-governed demand valve to the medium-pressure testing hose. -
Page 11: Medium-Pressure Test
Multitest plus Operator's manual Medium-pressure test Do NOT attach the lung-governed demand valve to the equipment connector for this test. Connect the SCBA to the medium-pressure testing hose. Connect the lung-governed demand valve to the medium-pressure testing hose. Connect the medium-pressure testing hose to the tester. -
Page 12: Positive-Pressure Equipment
Multitest plus Operator's manual Positive-pressure equipment Lung-governed demand valve without positive medium pressure Attach the lung-governed demand valve to the equipment connector. Seal the connecting nipple of the lung-governed demand valve. Move the “pressure pump” lever to the “OPEN” position. -
Page 13: Lung-Governed Demand Valve-Closing Pressure
Multitest plus Operator's manual Lung-governed demand valve—closing pressure Detach the lung-governed demand valve from the equipment connector. Activate the positive-pressure function of the lung-governed demand valve. Connect the SCBA to the medium-pressure testing hose. Connect the lung-governed demand valve to the medium-pressure testing hose. -
Page 14: Mask-Leak Tightness
Multitest plus Operator's manual Mask—leak tightness Strap the mask onto the dummy head. Connect the testing hose to the tester and the mask. Move the “suction pump” lever to the “OPEN” position. Press and hold the pump push-button. Let the pressure build up until it is slightly higher than the level required for testing and move the “suction pump”... -
Page 15: Letting The Suit Pressure Stabilize
Multitest plus Operator's manual Letting the suit pressure stabilize Use the filling valve to adjust the pressure to the level that is required for testing according to the suit manufacturer. CAUTION: Never increase the pressure in the suit beyond the required stabilization pressure. -
Page 16: The Dummy Head
Multitest plus Operator's manual The dummy head General remarks For optimal results during mask testing, inflate the dummy head to the size of a normal human head (see images) via the filling hose mounted to the dummy head's base. The filling hose is equipped with a push-button valve that can be connected to a medium-pressure supply (e.g. -
Page 17: Inserting/Replacing The Battery
Multitest plus Operator's manual Inserting/replacing the battery The built-in battery compartment is located on the side of the tester. One battery (type D cell) is needed for powering the tester's internal pump. To insert or replace the battery, proceed as follows: Remove the battery-compartment cover Turn the battery-compartment cover to the left and remove it. -
Page 18: Accessories
Multitest plus Operator's manual Accessories Adapters for MSA Auer plug-in connector 330-048 respiratory protective masks MSA Auer plug-in connector AutoMaXX 330-152 Threaded connector M 45x3 330-050 Dräger plug-in connector 330-049 Interspiro plug-in connector 330-051 Interspiro Clic 330-168 Plug-in connector ESA... - Page 19 Multitest plus Operator's manual Cylinder pressure gauge For checking the pressure levels of 200-bar and 300- bar breathing-air cylinders. Easy to operate. Pull-back depressurization mechanism. 330-023 Ultrasonic cleaner For the optimal cleaning and disinfecting of masks and lung-governed demand valves in a minimum of time.
- Page 20 Multitest plus Operator's manual For keeping lung-governed demand valves (LGDV) for 3 LGDVs Medium-pressure-distribution rail pressurized during cleaning. 330-535 for 6 LGDVs 330-536 for 9 LGDVs 330-462 Sealer For sealing respiratory protective masks, lung-governed demand valves and SCBAs. on request www.menzl.at...
