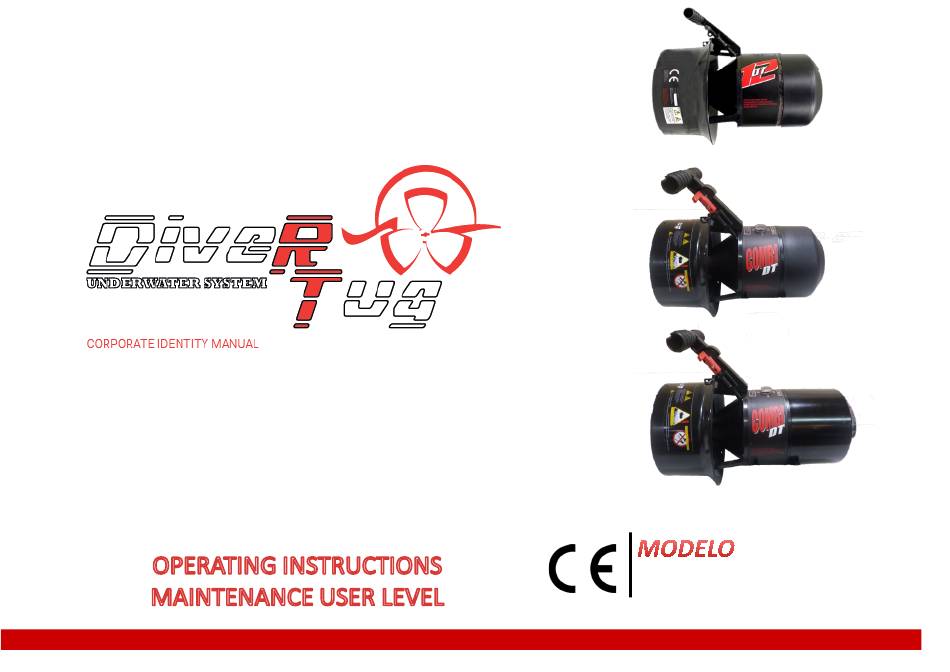

Page 1 DT 12 / Combi PAG.1...
Page 2 WELCOME TO DIVERTUG Thank you for purchasing our technical diving scooter, DT 12/Combi In this manual you will ﬁnd informa on about the correct use and maintenance of your scooter and the two year warranty of the DT 12/ Combi .
Page 3: Table Of Contents
The document will not be able to be copied totally or partially to any other use different from the original one . DIVERTUG S.L. ad their logo are property DIVERTUG S.L. the rest of brands or logos mentioned in the present document are property of the respective owners.
Page 4: General Rules Of Safety And Prevention
USER MANUAL DT 12/Combi 1. GENERAL RULES OF SAFETY AND PREVENTION Pay special a en on to the risk signals of this manual. They are 3 levels of symbols for danger: This sign warns that, if the described opera ons are not realized correctly, the user can be subjected to risks that might provoke health problems, serious injuries or even death.
Page 5: Introduction
If a er consul ng this manual you have any ques ons, please contact the manufacturer at the following email address divertug@divertug.com Because our policy is under constant improvement Divertug S.L. reserves the right to introduce changes without prior no ﬁca on in products or technical speciﬁca ons. IMPORTANT NOTE! Diving with the help of the scooter requires previous forma on, its use must is limited to users cer ﬁed in...
Page 6 USER MANUAL DT 12/Combi 3. SAFETY (I) This equipment can only be used by divers who have the corresponding cer ﬁca on accredited by competent interna onal bodies. The manufacturer will not be responsible for the use and/or abuse of the equipment by staﬀ...
Page 7 USER MANUAL DT 12/Combi 3. SAFETY(II) Carefully read chapter 4. BATTERY. Be very careful when closing your unit. Inspect with a en on the support and seal of the O-ring, elimina ng any dirt and verifying that it is in a perfect state. Add a substan al quan ty of Vaseline to the O- ring, li le anomalies can result in the loss of water ghtness with severe consequences.
Page 8: Use & Conservation Of The Battery
USER MANUAL DT 12/Combi 4. USE & CONSERVATION OF THE BATTERY (I) This chapter provides informa on about the scooter ba ery, how to recharge it and instruc ons for the user on the precau ons that must be taken when manipula ng the ba ery.
Page 9 USER MANUAL DT 12/Combi 4. USE & CONSERVATION OF THE BATTERY (II) Do no use the charger to charge other ba eries than the scooter’s. Do not use the ba ery for a diﬀerent purpose than opera ng the equipment.
Page 10 USER MANUAL DT 12/Combi 4. USE & CONSERVATION OF THE BATTERY (III) Never use damaged ba eries or chargers. If the they present signs of abuse or damage do not connect to the device. The chargers and ba eries must be maintained in a dry loca on (humidity ranging between 65%-5%) and temperatures between 5 °...
Page 11 USER MANUAL DT 12/Combi 4. USE & CONSERVATION OF THE BATTERY (IV) If the poles are inverted, the equipment can turn in reverse, resul ng in damage and an overhea ng of the equipment. The number of cycles of charge indicated by the manufacturer following all the recommenda ons described previously (ideal condi ons of use) will be of 250 cycles at 100% and another 250 cycles at more than 80%.
Page 12 USER MANUAL DT 12/Combi 5. DT/COMPONENTS (I) Mango Unit Ref.400 Selector On - Oﬀ Ba ery UnitRef.200 Components Ref. Divertug Lid Unit Ref.100 Lid Unit Ba ery Unit Propeller Unit Mango Unit Propeller Unit Ref.300 The men oned units are considered as supplies by the manufacturer, they can only be provided by the manufacturer or distributor.
Page 13 USER MANUAL DT 12/Combi 5.1 LID UNIT REF.100 Close-up of the threaded subjec on handle Close-up of the O-ring (for vaseline applica on) The aerodynamic framework protects the ba ery, it is detachable to allow access to insert, remove and charge of the ba ery.
Page 14 USER MANUAL DT 12/Combi CLOSING -CASING OF THE BATTERY With the equipment supported on the propeller ver cally and with a good vision of the top part of the equipment, insert the protec on hood of the ba ery, avoiding a possible touch between the edge of the hood and the subordina on of the ba ery.
Page 15 A.- Plug the cable of the charger to the ba ery (Unique posi on of assembly. Always without forcing and with Vaseline distributed by the manufacturer Divertug S.L. B.- Plug the charger to the electric network. The LED will indicate the state of the charge of the ba ery.
Page 16 USER MANUAL DT 12/Combi BATTERY CONECTION – SCOOTER Read and understand well this sec on as it can be one of the most cri cal for your safety and the good func oning of the scooter. -First of all, ensure that the connec on cable of the ba ery is not squeezed by the superior ballast.
Page 17 USER MANUAL DT 12/Combi CONNECTION OF THE BATTERY WITH EXTERNAL CHARGER Without having to access the ba ery, we will remove the plug that we see in image 1 manually, without the need for tools. Place in a clean area to avoid remaining dirt on the seal.
Page 18 USER MANUAL DT 12/Combi !!ATTENTION!! Never turn on the equipment while the battery is charging, this can seriously damage Battery. You never forget to put the cap on after charge the battery with the external charger (in case of DT Combi)
Page 19 USER MANUAL DT 12/Combi CHARGER BATTERY AND INDICATORS The charger disposes of two diodes: One indicates that it is func oning and the other that it is supplying electrical current or not to the circuit of charge. -The red pilot indicates ba ery in load.
Page 20 USER MANUAL DT 12/Combi 5.3 PROPELLER UNIT REF.300 Closing lid, engine compartment (never dismantle) apply Vaseline if you observe deteriora on The propeller unit is a set that is supplied as is, only the distributor or the manufacturer are authorised to verify any incident inside the unit.
Page 21 USER MANUAL DT 12/Combi 5.3.1 Dismantling-Helix Assembly 1.Detalil wedge dragging 4.Acommoda on 5.Close-up adjustable nut detail in clutch piece Following the steps in the diagram, the assembly / dismantling, the helix has a clutch system made to ensure proper grip and avoid entrapment.
Page 22 USER MANUAL DT 12/Combi Interrupter switch On-Oﬀ 5.4 MANDO ASSEMBLY REF.400 Clutch engaged Clutch at rest The control of the scooter using the clutch is one of the principal elements of opera on, it allows to engage and disengage the scooter as well as regulate the speed.
Page 23 USER MANUAL DT 12/Combi 5.4.1 ON - OFF SWITCH OPERATION The switch is operated by a turning mo on and acts as a luminous indicator. Clutch at rest, extended wharf Clutch ac vated, compressed wharf The switch interrupter turns 360°, being divided in 2 on and 2 oﬀ posi ons.
Page 24 USER MANUAL DT 12/Combi 5.4.2 AUTOMATIC MODE FOR SPEED REGULATIONS 1º. ENGAGING THE AUTOMATIC SPEED CONTROLER By following the instruc ons in sec on 5.1 CONTROL ASSEMBLY , we have the possibility to pilot the scooter without keeping the speed clutch engaged.
Page 25 USER MANUAL DT 12/Combi 5.4.3 OPERATION WITH OR WITHOUT THE AUTOMATIC MODE The trigger has two posi ons: Position 2 posi on 1 to use the mode automa c and posi on 2 for Position 1 disable automa c mode.
Page 26 USER MANUAL DT 12/Combi 5.4.4 TUTORIAL FOLDABLE HANDLE/AUTO PILOT The handle has the possibility of being foldable for transport mode and in func onal posi on for the use of the scooter in the water. In the images we can check the two posi ons, which must be ﬁxed with the ﬁxing screw ght in both cases.
Page 27 System of accelera on 2 speeds Helix with safety clutch Integral body of plas c Ergonomic transport system * Due to our policy of constants improvements Divertug S.L. saves the right to introduce changes without previous no ce, in products or technical speciﬁca ons. PAG.27...
Page 28: Technical Characteristics
System of accelera on 2 speeds Helix with safety clutch Integral body of plas c Ergonomic transport system * Due to our policy of constants improvements Divertug S.L. saves the right to introduce changes without previous no ce, in products or technical speciﬁca ons. PAG.28...
Page 29 Helix with safety clutch 490mm Integral body of plas c Ergonomic transport system * Due to our policy of constants improvements Divertug S.L. saves the right to introduce changes without previous no ce, in products or technical speciﬁca ons. PAG.29...
Page 30: Before Using
USER MANUAL DT 12/Combi 7. BEFORE USING DT 12/Combi Once acquired and before using it, follow the steps that are indicated: 1°) Mount the complete body to check for water ghtness. 2º) Immerse during 10/15 minutes the scooter in an appropriate container of sweet water without connec ng the ba ery.
Page 31 USER MANUAL DT 12/Combi 8. MANAGEMENT OF THE EQUIPMENT (I) WARNING: Before ini a ng your ac vity, consult the legisla on of your area of diving with respect to this type of equipment. Especially in hun ng parks and natural reserves. Remember to always dive respec ng the environment.
Page 32 USER MANUAL DT 12/24/36 8. MANAGEMENT OF THE EQUIPMENT (II) When you start mo on, your body must be located as parallel as possible to the direc on of movement, with the scooter placed under you and in parallel, in order that the ou low of the helix also stays below your bodyy.
Page 33 USER MANUAL DT 12/24/36 8. MANAGEMENT OF THE EQUIPMENT (III) -In naviga on, if you pull the handlebars towards yourself, it will raise the nose of the scooter and will begin an ascent. If you push it down, away from you, it will start going down; the speed of this maneuver will be directly propor onal the force you apply.
Page 34: Cleaning And Conservation Of The Equipment
USER MANUAL DT 12/Combi 9. CLEANING AND CONSERVATION OF THE EQUIPMENT (I) a) CLEANING -A er the dive, rinse the scooter as soon as possible, dipping it in a tank of sweet water and having it a few minutes func oning in a low speed un l it gets totally free of salt content and adhered par cles. Another op on is to rinse it with sweet water, emphasizing the mobile zones and more delicacy (command, helix, clutch, etc.).
Page 35 USER MANUAL DT 12/Combi INTRODUCTION- IMPORTANT WARNING The correct seal of the unit supposes the best guarantee to avoid ﬂooding. 1º. TESTING AND CLEANING O-RING AND SEATINGS Extract the O-ring of its seat and clean up any residues (grains of sand, hairs, etc). The O-ring seat (interior hood closing ba ery and hood inser on zone.
Page 36 USER MANUAL DT 12/Combi 9. CLEANING AND CONSERVATION OF THE EQUIPMENT (II) b) STORAGE AND CONSERVATION -If you want to store for more than three months, you must do it in a dry and well aired space between 15°C and 25°C. Also, you must realize at least one charge and discharge every six months, and store again well charged.
Page 37 USER MANUAL DT 12/Combi 9. CLEANING AND CONSERVATION OF THE EQUIPMENT (III) Never manipulate the interior of the ba ery nor modify the conﬁgura on under in any way. The body of the scooter can be lied down on its side. It is indispensable to close the unit to protect from water damage, take care to not over ght the lid as it can result in damages to the seal when stored from a long period of me.
Page 38: Maintenance
USER MANUAL DT 12/Combi 10. MAINTENANCE a) ROUTINE MAINTENANCE -Open the protec on lid where the ba ery is lodged and clean the framework with a so cloth without using solvents or alcohol -Lubricate the joints with Vaseline, checking that it is in a correct posi on.
Page 39: Possible Incidents And Solutions
USER MANUAL DT 12/Combi 11. POSSIBLE INCIDENTS AND SOLUTIONS (I) FAILURES OF THE SCOOTER The scooter DT 12/24/36 is extremely reliable, but the diver must be always prepared to face possible failures. a) The scooter doesn´t turn on Assure that you have placed the interrupter in ON posi on, note the LED that indicates the ba ery level.
Page 40 USER MANUAL DT 12/Combi 11. POSIBLE INCIDENTS AND SOLUTIONS (II) SCOOTER FAILURES c) Flooding If the scooter ﬂoods, it can become a risk to the user. Close the circuit and abort the dive DT 12/Combi this will eliminate the risk and allow to exit the water with safety. In case of doubt detach yourself from the scooter and leave it behind.
Page 41: Warranty
The repair under the indicated warranty is limited to the subs tu on of the defec ve parts and others of similar value than those in the original scooter, the decision being made by Divertug S.L. This warranty starts from the date of purchase, it is only applicable to the original owner and is not transferable.
Page 42 -Equipment where the maintenance or repairs were no realized by persons authorized by the manufacturer. -Modiﬁca ons of the original state in which the equipment was given. -The use of the Divertug equipments for abnormal ac vi es, or for other purposes that are not the ones for which they have been designed.
Page 43 TERMS AND CONDITIONS OF THE WARRANTY Divertug S.L. doesn´t provide any other warran es, explicit or implicit. All the implicit warran es, including the warranty of merchantability and adequacy for a par cular purpose, are limited in dura on to the explicit warran es indicated above.
Page 44 During the period of warranty of your equipment, it can only be a ended by Divertug S.L. or oﬃcial distributors. It will be your responsibility to maintain it in good condi ons and not submit it to more eﬀorts beyond those of normal use. During the period of warranty you must do all the technical and periodical obligatory maintenances, as it is indicated in this user manual from Divertug team.
Page 45 -Parts that wear out because of the normal use like: Ba eries, O-rings, clutch pieces, etc. -Electrical circuits modifying their original services that are not original or authorised by Divertug S.L. -Ba eries that they have being used with an unauthorised charger or oﬃcial and ba eries that have had a short-circuit or not controlled charges by the user.
Page 46 USER MANUAL DT 12/Combi 12. WARRANTY(VI) TERMS AND CONDITIONS OF THE WARRANTY pre-evalua on, will contact you as soon as possible to indicate the steps to to Our technical service, a er a follow for the repara on of your equipment, recondi oned and 100% func onal in the shortest delay.
Page 47: Distributors
, distribution and recompilation. It can´t be reproduced any part of this document in any form and by any means without the previous authorization written by the person in charge of this document. The document will not be able to be copied totally or partially to any other use different from the original one . DIVERTUG S.L.
