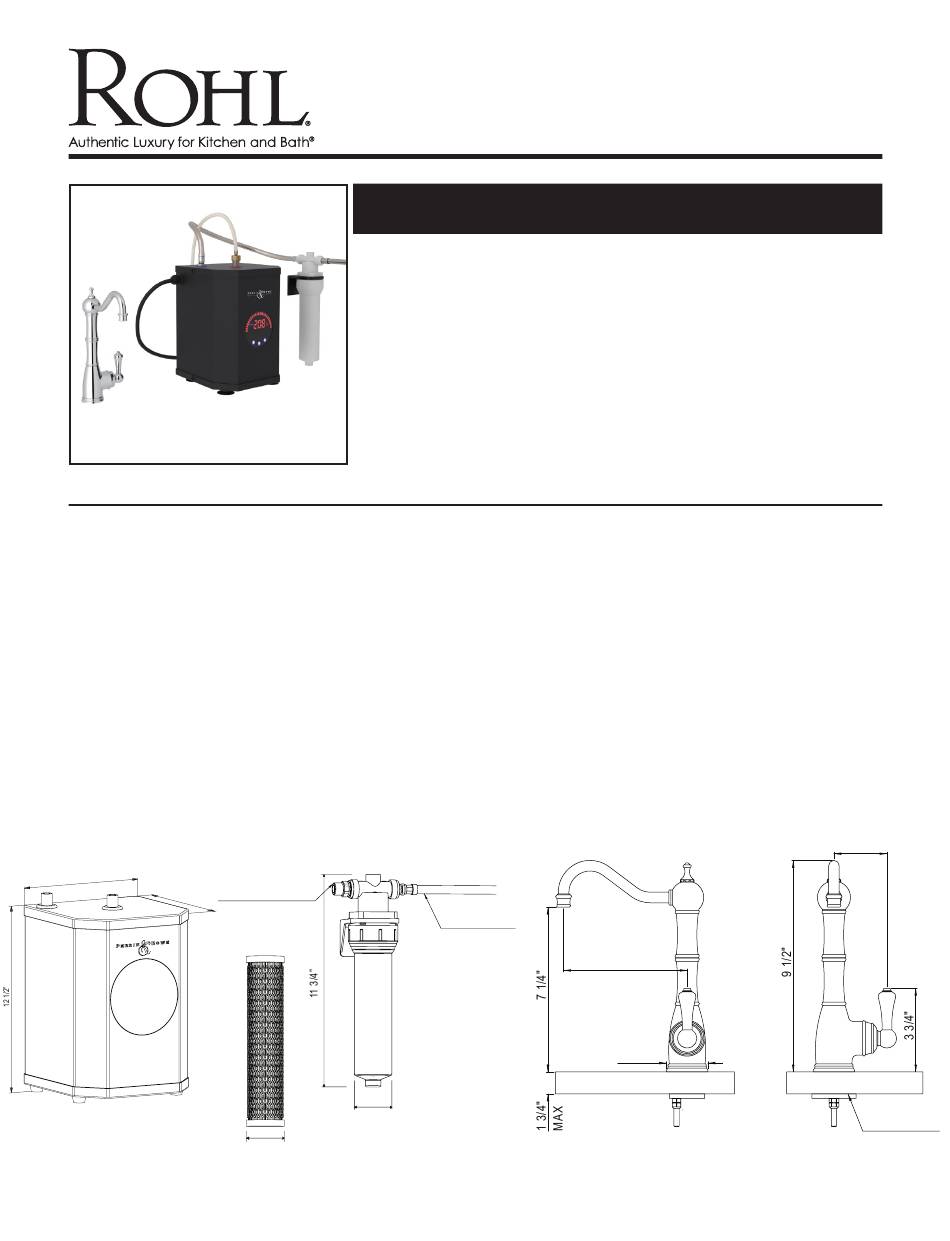

Edwardian column spout hot water faucet, tank and filter kit

Advertisement

FEATURES
Complete with the following items:
— U.1998 Hot water tank
— U.1323LS-2 Hot water faucet
— U.1106 Hot water filter
Instantly provides near boiling flltered water for
beverages and food preparation
Unique Anti-Scald lock: innovative push mechanism
with exclusive spring-back valve
Long lasting brass construction
Swivel spout for ease of filling containers
Order U.PRF1 for hot water replacement filter cartridge
9"
INLET FROM FAUCET
8"
Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
PERRIN & ROWE® EDWARDIAN COLUMN SPOUT HOT WATER FAUCET, TANK AND
FILTER KIT
Perrin & Rowe® Kitchen Filtered Hot Water Dispensers
U.KIT1323LS
* PLEASE ALLOW 12 1/2"
(MINIMUM) TO
ALLOW FOR FILTER
REPLACEMENT.
Ø2"
Ø1 3/4"
COLORS/FINISHES
Polished Chrome
Polished Nickel
Satin Nickel
English Bronze
English Gold*
Unlacquered Brass**
TO HOT TANK
5 1/2"
Ø1 7/8"
www.rohlhome.com
WARRANTY
• 5-year Limited Warranty on Faucet
• 3-year Limited Warranty on Tank
*5-year Limited Warranty on English Gold
**No Warranty on Unlacquered Brass
2 3/8"
Ø1 1/4" HOLE

Advertisement
