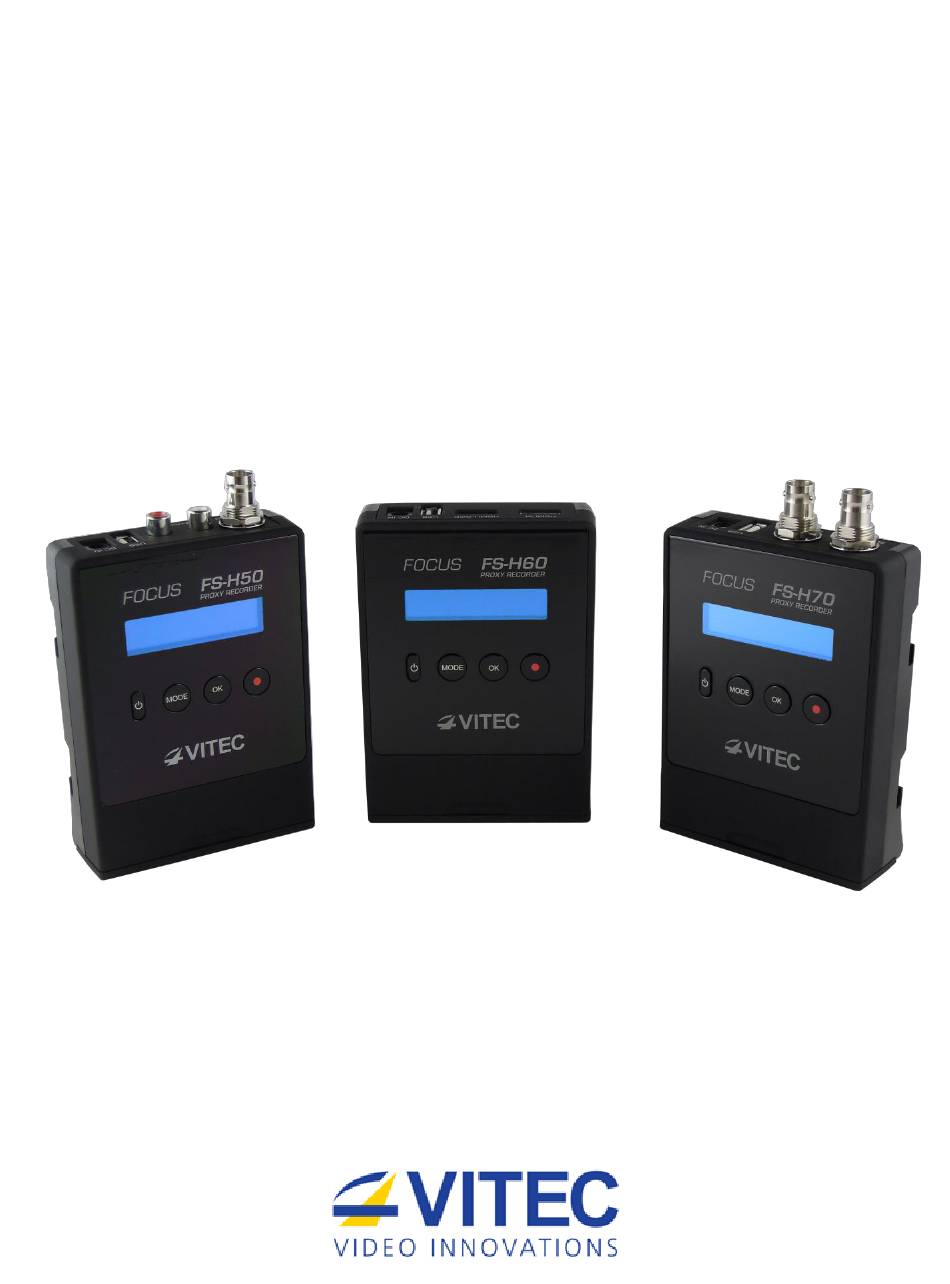

- Page 1 Frequently Asked Questions FS-H70 / FS-H60 / FS-H50 v1.2...
-
Page 2: Table Of Contents
Inputs/Outputs ___________________________________________________________________________ 4 What are the inputs of each FS-Hxx Recorder? __________________________________________________________________ 4 Does the FS-Hxx Recorders support timecode? __________________________________________________________________ 4 Can the FS-H70 capture the embedded SDI timecode? ____________________________________________________________ 4 What are the supported input resolutions and frame rates supported for FS-Hxx? _____________________________________ 4 Below are the supported resolutions for each models: ____________________________________________________________ 4 How can I verify the video input signal resolution and frame rate? __________________________________________________ 4 FS-H60 shows “NO AUDIO”... - Page 3 Can you preview the recorded clips? __________________________________________________________________________ 7 The live video preview shows 5 to 10 seconds latency, how can I reduce it? __________________________________________ 7 How can I connect to the FS-Hxx web interface? _________________________________________________________________ 8 I cannot connect to my FS-Hxx in AdHoc mode (direct connection)? _________________________________________________ 8 How do you configure the network settings? ___________________________________________________________________ 8 What are the default login and password for the web interface? ___________________________________________________ 8 Where can I find the IP address of my recorder? _________________________________________________________________ 8...
-
Page 4: Inputs/Outputs
Inputs/Outputs What are the inputs of each FS-Hxx Recorder? FS-H70 has an SDI input (BNC x1) which captures video and 2 embedded audio channel. This SDI input conforms to SPMTE259M (SD- SDI) and SMPTE292M (HD-SDI). It also complies with SMPTE RP188 for SDI timecode capture. FS-H60 provides a HDMI input (HDMI Type A x1) which captures video and 2 embedded audio channel (uncompressed). -
Page 5: Recording
Recording What type of files can be recorded? MOV, MP4 or TS (AVC HD) clips can be recorded. A separate XML file and thumbnail is attached to each clip. Where can I get some sample clips recorded with FS-Hxx? Clips recorded at different profiles can be found here: https://www.dropbox.com/sh/q3xwvlpm7mq5l9u/gqVhiAkeRf Whatis the snapshot file type? Snapshots are saved as JPEG files. -
Page 6: Can The Recorder Be Externally Triggered
Can the recorder be externally triggered? Yes, the FS-Hxx can be triggered externally via Wi-Fi. Additionally, FS-H70 can be controlled using an SDI embedded record trigger from the camera (supported cameras : Sony / Panasonic / ARRI) or by using the SDI timecode break. The start/stop record mode can be set in the TRIGGER menu (onto the unit or using the web interface): - NORMAL: Start/Stop recording can be triggered from the front panel REC button or via the web interface. -
Page 7: Can The Fs-Hxx Stream Live Video
Can the FS-Hxx stream live video? Yes. The live input video can be accessed in the live window of the web interface. Click the “Live” button to start the preview. If one wants to preview the stream using an external player, the live video link can be found in the same page. Below links can be used too (IP_Address to be replaced by the FS-Hxx IP address: For HLS : http://IP_Address/hls/preview.m3u8... -
Page 8: How Can I Connect To The Fs-Hxx Web Interface
How can I connect to the FS-Hxx web interface? By default, FS-Hxx network is configured in AdHoc mode: FS-Hxx creates a Wi-Fi network called FS-Hxx-XXXX. To connect to this network: - Switch on the Wi-Fi on your PC / Mac or mobile device and search for the available networks. - Select the network called FS-Hxx-XXXX to connect to it. -
Page 9: I Lost My Credentials And Cannot Connect To The Fs-Hxx Web Interface? How Can I Reset It
I lost my credentials and cannot connect to the FS-Hxx web interface? How can I reset it? Repeat the steps from the response above to reset your password. Note that your network configuration will also be reset Power How long does the battery last? The battery will last approximately FS-H70: 3 hours with Wi-Fi ON, 5 hours without FS-H60: 5 hours with Wi-Fi ON, 8 hours without... -
Page 10: Accessories
Accessories Can I purchase additional batteries? Are they compatible across the FS-Hxx models? Yes, battery pack can be purchased separately. One battery is provided per unit. The battery is common to all units (FS-H70, FS-H60, FS-H50). Do not use any third party battery to prevent damage to your unit. How can I mount the FS-Hxx onto a camera? FS-Hxx is shipped with a removable cradle.
