Kenko Sky Memo Instructions Manual

Kenko Sky Memo
Instructions
The Kenko Sky Memo ('R' version) is a single-
axis tracking system intended to be used in
wide-angle astrophotographic applications. In
the standard configuration, the system includes
a dual-camera tracking arm, illuminated polar
finder, and remote control paddle for guiding

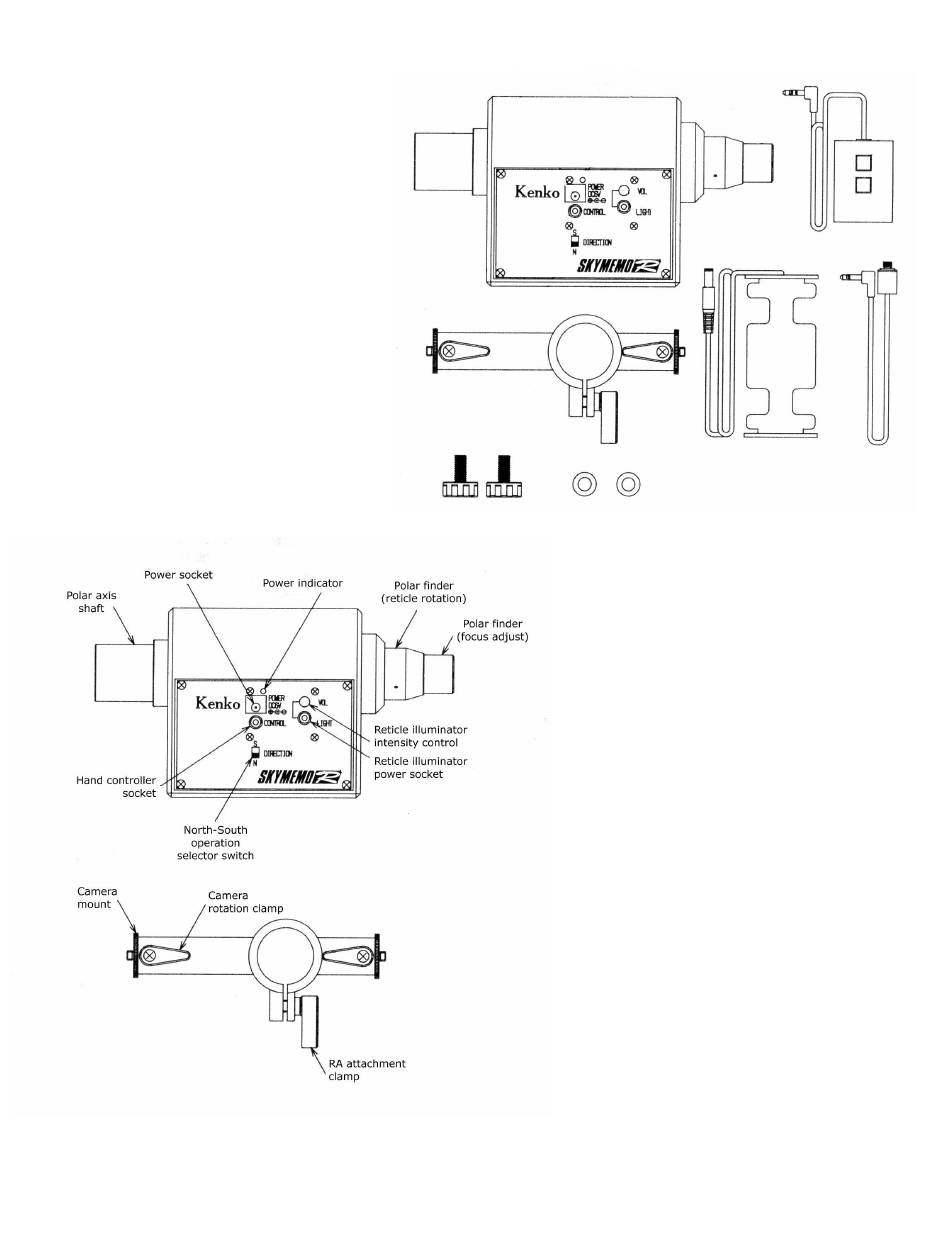

use. All components included with the basic
tracker are pictured at right. An optional
compact tripod with fine attitude and azimuth
adjustments, or a counterweight bar with
various weights are also available.
Initial Preparation
The Kenko Sky Memo requires 4 C-cells to
be installed in the supplied battery holder,
which is then plugged into the side of the
tracker. Alkaline or carbon-zinc cells are
recommended, but NiCd rechargeable cells
may be used although the power light on the
side of the tracker may not light. If you plan
to photograph in cold weather, you should
prepare an insulated enclosure for the
battery pack to keep it warm enough to
function. The operating time for most
batteries are dramatically reduced below
freezing.
Because the Kenko Sky Memo can be
operated in either the northern or southern
hemisphere, the switch labeled "Direction"
must be set properly to the "N" or "S"
position respectively.
The polar finder illuminator should also be
inserted into the rear of the polar finder and
plugged into the illuminator power socket on
the tracker control panel.
1
Kenko Sky Memo Instructions
Hutech Corporation
©
2000
