Summary of Contents for Wedderburn WS202

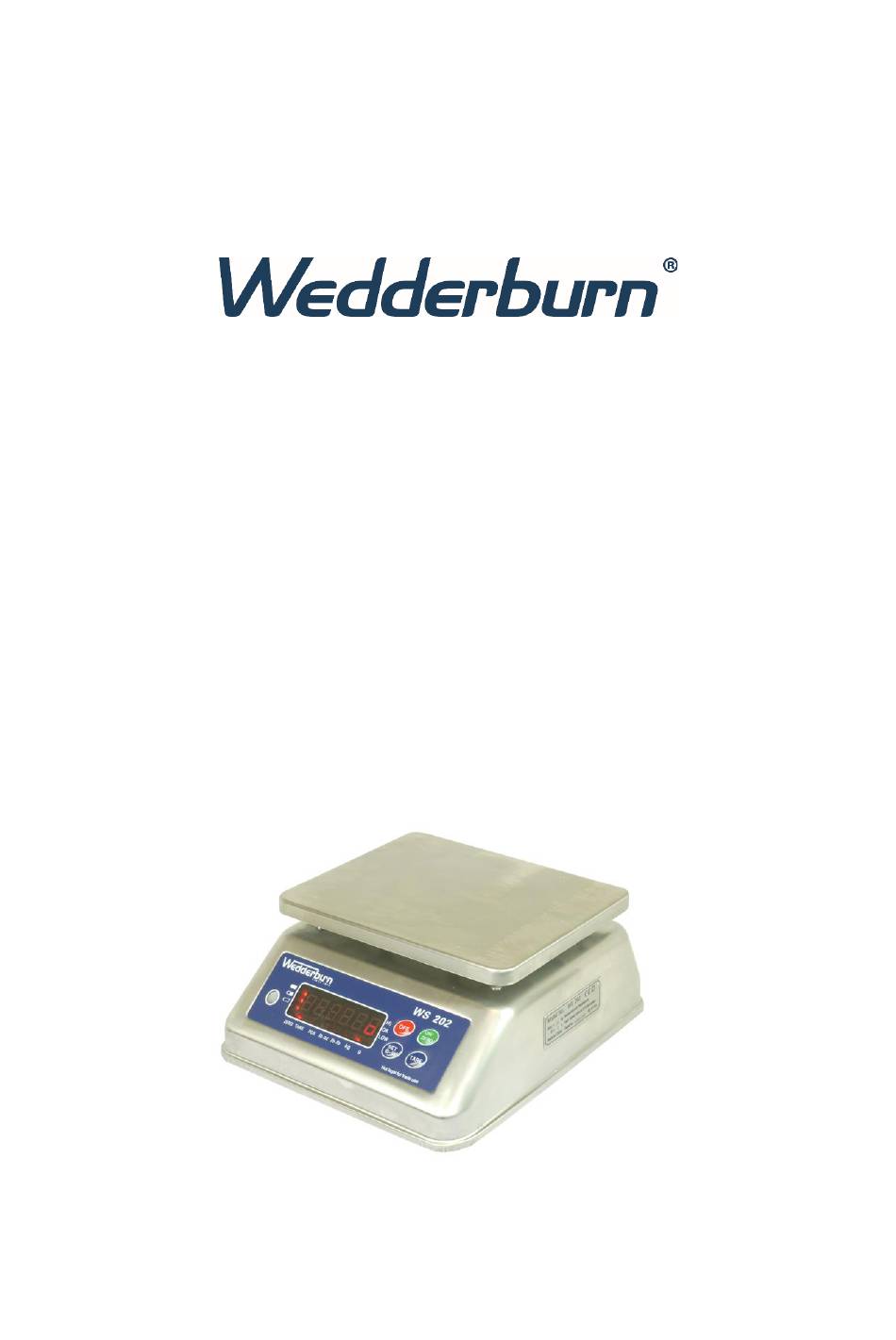

- Page 1 Operator Manual WS202 Digital Bench Scale...
-
Page 2: Table Of Contents
5.17. d-dP (choose single or dual display) ..................... 10 5.18. Display LED Power Setting Mode ......................10 Battery Maintenance ............................. 10 Trouble Shooting ..............................11 Wedderburn Contact ............................. 12 Wedderburn Operator Manual Page 2 of 12 WS202 Digital Bench Scale... -
Page 3: Safety Instructions
• Do not use abrasive scrubs or cleaning agents. • Stainless Note: The scale must not be dismantled. 1.5. Routine Inspection and Testing Regular inspection and testing of this scale should ensure trouble free and safe operation. Wedderburn Operator Manual Page 3 of 12 WS202 Digital Bench Scale... -
Page 4: Electrical Safety
• Contact your local council for recycling options. 1.8. Correct Use • Ensure that staff that will be using the WS202 scale are instructed in the correct use of the instrument and are made aware of the above safety instructions. -
Page 5: Specifications
Press to confirm TARE TARE Press to exit Long press with power on to enter Calibration Press to power off the scale Press to enter parameters (0~9) Press to select parameters Wedderburn Operator Manual Page 5 of 12 WS202 Digital Bench Scale... -
Page 6: Display Messages
Operations 5.1. Preparation Place WS202 scale in location where it is to be used. Adjust leveling feet until the leveling bubble is centrally located this will ensure the weighing pan is in a horizontal position. 5.2. Switching the Scale On and Off... -
Page 7: Tare Operation
• on-rA (choose range of power on) • d-dP (choose single or dual display) Press [SET/0~9] key is the select key, Press [TARE] key is to confirm, Press [TARE] key again to exit Wedderburn Operator Manual Page 7 of 12 WS202 Digital Bench Scale... - Page 8 • When low limit < “??????” < high limit, “OK” lamp is lit. • When “??????” ≤ low limit, “LOW” lamp is lit. • When the weight upon the weight pan is unstable, no lamps are lit. Wedderburn Operator Manual Page 8 of 12 WS202 Digital Bench Scale...
-
Page 9: Units
FILt-2 or FILt-3. Press the [TARE] key to confirm and exit. FILt-1: Display renew speed is slow. FILt-2: Display renew speed is fast. FILt-3: Display renew speed is faster. Wedderburn Operator Manual Page 9 of 12 WS202 Digital Bench Scale... -
Page 10: Zero (Set Range Of Auto-Zero)
Press the [TARE] key to confirm. Battery Maintenance The 6 volt battery used with the WS202 counting scale is sealed lead acid type and therefore does not require any maintenance other than ensuring the battery is fully charged. To ensure maximum life from your scales battery ensures that unused scales are recharged at least every 3 months. -
Page 11: Trouble Shooting
5.9.2 In Counting mode (lamp on over “PCS” wording) Scale will not enter calibration Calibration switch in See section 7 for calibration mode (ERROR 2) incorrect position instructions Wedderburn Operator Manual Page 11 of 12 WS202 Digital Bench Scale... -
Page 12: Wedderburn Contact
Wedderburn Contact For any further enquiries, please contact your local Wedderburn branch. Phone: 0800 800-379 Fax: 0800 933-337 Website: www.wedderburn.co.nz Wedderburn Operator Manual Page 12 of 12 WS202 Digital Bench Scale...
