- Page 1 SIRIUS SD LOGGER User Manual Version 1.0; Release Date: October 2019 Author: Mamoona Khalid...
- Page 2 All trademarks are recognized, even if not explicitly identified as such. Kilowatt Labs® is a registered trademark of the Company. Sirius SD Logger– User Manual This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 3: Table Of Contents
1.2 Mechanical Drawings: ........................ 4 2. Package contents: ..........................6 3. Product Description: ........................... 7 Sirius SD Logger– User Manual This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 4: Product Overview

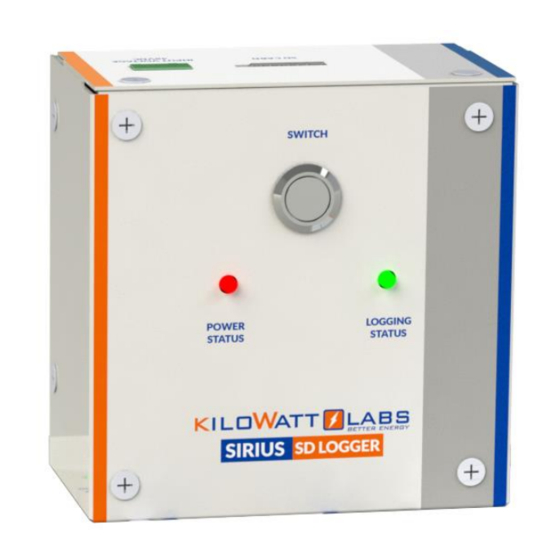

The appearance of the SD Logger is shown below: 1.2 Mechanical Drawings: Top View Sirius SD Logger– User Manual This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 5 Front View Back View Sirius SD Logger– User Manual This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 6: Package Contents
1. SD Logger 2. USB Cable 3. Power cable 4. 8 GB SD Card Sirius SD Logger– User Manual This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 7: Product Description
Set Time and Date SD Card SD Card Input Voltage 48Vdc input voltage Sirius SD Logger– User Manual This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 8 Color Status Indication Green Data logging has started. Green Data logging has stopped. Sirius SD Logger– User Manual This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 9 Double click the SIRIUS SD Logger Time Setter to execute it. • A log-in Screen will appear as shown below. Sirius SD Logger– User Manual This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 10 2. Cell Data (CD) • Sirius Module Data: The Sirius Module data has the following format. Sirius SD Logger– User Manual This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 11 2-Over Current 3-Over Current Tolerate 7. ST – State of Temperature 1-Normal 2-Over Temperature Sirius SD Logger– User Manual This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 12 14. CHBL – Balancing while charging flag. This is not applicable when connecting the modules in series. 0 – Disabled (Default) 1 – Enabled Sirius SD Logger– User Manual This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 13 2.58/2.58/2.58/… /2.58# Format: Cell_1/Cell_2/Cell_3/…/Cell_20# It means Cell 1 to Cell 20 are of 2.58V. Sirius SD Logger– User Manual This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
