V500 PC-Free Document Camera
PC-FREE｜ HD｜HIGH SPEED| BUILT-IN SOFTWARE｜PLUG&PLAY｜e-CLASSROOM｜e-OFFICE
Button Panel
1

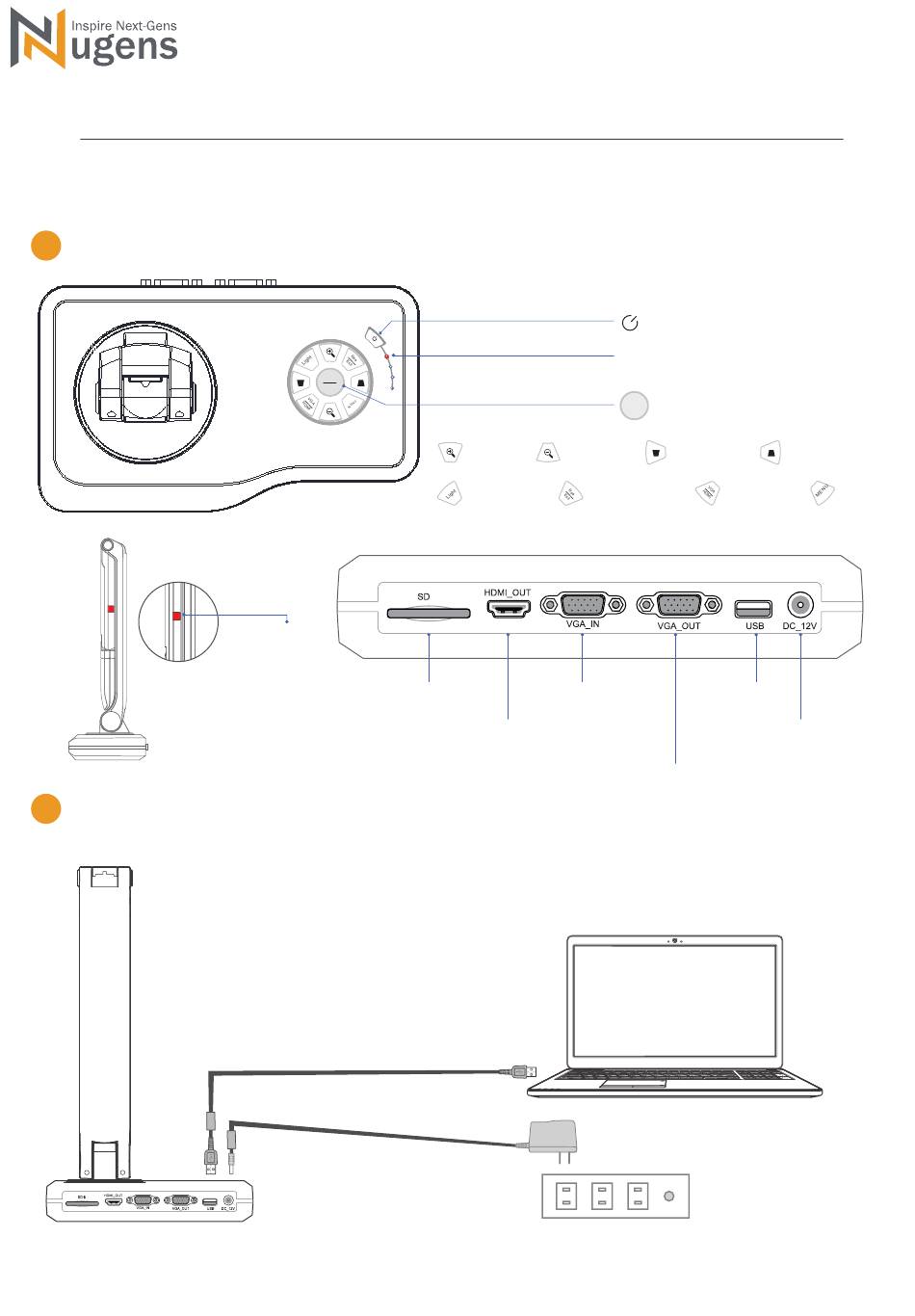

CONNECT TO PC
2
1
CONNECT V500 WITH PC VIA USB CABLE
2
PLUG IN POWER INPUT
3
LAUNCH SOFTWARE
A u t o
O K
INFRARED
SENSOR
SD CARD READER
USB CABLE
AC ADAPTER
FOR CONFERENCE MEETING
FOR DISTANCE LEARNING
ZOOM-IN
ZOOM-OUT
LIGHTS
RESOLUTION
CONTROL
VGA INPUT
(PC)
HDMI OUTPUT
(PROJECTOR / TV)
(PROJECTOR / DIGITAL WHITEBOARD)
12V/1A
SOCKET
POWER ON/OFF
INDICATOR LIGHT
FOCUS / OK
A u t o
O K
FUNCTION
FUNCTION
SELECTION
SELECTION
VGA / HDMI
USB PORT
（PC / MOUSE）
POWER INPUT
VGA OUTPUT
MENU
Advertisement
Table of Contents
Summary of Contents for Nugens V500
- Page 1 USB PORT (PC) （PC / MOUSE） HDMI OUTPUT POWER INPUT (PROJECTOR / TV) VGA OUTPUT (PROJECTOR / DIGITAL WHITEBOARD) CONNECT TO PC CONNECT V500 WITH PC VIA USB CABLE PLUG IN POWER INPUT LAUNCH SOFTWARE USB CABLE 12V/1A AC ADAPTER SOCKET...
- Page 2 B. Connect Projector / TV’s HDMI to V500 （Or Connect via VGA Cable to V500’s VGA-OUT） C. Power ON V500. D. Press to Zoom-In or Zoom-Out. HDMI Connect / VGA V500 Software Installation Please visit www.nugenstech.com to download Nugens Viusalizer Software and install it.
- Page 3 Offline Mode: Use HDMI / VGA cable to connect a TV or a Projector MAGNIFIER ZOOM-OUT MIRROR DIVISION SETTING RECORDING (SD CARD ) FOCUS ZOOM-IN ROTATE FREEZE ANNOTATE BROWSER SNAP (SD CARD ) Online Mode: Connect PC via USB Cable to use Nugens Visualizer Software...
- Page 4 Functions: Icon Description Focus: Press to focus. Magnifier: Zoom in on specific area. Resolution: Dimensions are 800x600, 1280x720, 1280x960, 1920x1080, 2048x1536, 2592x1944, 3264x2448. Zoom-in: Zoom in entire page. Zoom-out: Zoom out entire page. Rotate: Rotate entire page 90 degrees. Freeze: Freeze entire page; it can be zoom in or rotate when in freeze.
- Page 5 Icon Description Move: Move the image. Pencil: Draw a free-form line with the selected line width. Thickness: Select the preferred outline for Pencil. Color: Select the preferred color for Pencil. Transparency: Adjust the transparency of Pencil, also able to use as highlighter.
- Page 6 Nugens CamSwitcher Software Please visit www.nugenstech.com to download Nugens CamSwitcher Preview software and install it. With Nugens CamSwitcher Preview, you are able to display HD preview with user friendly design. You are able to select resolutions, brightness, and other settings.
