OPERATING MANUAL

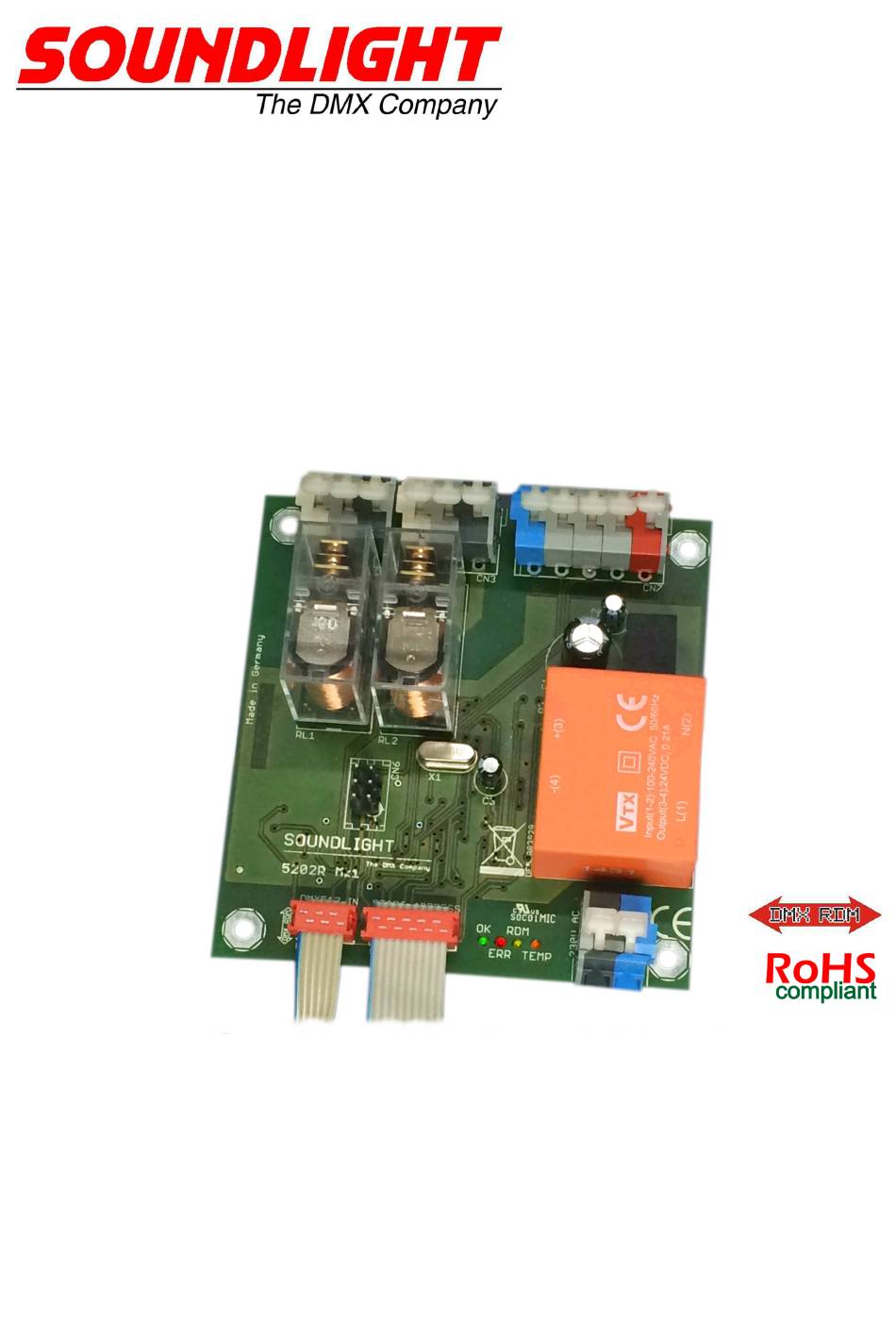

DMX Safety Relay 5202R-EP
Version Mk1.2
(C) SOUNDLIGHT 1996-2018 * ALL RIGHTS RESERVED * NO PART OF THIS MANUAL MAY BE RE-
PRODUCED, DUPLICATED OR USED COMMERCIALLY WITHOUT THE PRIOR WRITTEN CONSENT OF
THE OWNER *
ALL STATEMENTS WITHIN THIS MANUAL HAVE BEEN CHECKED CAREFULLY AND
ARE BELIEVED TO BE ACCURATE, HOWEVER SOUNDLIGHT DOES NOT ASSUME ANY RESPONSIBI-
LITY FOR ERRORS OR OMISSIONS. * THE USER HAS TO CHECK THE SUITABILITY OF THE EQUIP-
MENT FOR THE INTENDED USE. SOUNDLIGHT EXPRESSLY EXCLUDES ANY RESPONSIBILITY FOR
DAMAGES - DIRECT OR INDIRECT - WHICH MAY OCCUR DUE TO MISUSE, UNPROPER INSTALLA-
TION, WRONG OPERATING CONDITIONS AND NON-COMPLIANCE TO THE INSTRUMENT'S INSTRU-
CTIONS, AS WELL AS DISREGARD OF EXISTING SAFETY STANDARDS AND REGULATIONS.
SOUNDLIGHT
Bennigser Str.1 D-30974 Wennigsen Tel. 05045-91293-11
The DMX Company
Advertisement
Table of Contents
Summary of Contents for DMX SOUNDLIGHT 5202R-EP
- Page 1 2018-11-06 OPERATING MANUAL DMX Safety Relay 5202R-EP Version Mk1.2 (C) SOUNDLIGHT 1996-2018 * ALL RIGHTS RESERVED * NO PART OF THIS MANUAL MAY BE RE- PRODUCED, DUPLICATED OR USED COMMERCIALLY WITHOUT THE PRIOR WRITTEN CONSENT OF THE OWNER *...
- Page 2 The SOUNDLIGHT 5202R-EP is a cost-effective solution for many purposes. General The DMX Relay 5202R-EP is ideally suited for all kinds of switching control. It has been designed for use with effects in entertainment lighting. The 5202R-EP must not be used for hazardous appli- cations.
-
Page 3: Cage Clamp Connectors
(except 5202R-KIT). All settings can be performed using DMX RDM. Alternatively, a programm- ing adaptor, which can be used to set DMX start address, DMX personality and DMX HOLD mode, must be ordered separately. If you already have it, there is no need to buy again: the start add- ress board can be used for many of our DMX interfaces, pcb and DIN rail mount alike. -
Page 4: Safety Notice
Make sure, that all wiring is only carried out in unpowered state. The DMX relay 5202R-EP is intended for use in dry environments. It must be installed in a suitable electrical cabinet or housing. The operating conditions (see chapter „Technical Da- ta“... -
Page 5: Signal Indicators
#001 and thus occupies DMX data slots 1...3. To change the slot allocation, the interface must be pro- grammed. This can be done using a standard DMX RDM con- troller (we suggest to use the JESE GET/SET controller) or a... -
Page 6: Root Mode
Notice: Start address boards are not contained with delivery of DIN rail decoders, since they are only used once for programming and can be used repeatedly. They must always be ordered sepa- rately. NOTICE: This relay module uses Subdevice Addressing and thus differs from other relay modules. Other start address boards than the special version 3006P-SD or 3008P-SD cannot be used.The 5202R-EP can be basically operated in two different modes of operation: 1. -
Page 7: Dmx Personality
DMX Personality The DMX Personality defines the mode of operation and can be used to set the relay trigger levels. Relays get engaged as soon as the upper trip level is exceeded, and are set to OFF as soon as the control signal is lower than the the lower trip level. - Page 8 (simply set the "9xx" digit). This will re-enable switches, yellow RDM LED goes to OFF. DMX RDM Properties The 5202R-EP is fully compliant to DMX RDM Standard ANSI E1-20 V1.0. The device will be iden- tified as DMX RELAY in CONTACTORS category and can be configured to four modes of opera- tion (DMX PERSONALITY).
- Page 9 Table of RDM commands for 5202R-EP Mk1 The following PID descriptions discuss specific options for the 5202R-EP. For standard RDM PIDs, pls refer to the RDM manual, available from www.manuals.soundlight.de. All notations refer to data presented in hexadecimal format and examples are demonstrated with the JESE GET/SET RDM controller software.
- Page 10 PIDC0F0: MONOSTABLE TIME Setting the monostable pulse duration The relays used in the 5202R-EP work in bistable mode; that is: when (and as long as) triggered, they remein in active state. the function cen be reverted to monostable mode (pulse con- tact mode), and the contact closure time can be set using the function C0F0.
- Page 11 PIDC0E0: DMX DATA POLARITY Trigger flank for monostable oparation By default the monostable action will be triggered by the posi- tive input flank (0% -> 100%). The flank can be inverted to trigger from the relasing flank (100% -> 0%). Syntax is similar to the previous command Parameter: <Slot number>...
- Page 12 Thus, a safe an reliable switching insensitive to data noise can be guaranteed. In Fast Mode, each incoming DMX data telegram triggers the outputs immediately. This is called the FAST MODE, which is fast acting, but less tolerant to signal noise.
-
Page 13: Limited Warranty
Calculation: 2 seconds is 80x 25ms, 80(dec) is 50 hex ($50). Most RDM controllers require values to be entered in hex format. More RDM Info For more information on DMX RDM pls check the web pages of the DMX RDM protocol group (www.rdmprotocol.org), or visit: www.rdm.soundlight.de Disturbances If a trouble-free operation cannot be guaranteed, disconnect the relay card interface and secure it against unwanted operation. -
Page 14: Fcc Statement
- misuse. CE Conformity This DMX relay card is microprocessor controlled and uses high frequency (8 MHz quartz). The interface has been tested in our EMC lab to comply with EN55015. To ensure the best performance regarding radiated and conducted emissions we suggest to install the interface in a closed, conductive (e.g. -
Page 15: Product Info
SOUNDLIGHT is a WEEE registered company (Reg No. DE58883929). Service There are no parts within the DMX relais card 5202R-EP which require the user's attention. Should your unit require servicing, please send it to the factory, freight paid. Product Info...
