Solstice Home Resort Series Instructions

Your new Solstice Home Resort Series product features the "Insta-flate" system. This
system allows you to quickly and easily inflate and deflate your float. The system
combines our "19020AC InstaFlator" (4)"D" Cell battery operated pump with our
"InstaValve". The "InstaFlator" inflator / deflator features nozzle adapters which will
connect to any of the 2 different valves on your float and can be used on many other
inflatable products as well.

INFLATION

To inflate your float, you'll need the inflator provided or an inflator such as a bellows
foot pump, hand pump, electric inflator or any other inflator designed for air beds,
inflatable boats, rafts, pool floats, mattresses, and other low pressure inflatables.
Do not use an air compressor. It will damage your float.
For convenience, your new float features 2 types of valves: a smaller, "push-in" valve
and the large "InstaValve". Inflation and deflation can be done with either of the 2
valves. If you use any other type of inflator, inflation usually must be done through the
smaller "push-in" valve. Be sure to close the valve you are not using during inflation.
1. Remove the cap from the InstaValve. The diaphragm inside the valve is designed
to allow air to flow in and not out. Push the nozzle from the inflator (marked on
the pump as "Inflate") in to the valve.
2. Inflate the float until it is firm and all wrinkles are gone and then screw on the
cap.
3. Use the push-in valve for other pumps, if necessary and follow the same
guidelines.
SOLSTICE
HOME RESORT
INSTRUCTIONS

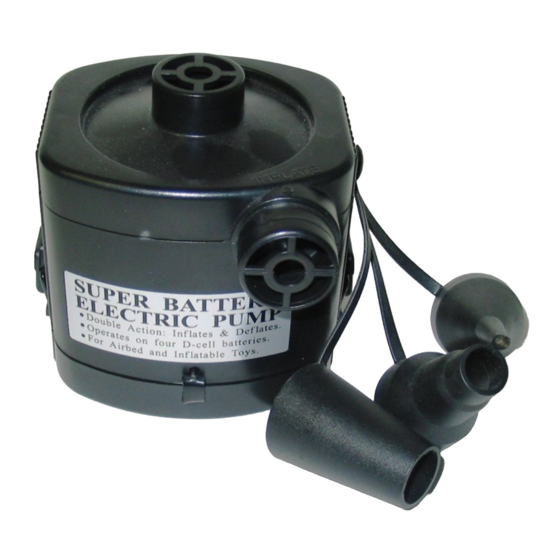

19020AC InstaFlator & Adapters
®
SERIES
™
