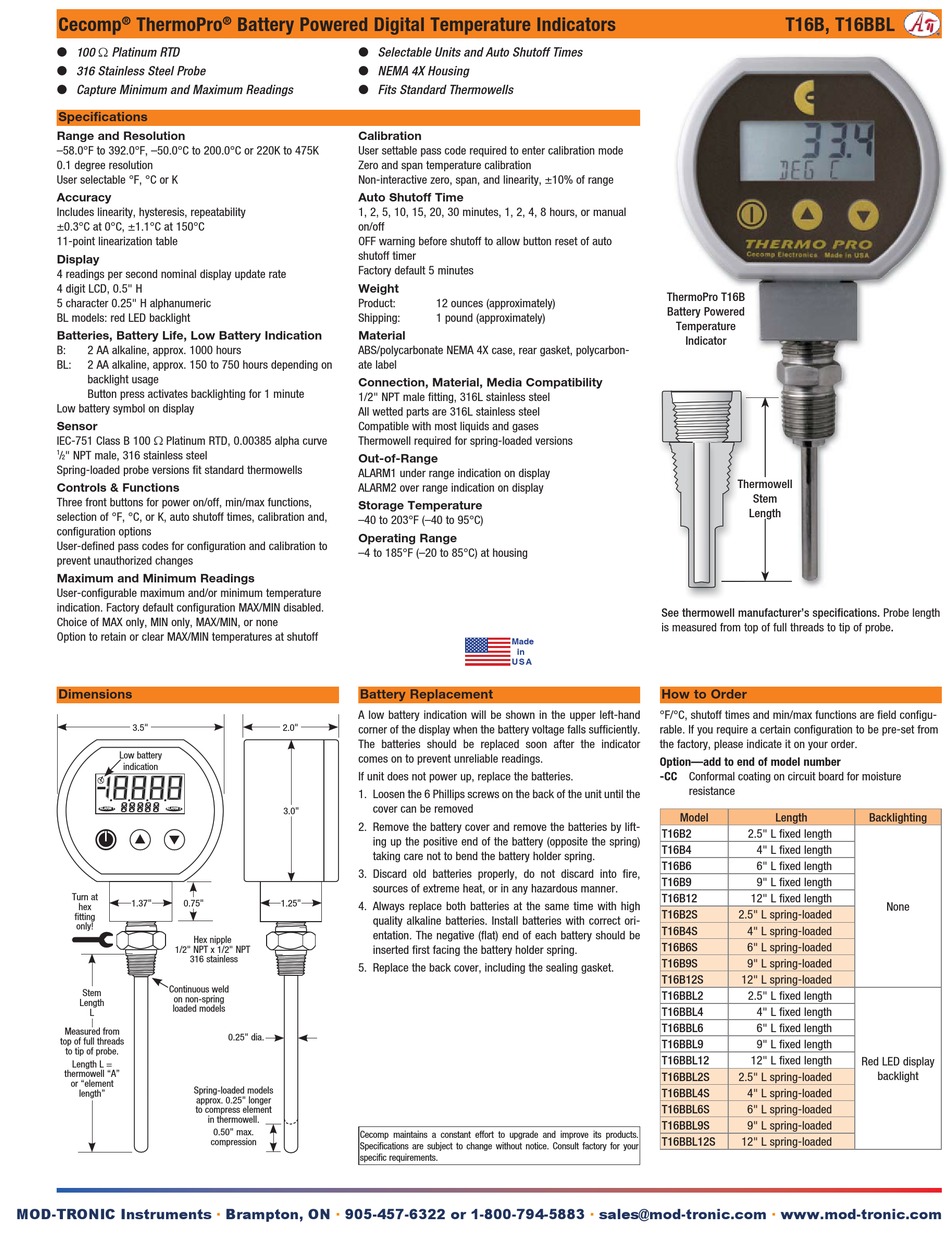

Mod-tronic Cecomp ThermoPro T16B Series Instructions

®
Cecomp ThermoPro
 100  Platinum RTD
 316 Stainless Steel Probe
 Capture Minimum and Maximum Readings
Specifications
Range and Resolution
–58.0°F to 392.0°F, –50.0°C to 200.0°C or 220K to 475K
0.1 degree resolution
User selectable °F, °C or K
Accuracy
Includes linearity, hysteresis, repeatability
±0.3°C at 0°C, ±1.1°C at 150°C
11-point linearization table
Display
4 readings per second nominal display update rate
4 digit LCD, 0.5" H
5 character 0.25" H alphanumeric
BL models: red LED backlight
Batteries, Battery Life, Low Battery Indication
B: 2 AA alkaline, approx. 1000 hours
BL: 2 AA alkaline, approx. 150 to 750 hours depending on
backlight usage
Button press activates backlighting for 1 minute
Low battery symbol on display
Sensor
IEC-751 Class B 100  Platinum RTD, 0.00385 alpha curve
1 / " NPT male, 316 stainless steel
2
Spring-loaded probe versions fit standard thermowells
Controls & Functions
Three front buttons for power on/off, min/max functions,
selection of °F, °C, or K, auto shutoff times, calibration and,
configuration options
User-defined pass codes for configuration and calibration to
prevent unauthorized changes
Maximum and Minimum Readings
User-configurable maximum and/or minimum temperature
indication. Factory default configuration MAX/MIN disabled.
Choice of MAX only, MIN only, MAX/MIN, or none
Option to retain or clear MAX/MIN temperatures at shutoff
Dimensions
3.5"
Low battery
indication
88888
X X X X X
ALARM 1 ALARM 2


Turn at
1.37" 0.75"
hex
fitting
only!
Hex nipple
1/2" NPT x 1/2" NPT
316 stainless
Continuous weld
Stem
on non-spring
Length
loaded models
L
Measured from
top of full threads
to tip of probe.
Length L =
thermowell "A"
or "element
Spring-loaded models
length"
approx. 0.25" longer
to compress element
MOD-TRONIC Instruments
®
Battery Powered Digital Temperature Indicators
 Selectable Units and Auto Shutoff Times
 NEMA 4X Housing
 Fits Standard Thermowells
Calibration
User settable pass code required to enter calibration mode
Zero and span temperature calibration
Non-interactive zero, span, and linearity, ±10% of range
Auto Shutoff Time
1, 2, 5, 10, 15, 20, 30 minutes, 1, 2, 4, 8 hours, or manual
on/off
OFF warning before shutoff to allow button reset of auto
shutoff timer
Factory default 5 minutes
Weight
Product:
Shipping:
Material
ABS/polycarbonate NEMA 4X case, rear gasket, polycarbon-
ate label
Connection, Material, Media Compatibility
1/2" NPT male fitting, 316L stainless steel
All wetted parts are 316L stainless steel
Compatible with most liquids and gases
Thermowell required for spring-loaded versions
Out-of-Range
ALARM1 under range indication on display
ALARM2 over range indication on display
Storage Temperature
–40 to 203°F (–40 to 95°C)
Operating Range
–4 to 185°F (–20 to 85°C) at housing
Battery Replacement
A low battery indication will be shown in the upper left-hand
2.0"
corner of the display when the battery voltage falls sufficiently.
The batteries should be replaced soon after the indicator
comes on to prevent unreliable readings.
If unit does not power up, replace the batteries.
1. Loosen the 6 Phillips screws on the back of the unit until the
cover can be removed
3.0"
2. Remove the battery cover and remove the batteries by lift-
ing up the positive end of the battery (opposite the spring)
taking care not to bend the battery holder spring.
3. Discard old batteries properly, do not discard into fire,
sources of extreme heat, or in any hazardous manner.
1.25"
4. Always replace both batteries at the same time with high
quality alkaline batteries. Install batteries with correct ori-
entation. The negative (flat) end of each battery should be
inserted first facing the battery holder spring.
5. Replace the back cover, including the sealing gasket.
0.25" dia.
in thermowell.
0.50" max.
Cecomp maintains a constant effort to upgrade and improve its products.
compression
Specifications are subject to change without notice. Consult factory for your
specific requirements.
· Brampton, ON · 905-457-6322 or 1-800-794-5883
Division of
BSOLUTE ROCESS NSTRUMENTS, Inc.
12 ounces (approximately)
1 pound (approximately)
Quick Link
cecomp.com/thermopro
★ ★ ★ ★ ★ ★
Made
★ ★ ★ ★ ★
★ ★ ★ ★ ★ ★
★ ★ ★ ★ ★
★ ★ ★ ★ ★ ★
★ ★ ★ ★ ★
★ ★ ★ ★ ★ ★
★ ★ ★ ★ ★ in
★ ★ ★ ★ ★ ★
U S A
· sales@mod-tronic.com
1220 American Way Libertyville, IL 60048
Phone: 800-942-0315
T16B, T16BBL

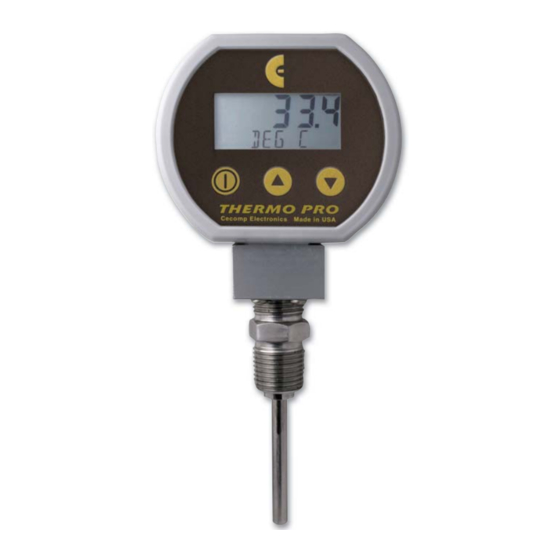

ThermoPro T16B
Battery Powered
Temperature
Indicator
Th Thermowell
Stem
Length
See thermowell manufacturer's specifications. Probe length
is measured from top of full threads to tip of probe.
How to Order
°F/°C, shutoff times and min/max functions are field configu-
rable. If you require a certain configuration to be pre-set from
the factory, please indicate it on your order.
Option—add to end of model number
-CC Conformal coating on circuit board for moisture
resistance
Model Length
T16B2 2.5" L fixed length
T16B4 4" L fixed length
T16B6 6" L fixed length
T16B9 9" L fixed length
T16B12 12" L fixed length
T16B2S 2.5" L spring-loaded
T16B4S 4" L spring-loaded
T16B6S 6" L spring-loaded
T16B9S 9" L spring-loaded
T16B12S 12" L spring-loaded
T16BBL2 2.5" L fixed length
T16BBL4 4" L fixed length
T16BBL6 6" L fixed length
T16BBL9 9" L fixed length
T16BBL12 12" L fixed length
T16BBL2S 2.5" L spring-loaded
T16BBL4S 4" L spring-loaded
T16BBL6S 6" L spring-loaded
T16BBL9S 9" L spring-loaded
T16BBL12S 12" L spring-loaded
© 10-11
· www.mod-tronic.com
cecomp.com
Fax: 800-949-7502
Backlighting
None
Red LED display
backlight
