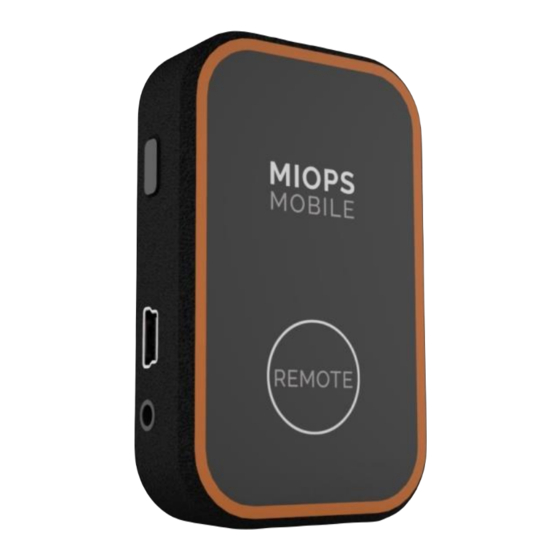

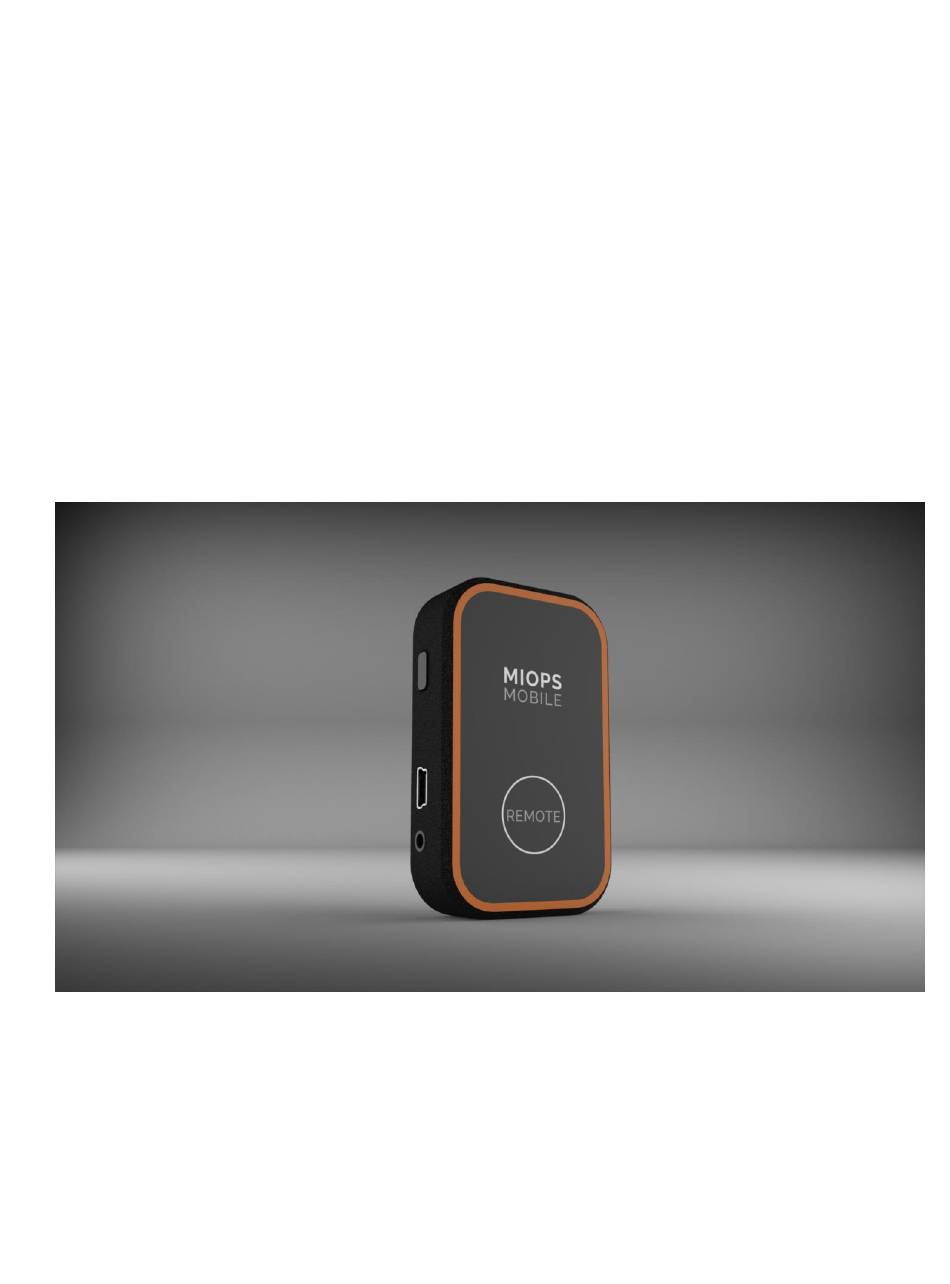

- Page 1 MIOPS MOBILE REMOTE Users Manual V0.6...
-
Page 2: Table Of Contents
Installing the App ..........................7 Connection Type ..........................8 User Interface ............................ 11 Firmware Upgrade ..........................13 Modes of MIOPS Mobile Remote ......................14 Cable Release ............................ 14 Press & Hold ............................14 Press & Lock ............................14 Timed Release ........................... 14 Self Timer ............................ -
Page 3: Introduction
The device is supported with a smartphone app. The app is available on AppStore and Google Play Store. You can download and install it for free. The name of the app is “MIOPS MOBILE”. The app enables you to switch between different modes and adjust the parameters of the modes. MIOPS... -
Page 4: Getting Started
MIOPS MOBILE Remote User Manual 2. Getting Started a. Technical Specifications Model Name: MIOPS Mobile Remote Dimensions: 27 mm x 17 mm x 63 mm Weight: 77 grams Battery: 250 mAh Li-Polymer Connectivity: Bluetooth 4.0 1. USB Port 2. Camera Connection Port 3. -
Page 5: Package Content
MIOPS Mobile for at least two hours before the first use. MIOPS Mobile Remote has no user serviceable parts inside. If you think that there is a problem with your unit, do not dissemble it. This will void your warranty. In such a case, contact your point of sale to get customer assistance. -
Page 6: Visual Aids
MIOPS MOBILE Remote User Manual d. Visual Aids MIOPS Mobile Remote has some visual aids to provide functional status information to the user. These aids will help you to quickly understand the status of your device. Here is the list of visual aids associated with different function: ... -
Page 7: Miops Mobile App
Android devices. You can download the app from AppStore and Google PlayStore with the name “MIOPS Mobile”. If you cannot find the app in the market, it is probably due to your device being not compatible with the app requirements. -
Page 8: Connection Type
Connection Type MIOPS Mobile Remote requires you to create a user account and to login to use the app. You can create an account over the app right away. Once you run the app for the first time, it will ask you whether you have a user account or not. - Page 9 MIOPS MOBILE Remote User Manual Once you successfully connect to the MIOPS Mobile Remote, the Menu screen will appear. On top left of the screen, you will see a small icon which indicates the current type of the connection. If there is a successful Bluetooth connection between your smartphone and MIOPS Mobile Remote, you will see a Bluetooth icon with a green check on it.
- Page 10 Language: The app will be available in several languages. You can use the app in one of the available languages. The default language of the app is English. Buy Now: This link will take you to the web site of MIOPS products, where you can buy MIOPS products, see product specifications and much more.
-
Page 11: User Interface
MIOPS MOBILE Remote User Manual c. User Interface The user interface is built on several widgets, which allow you to change parameters and values easily. You can change the values of parameters by using the touch screen of your smartphone. - Page 12 MIOPS MOBILE Remote User Manual If a mode has parameters to be set, the action button will have a notch on top. This means, you cannot start the mode running until you set the parameters and then pull the “curtain” down by holding the notch and then pulling it down.
-
Page 13: Firmware Upgrade
MIOPS MOBILE Remote User Manual d. Firmware Upgrade MIOPS Mobile Remote has “Firmware Upgrade over the Air” capability. In other words, you don’t need to make any cable connection to complete the firmware upgrade. You can follow these steps to complete the firmware upgrade of your MIOPS Mobile Remote. -
Page 14: Modes Of Miops Mobile Remote
4. Modes of MIOPS Mobile Remote In this section, we will explain you how to use the different modes of MIOPS Mobile Remote. You can select the desired mode using the smartphone app. Once you adjust the parameters and start the mode running, MIOPS Mobile Remote will take care of the rest. -
Page 15: Self Timer
MIOPS MOBILE Remote User Manual IMPORTANT NOTE: The cable release modes are designed to work in the BULB mode. This is the only mode, where you can get custom exposure through the shutter release port. If you do not put your camera in to BULB mode, all pictures will have the same exposure or the camera will take multiple pictures. -
Page 16: Basic Timelapse
MIOPS MOBILE Remote User Manual g. Basic Timelapse The Basic Timelapse mode offers to take time lapse pictures automatically without changing the exposure. It has two parameters; Interval and Frame. The Interval parameter defines the duration between each frame. The Interval can have a value from 13 milliseconds up to 100 hours. -
Page 17: Bulb Ramping Timelapse
MIOPS app. Once you start the Long Exposure mode, you can take your smartphone away. MIOPS Mobile Remote will be able to complete the whole process without needing your smartphone. - Page 18 The Interval parameter defines how long to wait between each frame. Once a time lapse picture has been taken, MIOPS will wait for the duration of the interval to take the next picture. The process will continue until the set frame number is reached.
-
Page 19: Road Lapse
MIOPS MOBILE Remote User Manual j. Road Lapse The Road Lapse mode uses the GPS data from your smartphone. It takes a picture automatically each time you pass the set distance with your vehicle. The distance unit can be either Meters or Feet. You can set the distance unit under the Settings menu. -
Page 20: Hdr Mode
MIOPS MOBILE Remote User Manual l. HDR Mode The HDR mode will take pictures with different exposures automatically, so you can later combine them to make an HDR picture. This mode is based on three parameters. These are Center, EV(+-) and Frame. -
Page 21: Sound Mode
MIOPS MOBILE Remote User Manual Example: Let’s assume that the Center value has been selected as 1/15 sec. In this case, the EV(+-) value ‘2’ will be disabled, as the shutter cannot go two stops down from 1/15 sec. Similarly, if you select the EV(+-) as ‘1’ for the same the center value, the Frame values ‘5’... -
Page 22: Vibration Mode
If you don’t want this to happen, you can select the “Single Shot” mode. In this mode, MIOPS Mobile will trigger the camera only once, and then it will stop. You will need to start the vibration mode running again to take another picture. - Page 23 MIOPS Mobile will trigger the camera for so many times defined with the Frame parameter. You can set the frame the number all the way up to 99999. If you set it to “Zero”, MIOPS Mobile will keep taking pictures for ever.
-
Page 24: Scenario Mode
MIOPS MOBILE Remote User Manual p. Scenario Mode The scenario mode is the most advanced mode of MIOPS Mobile. It gives you the total freedom of choosing which data and parameters to use to create your own unique trigger scenario. - Page 25 MIOPS MOBILE Remote User Manual If you want to delete a step completely, you can swipe the step to the left and a “Delete” button will appear. If you touch the button a confirmation screen will pop up. If you really want to delete the step, touch ‘Delete’...
-
Page 26: Troubleshooting
I cannot find and download the MIOPS Mobile app. The MIOPS Mobile app will only show up on App Store or Google Play Store, if your device meets the criteria. Otherwise, you will not be able to download the MIOPS Mobile app. The minimum versions are iOS 8.0 and Android 4.3.
