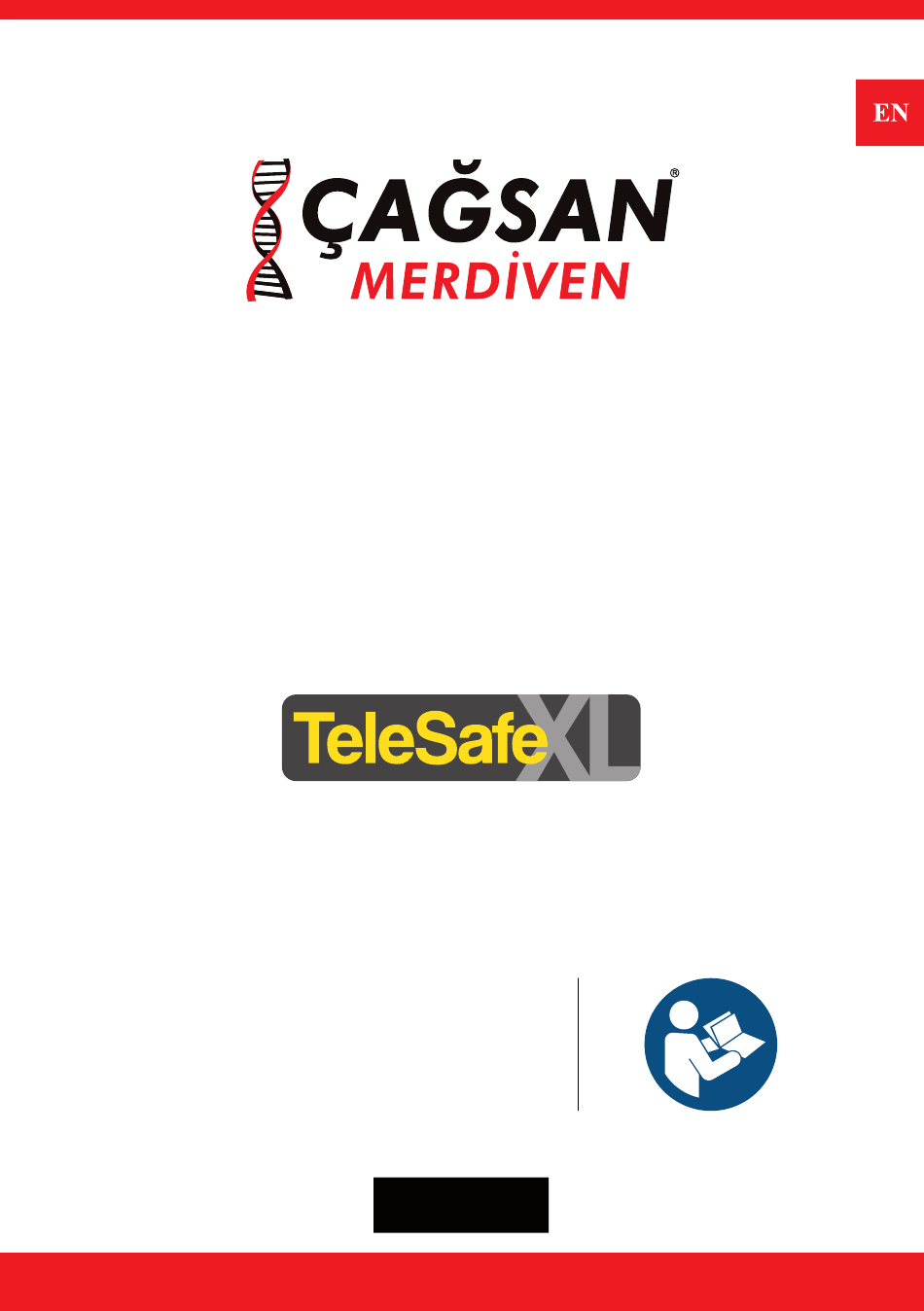

- Page 1 Assembly and user manual TELESAFE S-XL SCAFFOLDING SYSTEMS The instructions for the assembly and use shall be followed carefully EN1004 202003-IE-1230 www.cagsanmerdiven.com...
-
Page 2: Table Of Contents
1. Introduction......................3 2. General ....................... 3 2.1 Usage ....................... 3 2.2 Necessary Additional Instructions for Usage of TeleSafe S-XL Scaffolds ..4 2.3 Adjusting the height of TeleSafe Scaffoldings..........5 2.4 Check List for Usage of TeleSafe S-XL Scaffold..........5 2.5 Examination, Storage and Maintenance ............ -
Page 3: Introduction
This assembly and usage hand book is job shall be able to reach this handbook. prepared for the usage of Double Part Scaffolds (Telesafe S-XL) which will be Only original Çağsan Merdiven parts referred to as TeleSafe Scaffolds together should be used for assembly. -
Page 4: Necessary Additional Instructions For Usage Of Telesafe S-Xl Scaffolds
with wind speed more than 38 km/h by wind such as open constructions, (max. 6 Beaufort) building corners etc. Scaffold usage • TeleSafe Scaffolds should not be used should be stopped under wind powers with storm, snow, ice, excessive rain that exceed 38 km/h (max. -
Page 5: Adjusting The Height Of Telesafe Scaffoldings
b) Lowering the scaffold using trapdoor to access on the plat- form. (Diagram 6.) 1. Pull the rope down untill the lat- • The height of TeleSafe Scaffoldings ch system is drifted away from the can be adjusted by two people opera- step(C) Stop when the latch system is ting the rope system at the same time. -
Page 6: Examination, Storage And Maintenance
sunshades, electricity cables above, • All parts should be checked for da- traffic and/or the people crossing the mages. Damaged or unsuitable parts road etc. shall not cause danger. should not be used. • The area necessary to assemble and •... -
Page 7: Assembly And/Or Repair Of Spare Parts
• Environmental factors such as the shall be under the guarantee with the fol- previously opened doors, windload, lowing conditions: shades, automatically used sunsha- des, electricity cables above, traffic 4. Çağsan Merdiven guarantees the reli- and/or the people crossing the road ability of the product and the quality etc. -
Page 8: Connecting The Q-Lock System
Çağsan Merdiven requested a free repair or replacement of the product before the examination, the expenses shall belong to the customer again. 2.10 Connecting the Q-Lock System The horizontal and cross-links with the Don’t lift the Wheels off the ground. Q-Lock system should be fi tted to the sta- (Diagram 14) ir step holes with the metal lock facing... -
Page 9: Labels Used On Telesafe Scaffolding System
2.14 Labels Used on Telesafe Scaffolding System UYARI ! S004 XL İSKELELERİ ŞEKİLLERE UYGUN KULLANINIZ USE THE SCAFFOLDINGS AS SHOWN AT THE PICTOGRAMS VERWENDEN SIE DAS MOBILGERÜST WIE IN DEN PIKTOGRAMMEN ANGEGEBEN *Montaj ve kullanım tal matları d kkatl ce tak p ed lmel d r. İk Parçal İskele XL *The nstruct ons for the assembly Double Part Sca old ng XL... -
Page 10: Telesafe Scaffold System Compounds
www.cagsanmerdiven.com... -
Page 11: Telesafe S-Xl Scaffold Configuration Table
2.16 TeleSafe Scaffold System Configuration Table S004XL S005XL S006XL S007XL S008XL Platform Height (m.) 2,75 3,83 4,42 5,23 6,05 Working Height (m.) 4,55 5,63 6,22 7,03 7,85 Weight Pieces Description Code (kg.) S004XL S005XL S006XL S007XL S008XL 8 Steps Extension Ladder S004XLMTK 10,7 10 Steps Extension Ladder... -
Page 12: Telesafe S-Xl Aluminum Scaffold System Assembly Method
3. TeleSafe Scaffold Assembly Method 3.1 TeleSafe S004 XL Scaffold Assembly Method (Figure-1) Insert the 2 piece bonding profiles into their places. Screw the bakalite bolts (clockwise rotation) by hand untill they are fully placed.(Figure-2) nstert the aluminium ladders (narrow ones opposingly and the wide ones ones opposingly) into the canals on the chassis. - Page 13 (Figure-5) Fix and lock braces (2x205 cm.) on both sides with Q-Lock system into the (Figure-6) step holes of narrow extensional ladders (first step to fifth step) Fix and lock horizontal braces (6x171 cm.) with Q-Lock system into the rung holes of narrow exten- sional ladders.
-
Page 14: Telesafe S005Xl Scaffold Assembly Method
3.2 TeleSafe S005XL Scaffold Assembly Method (Figure-1) Insert the 2 piece bonding profiles into their places. Screw the bakalite bolts (clockwise rotation) by hand untill they are fully placed. (Figure-2) nstert the alumini- um ladders (narrow ones opposingly and the wide ones ones opposingly) into the canals on the chassis. - Page 15 (Figure-5) Fix and lock diagonal braces (2x205 cm) on both sides with Q-Lock system into the step holes of narrow extensional ladders (third step to seventh step) (Figure-6) Fix and lock horizontal braces (2x171 cm.) with Q-Lock system into the step holes of narrow extensional ladder (to the first steps of the opposite ladders) (Figure-7)
-
Page 16: Telesafe S006-Xl Scaffold Assembly Method
3.3 TeleSafe S006 XL Scaffold Assembly Method (Figure-1)Insert the 2 piece bonding profiles into their places. Screw the bakalite bolts (clockwise rotation) by hand untill they are fully placed.(Figure-2) nstert the aluminium ladders (narrow ones opposingly and the wide ones ones opposingly) into the canals on the chassis (Figure-3) Screw the bakalite bolts (clockwise rotation) by hand untill they are fully... - Page 17 (Figure-5) Fix and lock diagonal braces (2x205 cm.) on both sides with Q-Lock system into the step holes of narrow extensional ladders (third step to seventh step) (Figure-6) Fix and lock horizontal braces (2x171 cm.) with Q-Lock system into the step holes of (Figure-7) narrow extensional ladders (to the first step of the opposite ladders) Fix and...
-
Page 18: Telesafe S007-Xl Scaffold Assembly Method
3.4 TeleSafe S007 XL Scaffold Assembly Method (Figure-1) Insert the 2 piece bonding profiles into their places. Screw the bakalite bolts (clockwise rotation) by hand untill they are fully placed.(Figure-2) nstert the aluminium ladders (narrow ones opposingly and the wide ones ones opposingly) into the canals on the chassis. - Page 19 (Figure-5) Fix and lock diagonal braces (2x205 cm.) on both sides with Q-Lock system (Figure-6) into the step holes of narrow extensional ladders (sixth step to tenth step) Place the second platform on the red safe step.(Figure-7) Fix and lock short horizontal braces (2x171cm.) with Q-Lock system into the step holes of narrow extensional lad- ders (between third steps for mutual attachment) (Figure-8)
-
Page 20: Telesafe S008-Xl Scaffold Assembly Method
3.5 TeleSafe S008 XL Scaffold Assembly Method (Figure-1) Insert the 2 piece bonding profiles into their places. Screw the bakalite bolts (clockwise rotation) by hand untill they are fully placed.(Figure-2) nstert the aluminium ladders (narrow ones opposingly and the wide ones ones opposingly) into the canals on the chassis. - Page 21 (Figure-5) Fix and lock short diagonal braces (2x205 cm.) on both sides with Q-Lock system into the step holes of narrow extensional ladders (eighth step to twelfth step) (Figure-6) Place the second platform on the red step. (Figure-7) Fix and lock short hori- zontal braces (8x171 cm.) with Q-Lock system into the step holes of narrow extensional ladders fourth,fifth,sixth and thirteenth, fourteenth, fifteenth step by mutual connection)
-
Page 22: Telesafe S-Xl Aluminum Scaffold System 3D Images
www.cagsanmerdiven.com... - Page 23 www.cagsanmerdiven.com...
- Page 24 ©2018 All rights reserved. Without the written consent of Çağsan Merdiven, all or any part of this document may be printed or copied. Cagsan Merdiven ve Erisim Ekipmanlari San. Tic. Ltd. Sti. Gebze Factory Dilovasi Organize Sanayi Bolgesi 3. Kisim , Meric Cad. No: 1 Muallim Koyu, Gebze - Kocaeli / TURKEY Balıkesir Factory...
