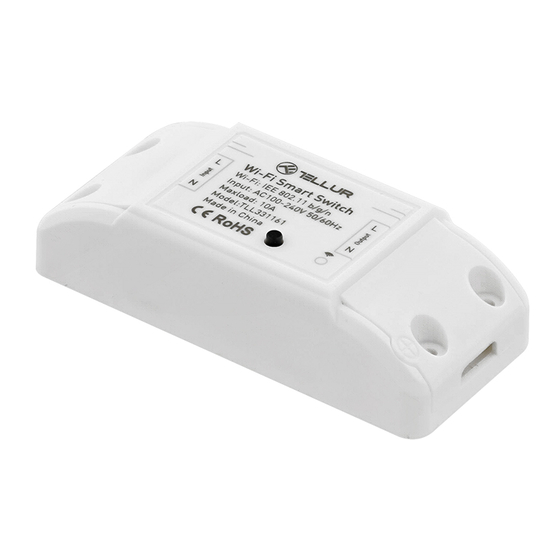

- Page 1 WiFi Inline Switch TLL331161 User manual for other languages please visit www.smart.tellur.com...
-
Page 2: Product Diagram
Manual switch Specifications Input voltage: AC100-240V Max current: 10A Max power: 2200W Remote control: Yes, using Tellur Smart app Wireless frequency: 2.4GHz WiFi standard: IEEE 802.11b/g/n Security: WPA-PSK/ WPA2-PSK /WPA/WPA2/WEP/WPS2/WAPI Encryption type: WEP/TKIP/AES Compatibility: Devices with Android 4.1 / iOS 8 or higher... -
Page 3: Led State
LED State Device Status LED State EZ mode Indicator flashes quickly AP mode Indicator flashes slowly Triggered LED indicator will rapidly blink, and it will turn OFF after the scheduled time Suspend mode LED indicator is off LED indicator lights up for 4 seconds and after 2 seconds, the lights will Reset turn off;... -
Page 4: Product Features
Product features Experience the various advanced features of this product using Tellur Smart app. Main function Universal switch gives smart features to non-smart devices; Supports remote control via Tellur Smart app; Voice control via Google Assistant and Amazon Alexa; Fully customizable with schedule and timer functions, automation and smart scenarios. -
Page 5: Product Installation
3. To avoid wiring damage or abrasion, do not expose the wire to edges of metal or other sharp objects. Download and install the Tellur Smart app for either iOS or Android devices. Once downloaded, the app will ask you to register your device. - Page 6 Adding a New Device • Turn on power of device being paired and make sure light is flashing quickly. • Open App and Click “+” to add appropriate device. • Select WiFi network and input password of WiFi then. • Once connected the App will prompt the connection, then you can rename the device or just click “done”...
- Page 7 Smart devices can be connected using two modes: EZ and AP. EZ represents the easiest way of connecting and enabling a smart device. You will need to have the device, active wireless network through with login password and Tellur Smart APP installed on a smartphone / tablet.
- Page 8 1. Make sure the LED indicator/light flashes slowly. 2. Tap "Add device" in Tellur Smart app and select "AP mode" from the top-right corner. Connect to the device's hotspot first and then proceed to connect it to the WiFi network.
- Page 9 Now you finish the Alexa Link. 6. Your Tellur App has been skilled with Alexa, and now you can control any device added to your Tellur Smart App, remember that if you rename the device you added, it must be a...
- Page 10 You have the Tellur Smart app and a related account. Add devices in Tellur Smart app (Refer to app instructions) You can skip this part if you've already added some devices’ to your Tellur Smart account, and in the meantime the devices names are easily recognizable.
- Page 11 1.Go to Google Home's homepage and tap "+". 2. Hit the "Add new" button, enter Tellur Smart in the search bar and select the app from the list. Next, select your Tellur Smart account's region, enter your Tellur Smart account and password and tap "Link now".
- Page 12 Now you can control your smart devices through Google Home. Take bedroom light as the example, the supported voice commands are as below: • Ok Google, turn on/off bedroom light. • Ok Google, set bedroom light to 50 percent. • Ok Google, brighten bedroom light. •...
- Page 13 DISPOSAL AND RECYCLING INFORMATION The crossed-out wheeled-bin symbol on your product, battery, literature or packaging reminds you that all electronic products and batteries must be taken to separate waste collection points at the end of their working lives; they must not be disposed of in the normal waste stream with household garbage.
- Page 14 Declaration of conformity We, ABN SYSTEMS INTERNATIONAL S.R.L., Bucharest, District 1, 31 Marinarilor street, we declare on own responsibility that the product below: Product description: Tellur WiFi Inline Switch, 2200W, white Brand: Tellur Product code: TLL331161 Manufacturer code: AP-SMT-Breaker02-1CH It does not endanger life, health, work safety, does not have a negative impact on the environ- ment and corresponds to the standards stated in the manufacturer's declaration of conformity.
- Page 15 EN 55032:2015+A1:2018 EN 55035:2017 EN 61000-3-2:2019 EN 61000-3-3:2013+A1:2019 RoHS – 2011/65/EU (RoHS 2.0) IEC 62321-4:2014+A1:2017, IEC 62321-5:2014, IEC 62321-7:2017 IEC 62321-6:2015, IEC 62321-8:2017 The product bears CE mark, applied in 2020 Place and date: Name: George Barbu Bucharest, 12-03-2020 Function: General manager Signed:...
