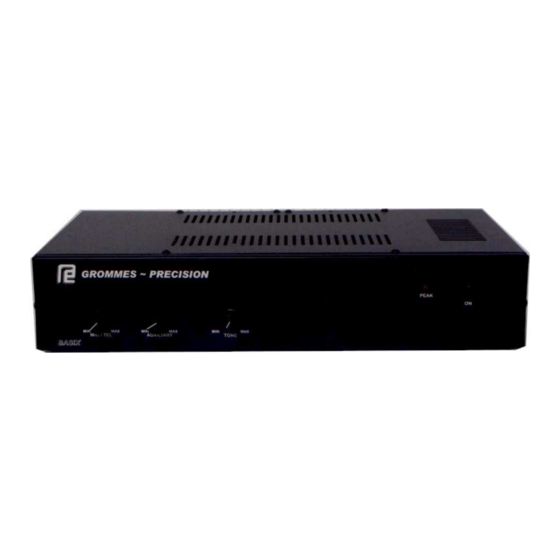

Grommes~Precision BASIX 60 Quick Start Manual

UNPACKING PROCEDURES

Grommes~Precision

Inspection

Precision Electronics
Inspect the shipping container and unit for indication of improper handling.
This unit was carefully checked and packed before leaving the factory. If the
unit has been damaged, make an immediate claim to the dealer or distributor
from whom it was purchased. If the unit was shipped to you, notify the trans-
portation company without delay, saving all packing materials, in order to
process the claim.

Performance Check

Continue the inspection by running a performance check. Connect a test
speaker to the voice coil (4-8 ohms) output terminals and a tuner, tape deck,
or CD player to the auxiliary input and set the controls for operation. CAU-
TION: TO PROTECT THE SPEAKERS FROM DAMAGE, DO NOT
TURN THE UNIT ON UNTIL ALL CONNECTIONS HAVE BEEN
MADE. IN ADDITION, MAKE SURE THE UNIT IS GROUNDED BE-
FORE TESTING. If the unit should be inoperable and no damage is noted,
please notify the factory at 800-746-2346 and ask for Technical Support.

INSTALLATION INFORMATION

Rack Mounting:

For best results use a 10-32 class UNF-2B or 12-24 class UNC-2B rack and
0.625 inch machine screws (metric: M5X8-6H or M6X1-6H, 15.88mm). It is
BASIX 60/125
recommended that the drive of these screws be phillips in order to protect the
finish from unnecessary scratches. Also recommended are nylon or plastic
washers which will not only help protect the finish but also aid in retaining
the screws. The feet must be removed from the unit to meet the 2 rack space
requirement. It is not necessary and not recommended to remove the hood
when removing the feet. Place the unit upside down and remove the screw
located in the center of each foot. The Basix 60 and 125 are rack mountable
with kit RP2U.

Ventilation:

This unit was designed for continuous operation. It is highly recommended to
give the vents of the unit adequate space. If multiple units are to be used in a
rack, fan cooling for the entire rack is strongly recommended.
Grommes~Precision
~3~ REV A
847-599-1799 800-SINCE-46 FAX: 847-599-6178
1331 Estes Ave. Gurnee, IL 60031 USA
www.grommesprecision.com
